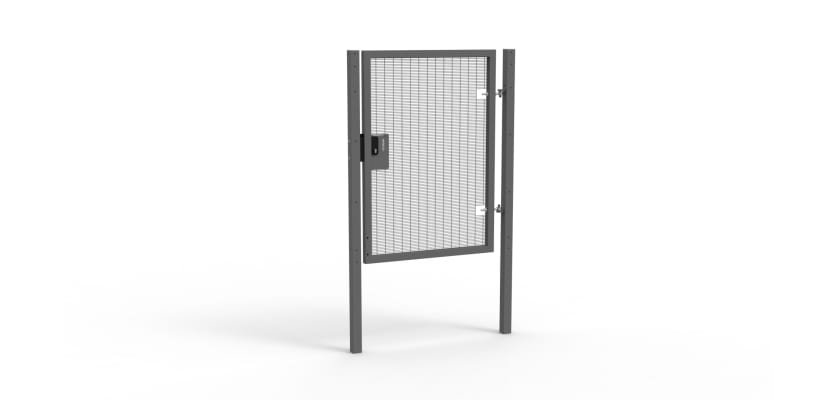

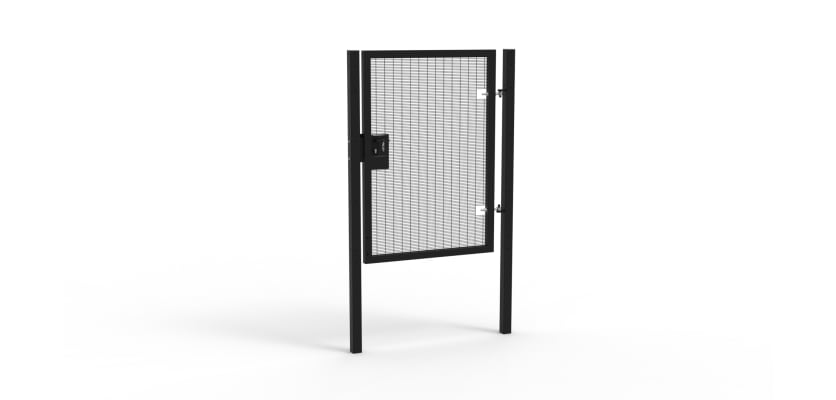

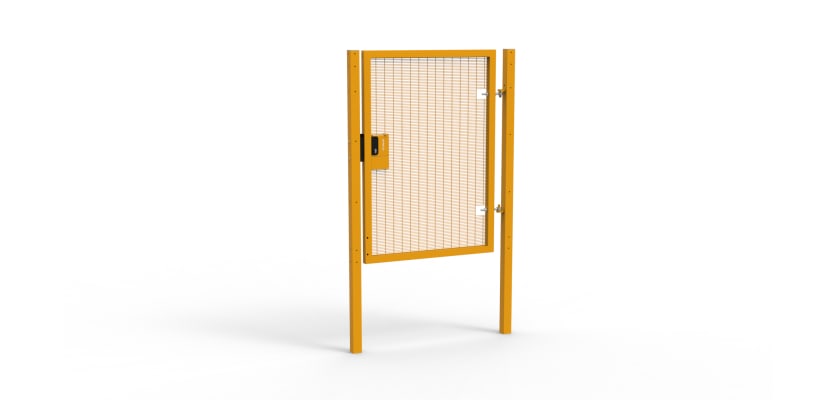

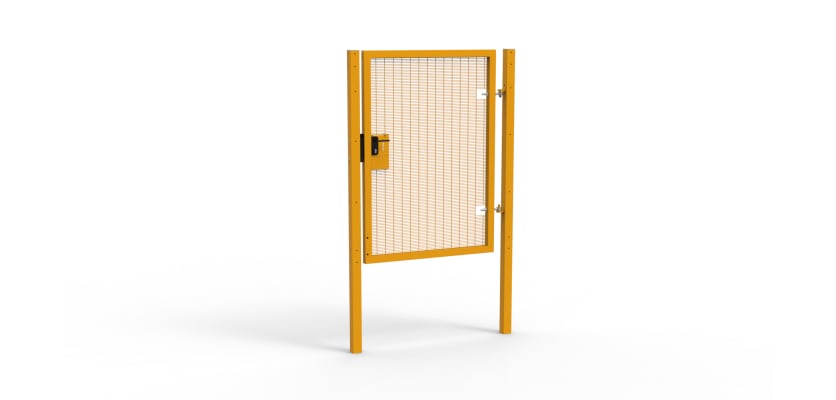

Apollo® 1.8m High x 1.2m Wide 358 Prison Mesh Pedestrian Gate Kit
Product Description
Apollo® 1.8m High x 1.2m Wide 358 Prison Mesh Pedestrian Gate Kit
The Apollo® 1.8m High x 1.2m Wide 358 Prison Mesh Pedestrian Gate Kit is a secure and practical solution for controlling foot access on your site. Designed to integrate seamlessly with matching 358 mesh fencing, it combines exceptional anti-climb properties with a durable, professional finish, making it ideal for locations where both safety and visibility are priorities.
This tight 358 mesh configuration makes climbing virtually impossible and prevents even fingertips from passing through, while still allowing excellent visibility for CCTV and security monitoring. Its strong welded construction also resists cutting and vandalism, making it a trusted choice for high-security applications.
Manufactured from high-quality pre-galvanised steel, the gate offers inherent rust and corrosion resistance. For added durability and visual appeal, it is finished with a Polyester Powder Coating (PPC), available in a choice of RAL colours. This smooth, even coating provides a second layer of protection against the elements, ensuring the gate maintains both its strength and appearance over time.
As part of its modular design, the Apollo® gate can be configured for universal handing, allowing it to open either left or right depending on site layout. Adjustable hinges make installation straightforward and allow for precise alignment during fitting. Pre-drilled holes in the posts make it easier to attach accessories or integrate additional security features.
This pedestrian gate is available with either bolt down posts, perfect for solid surfaces such as concrete, or dig-in posts, which are better suited to softer ground like clay or soil. Adjustable hinges make installation straightforward, allowing for precise alignment and smooth operation.
At 1.2 metres wide, the Apollo® pedestrian gate is ideal for creating dedicated walk-through points alongside vehicle access gates, helping to safely separate foot and vehicle traffic. Its robust frame and anti-climb mesh make it suitable for a range of environments, including schools, airports, commercial sites, transport hubs, police stations, and correctional facilities. For locations requiring moderate rather than maximum height security, its 1.8m profile provides effective access control without appearing overbearing.
For access control, the gate is supplied with a sliding latch bolt which can be secured using a heavy-duty padlock (available separately) or upgraded with a Gatemaster locking system for enhanced security. The locking mechanism ensures the gate remains securely closed when not in use while allowing easy opening for authorised personnel.
As part of the Apollo® fencing and gate range, this 358-mesh pedestrian gate is designed to work seamlessly with any of our mesh security fencing. When connecting to mesh fencing, additional fixings such as M8 x 40mm bolts and mesh clips may be required to achieve a secure and professional fit.
Combining anti-climb protection, high strength, and corrosion resistance, the Apollo® 1.8m High x 1.2m Wide 358 Prison Mesh Pedestrian Gate Kit is an excellent choice for any site where secure pedestrian access and controlled entry points are required. Its durability, professional finish, and compatibility with a variety of fencing systems make it a long-lasting and versatile security solution.
Contact Us
For further advice or assistance, our knowledgeable sales team is here to help. Contact us by phone on 01283 512 111, via email at sales@firstfence.co.uk, or through our online chat facility.
Specifications & Downloads
| Height Above Ground | 1800mm |
| Access Width | 1200mm |
| Total Width | 1490mm |
| Hinge Post Size | 80 x 80mm |
| Hinge Gap | 100mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Mesh Type | 358 Prison Mesh |
| Post Type | Square Hollow Section |
| Gate Type | Pedestrian Gate |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 2 |
| Ribbed Inserts for Posts | 2 |
| Unislide Single Slider Padlockable Gate Kit | 1 |
| Apollo Plate Kit | 1 |
| 1.8m Clamp Bar [30x5mm @ 1830mm] | 2 |
| M8 x 100mm Nuts and Bolts | 14 |
Specifications & Downloads
| Height Above Ground | 1800mm |
| Access Width | 1200mm |
| Total Width | 1490mm |
| Hinge Post Size | 80 x 80mm |
| Hinge Gap | 100mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Mesh Type | 358 Prison Mesh |
| Post Type | Square Hollow Section |
| Gate Type | Pedestrian Gate |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 2 |
| Ribbed Inserts for Posts | 2 |
| Unislide Single Slider Padlockable Gate Kit | 1 |
| Apollo Plate Kit | 1 |
| 1.8m Clamp Bar [30x5mm @ 1830mm] | 2 |
| M8 x 100mm Nuts and Bolts | 14 |
