Apollo® 1.8m High x 4.0m Wide 358 Prison Mesh Double Leaf Gate Kit
| Height Above Ground | 1800mm |
| Access Width | 4000mm |
| Total Width | 4430mm |
| Hinge Post Size | 100mm x 100mm |
| Hinge Gap | 100mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Post Type | Square Hollow Section |
| Gate Type | Double Leaf Gate |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 4 |
| Ribbed Inserts for Posts | 2 |
| Unislide Slider Padlockable Double Leaf Gate Kit | 1 |
| Apollo Plate Kit | 1 |
| Auto Locking Drop Bolt | 2 |

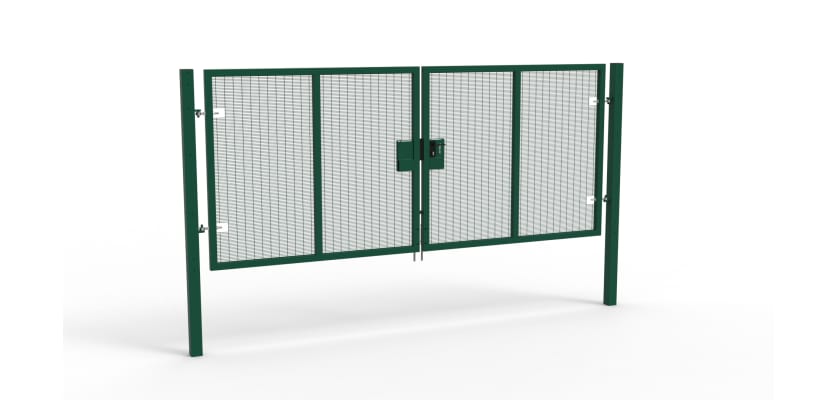

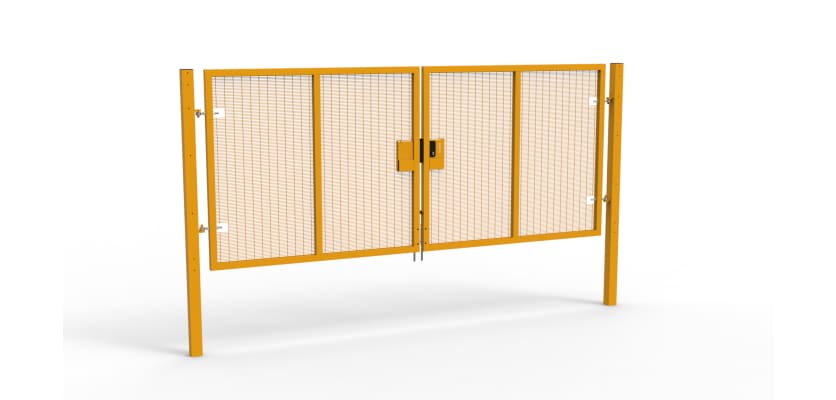

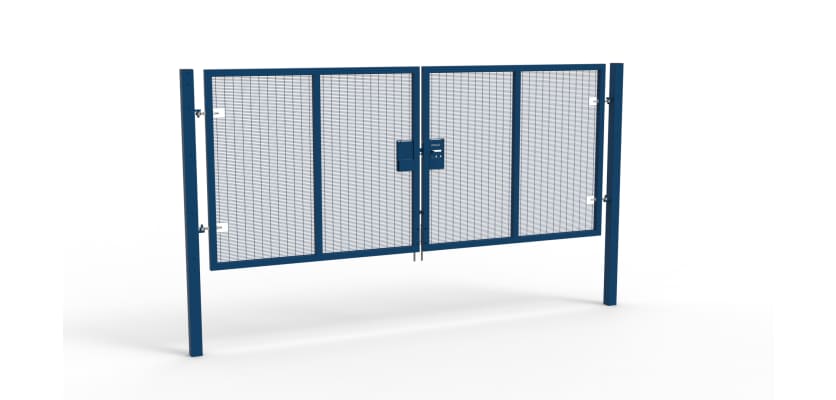

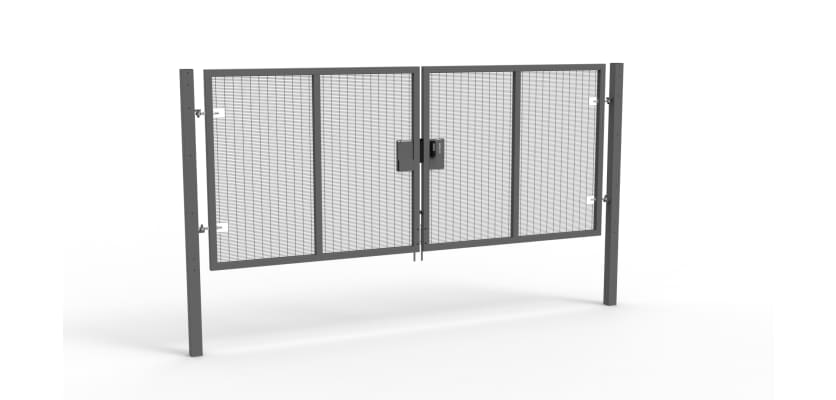

Apollo® 1.8m High x 4.0m Wide 358 Prison Mesh Double Leaf Gate Kit
The Apollo 1.8m x 4.0m Prison Mesh Double Leaf Gate Kit delivers a high-strength, visually appealing access point for sites where safety and controlled entry are key. Designed for environments such as educational campuses, parks, business premises, sports complexes, and industrial zones, this gate offers a perfect combination of performance and modern design.
Gate Dimensions and Layout Flexibility
Standing 1.8 metres tall with a total clear width of 4.0 metres (2.0m per gate leaf), this gate is ideal for managing both pedestrian flow and the movement of smaller vehicles like maintenance vans or utility carts. Each leaf can be hung on either side to suit your specific site layout, ensuring a flexible installation process.
Strong and Secure Mesh Design
The gate features Apollo’s trusted 358 wire mesh, which creates an effective anti-climb and anti-cut barrier that resists tampering and damage. The open mesh format maintains good visibility through the gate, ideal for monitored areas where passive surveillance is important.
Built for Long-Term Durability
Crafted from pre-galvanised steel conforming to BS EN 10346, and finished with a durable polyester powder coating to BS 13438, this gate offers excellent protection against corrosion and weathering. A wide selection of RAL colour options is available, allowing you to match the gate to your existing fencing or surrounding structures. Custom colours can also be provided upon request.
Secure Locking and Access Control
Supplied with a robust sliding latch as standard, this gate can be padlocked for general security needs. It is also compatible with digital access systems and quick-release exit devices, making it suitable for controlled or emergency-access areas. Drop bolts are included to hold either gate leaf securely in place, open or closed, adding extra stability in high-traffic or windy environments.
Professional Finish and Structural Integrity
The steel gate frame is designed with mitred corners for increased strength and a clean, professional appearance that fits seamlessly into modern fencing layouts. All components are engineered for durability while keeping the gate's appearance sharp and uniform.
Installation Options
This gate kit can be supplied with your choice of:
Dig-in posts: for installation in soft ground (requires post mix)
Bolt-down posts: for hardstanding areas such as concrete (requires ground anchor bolts)
Please note that post mix and anchor bolts are not included and should be purchased separately, depending on your installation type.
