Apollo® 1.8m High x 2.0m Wide 358 Prison Mesh Double Leaf Gate Kit
| Height Above Ground | 1800mm |
| Access Width | 2000mm |
| Total Width | 2390mm |
| Hinge Post Size | 80mm x 80mm |
| Hinge Gap | 100mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Post Type | Square Hollow Section |
| Gate Type | Double Leaf Gate |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 4 |
| Ribbed Inserts for Posts | 2 |
| Unislide Slider Padlockable Double Leaf Gate Kit | 1 |
| Apollo Plate Kit | 1 |
| Auto Locking Drop Bolt | 2 |

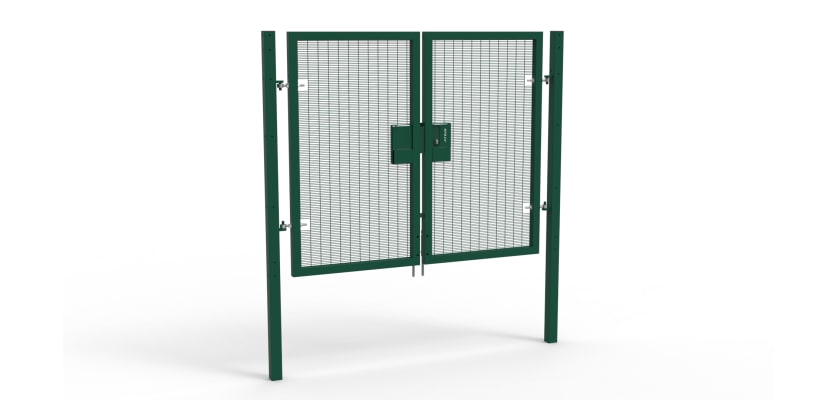

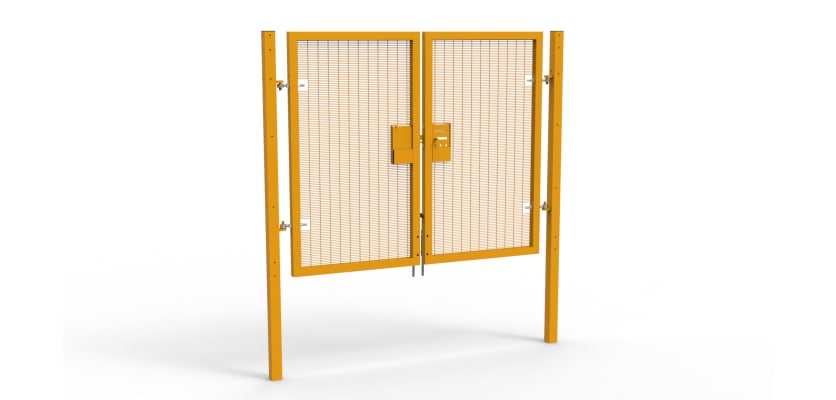

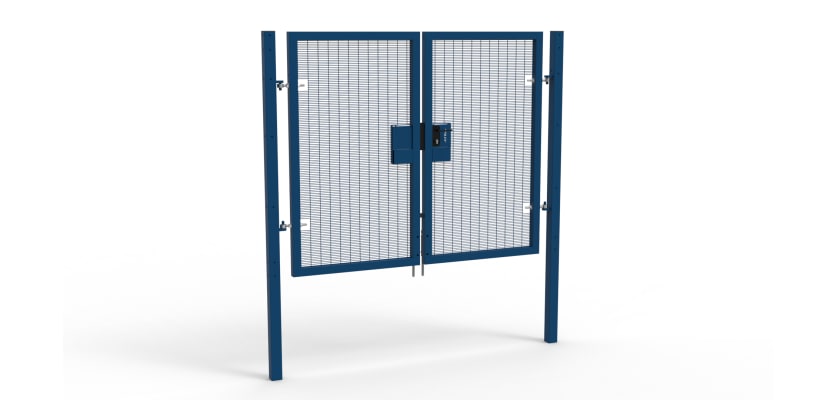

Apollo® 1.8m High x 2.0m Wide 358 Prison Mesh Double Leaf Gate Kit
The Apollo 358 Prison Mesh Gate Kit, measuring 1.8 metres in height and 2.0 metres in width, provides a compact yet robust security solution for areas requiring restricted access without the need for large vehicle entry. Ideal for schools, commercial properties, public facilities, sports venues, and recreation grounds, this double leaf gate delivers reliable protection while maintaining a clean, modern appearance.
Security and Accessibility
At 1.8m tall, this gate offers a strong visual and physical deterrent to unauthorised access. The 2.0m wide opening is ideal for pedestrian zones and areas with occasional small vehicle access. The double leaf design allows each gate leaf to open independently or together, giving you more control over how access is managed.
Durable Wire Mesh Design
This gate features Apollo’s proven 358 wire mesh configuration, constructed with vertical and horizontal steel wires. The tightly spaced welded mesh is highly resistant to cutting and deformation, while maintaining good visibility for CCTV monitoring and general safety. Its anti-climb design makes it a preferred choice for high-security areas.
High-Quality Construction
Built from pre-galvanised steel in compliance with BS EN 10346, and finished with a durable polyester powder coating to BS 13438, this gate offers long-term protection against corrosion, weather exposure, and wear. A variety of PPC RAL colours are available to match your site’s branding or design scheme.
Installation Flexibility
Choose between bolt-down or dig-in posts, making the gate suitable for both hard surfaces and soft ground. The universal hanging design allows either gate leaf to be fixed to either post, providing greater flexibility during installation or relocation.
Please note that post mix and anchor bolts are not included and should be purchased separately, depending on your installation type.
