3 Wing Single Turnstile
The turnstiles come with a 2-year manufacturer warranty
Product Description

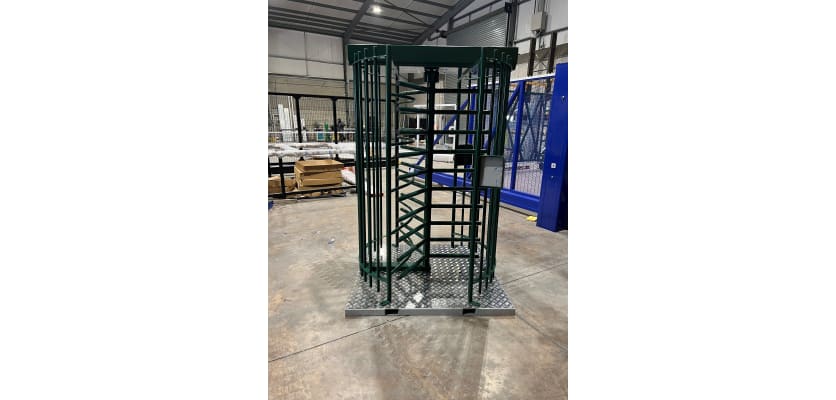

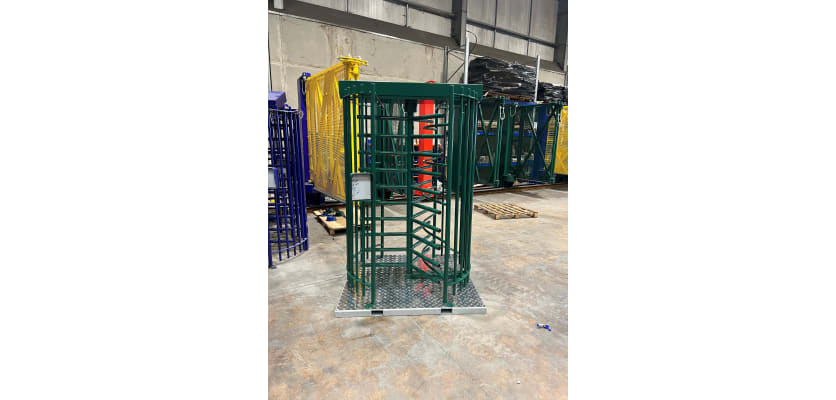

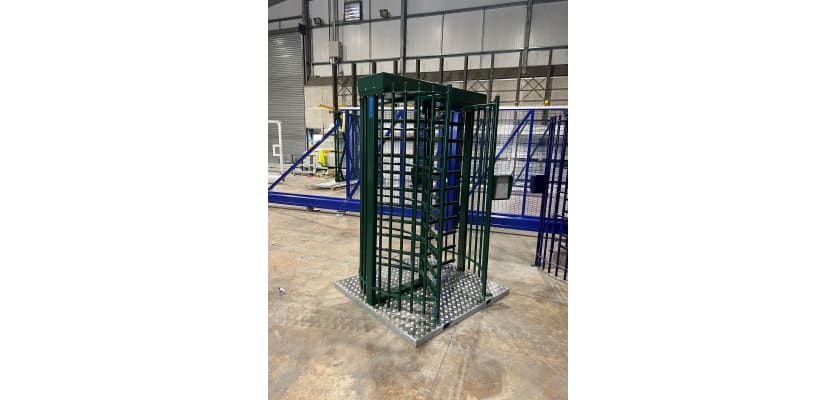

3 Wing Single Turnstile
When you want to have control of the footfall through an entrance or exit or provide security to a site, then a turnstile is an excellent solution. They allow regulation of who enters but also allow emergency evacuation that doesn’t undermine safety.
The 3 wing single turnstile is constructed from steel and powder coated for maximum longevity. These turnstiles are reliable and sturdy and give long and maintenance free performance.
The single turnstile measures 1520mm x 2230mm x 1360mm, with a clear walkway width of 600mm and a clear head height of 2070mm. It has a speed/pass through rate of 15 to 22 persons per minute in a single direction and a fail safe operation in the event of power failure, meaning that should it lose power the turnstile will still allow passage which is very important in emergency situations.
This product has single phase supply and 100% duty cycle (force tested and secure). A passage counter and reader head come as standard.
These turnstiles have a solenoid operated mechanism mounted in the fully enclosed overhead structure, which allows the unit to be configured as bi-directional or single direction operation. The control system allows connection to any access control system or to a fire alarm to provide free rotation in the event of an alarm.
Fixings are included and these are 7 M12 x 180mm anchor shield bolts.
Available in the standard RAL colours shown above. It is also available in non-standard colours with an additional 7 working days added to the lead time, at an additional cost, please enquire for full colour availability. This turnstile will seamlessly form part of your existing fence lines and significantly enhance your security.
Available Add on Accessories
- Intercoms- Comelit GSM Intercom- 1 button intercom with keypad
- Keypads- AX290KA keypad- 12/24v surface mount keypad

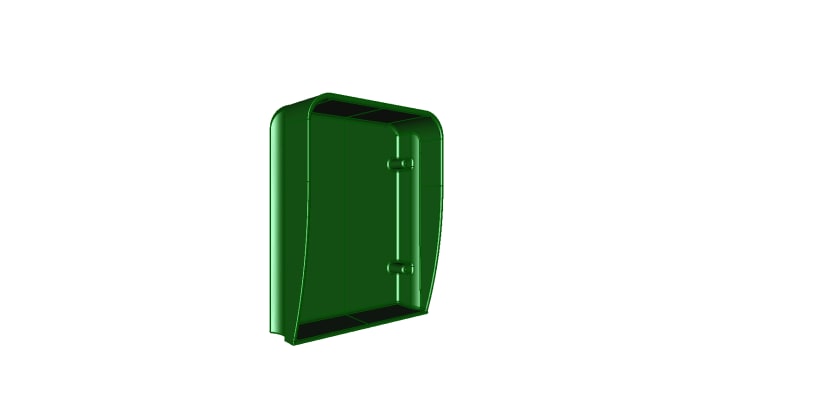

- Proximity Reader- Videx Mini-SA2
- Red/Green Direction Indicators- For Both Sides of the Turnstile
- Forklift Base
In addition, a vast range of access control products can be used with these turnstiles, some of which are available as optional extras when purchasing online. Access control reader mounting plates are also provided at no extra cost on both sides of the turnstile.
Contact Us
If you have any questions regarding this or any of our products, please get in touch by calling 01283 512111 or by using the online chat system where one of our helpful sales team will be happy to guide you through your purchase.
Specifications & Downloads
| Dimensions | 1520mm x 2230mm x 1360mm |
| Fixings | 7 M12 x 180mm anchor shield bolts |
| Force Tested | To 1200 Newtons |
| Speed/Pass through rate | 15 to 22 persons per minute in single direction |
| Head Mechanism | 100% duty cycle [Force Tested and secure] |
| External Manual Release | Secure Euro Cylinder with 3 keys |
| Power | Single Phase |
| Material Construction | Steel and Aluminium |
| Finish | Galvanised and Polyester Powder Coated |
| Polyester Powder Coating | Standard RAL Colours |
