2.4m High AcoustiGuard® SR1 (A1) LPS 1175 Acoustic Fencing Kit
Product Description

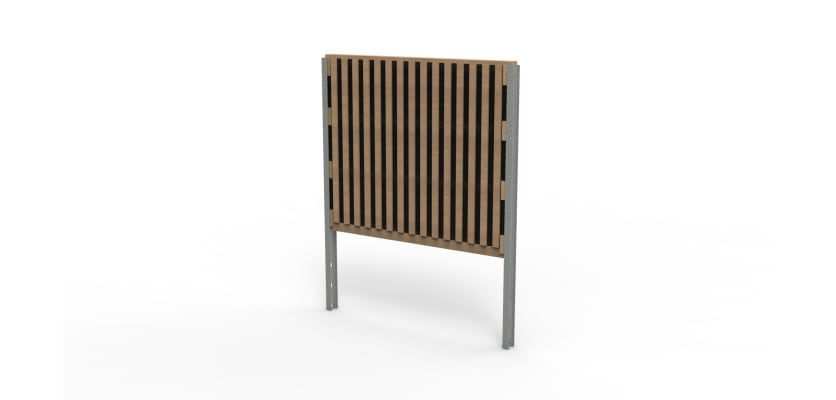

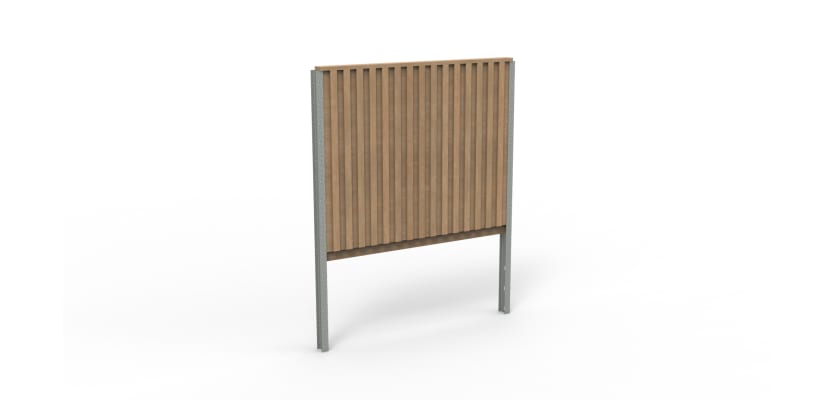

2.4m High AcoustiGuard® SR1 (A1) LPS 1175 Acoustic Fencing Kit

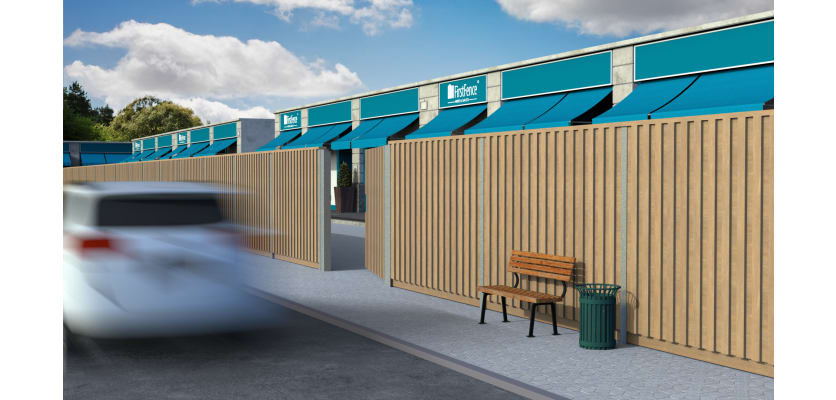

The 2.4m High AcoustiGuard® SR1 (A1) Acoustic Fencing Kit combines high-security perimeter protection with effective noise reduction. Ideal for critical infrastructure, industrial sites, distribution centres and residential areas, it provides a strong physical barrier and helps reduce unwanted noise.
LPCB-certified to LPS 1175 SR1 (A1), the system is designed to resist forced entry while meeting European acoustic performance standards. Made from UC4-treated timber and galvanised steel, the panels are supplied fully assembled for professional installation.
Understanding LPS 1175 SR1 (A1)
The AcoustiGuard® fencing system is independently certified by the Loss Prevention Certification Board (LPCB) to LPS 1175 SR1 (A1).
This rating confirms that the fence can resist a sustained attack for at least 60 seconds using specified small hand tools, including screwdrivers and pliers. Its integrated 358 security mesh adds strength and helps delay intruders, giving security teams valuable time to respond.
Acoustic Performance and Standards
Designed to reduce unwanted noise, the AcoustiGuard® system complies with BS EN 1793, BS EN 1794-1 and BS EN 1794-2. It is also designed in accordance with Highways Works Clause 2504 and uses timber treated under Sector Scheme 4.
Its layered construction combines dense timber boards, EchoAbsorb insulation and integrated 358 security mesh to help block and absorb sound. With an average panel density of 71kg/m², excluding posts, the system provides effective sound insulation.
The system is also assessed for structural strength, wind resistance, impact resistance and durability, making it suitable for demanding environments.
Features and Benefits
- Certified security: LPCB-certified to LPS 1175 SR1 (A1) for tested resistance to forced entry.
- Effective noise reduction: Complies with BS EN 1793 and related standards for acoustic and structural performance.
- Durable materials: UC4 Tanalised timber complies with BS 8417, while steel components are galvanised or zinc-plated for corrosion protection.

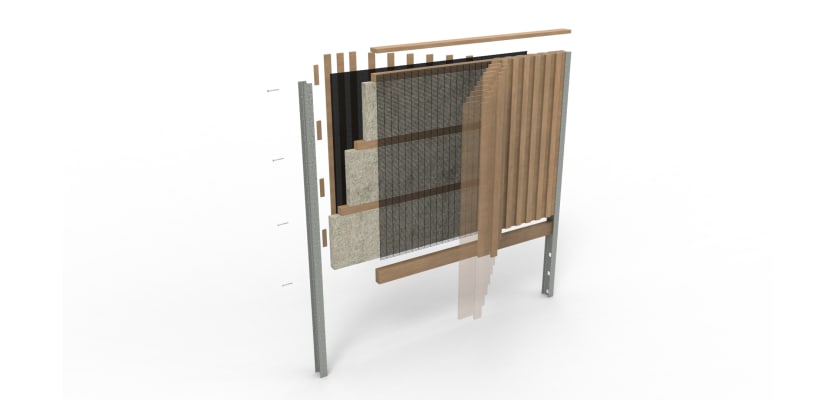

- Multi-layer panels: Each 2.42m-wide panel features 150 x 22mm EchoAbsorb timber boards, 475 x 75mm EchoAbsorb insulation protected by a waterproof nylon sheet, and an integrated 358 security mesh core. A 125 x 38mm capping rail and 150 x 75mm gravel board complete the panel.
- Stable installation: The gravel board provides 100mm ground clearance to help protect the timber. Panels are supported by 127 x 76mm steel RSJ posts, supplied at 3,300mm long and installed in C20/25 concrete foundations with a minimum 900mm embedment.
- Secure panel fixing: Flange hex-head wood screws secure the panels to the posts and help prevent lifting.

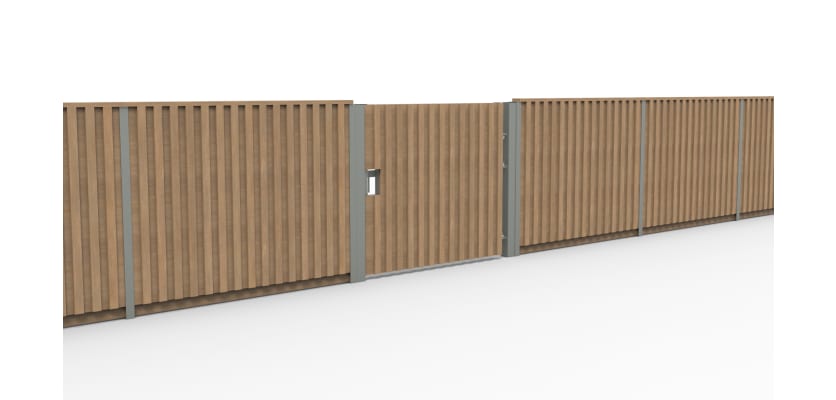

- Flexible layout: Suitable for long fence lines and corners of varying angles. Adjacent corner posts help maintain the system's security rating when installed in accordance with the system drawings.
- Matching gates: Complete your perimeter with compatible AcoustiGuard® SR1 (A1) LPS 1175 Acoustic Gate Kits.
Get in Touch
Our team of specialists is available to provide you with a comprehensive quote and technical guidance for your project. Discover how the 2.4m AcoustiGuard® SR1 Acoustic Fencing can deliver the ultimate in security and noise control. Call our friendly sales team on 01283 512 111 or email sales@firstfence.co.uk.
Specifications & Downloads
| Kit Type | Assembled [Fully Assembled for Lifting] |
| Height | 2400mm |
| Width | 2420mm |
| Material | Timber [Incised and Pressure Treated] |
| Colour | Tanalised UC4 [Pale Green] |
| Weight | 238.15kg |
| Fixing Method | Dig In |
| Steel Post Specification | 127 x 76 x 3300mm |
| Timber Compliant To | BS 8417 [Timber Treatment] |
| Manufacturing Standards | BS EN 1793 Road Traffic Noise Reducing Devices |
| Manufacturing Standards | Tested and Complies to BS EN 1794-1 and BS EN 1794-2 |
| Manufacturing Standards | Design in accordance with specification for Highways Works Clause 2504. Treatment to Sector Scheme 4 |
| Density | Average Density 71kg/m² [Excluding Posts] |
What's Included
| Name | Quantity |
|---|---|
| EchoAbsorb Straight Boards [150mm x 22mm x 2.3m] | 16 |
| Gravel Board [150mm x 75mm x 2.4m] | 1 |
| Capping Rail [2.4m x 175mm x 50mm > 38mm] | 1 |
| Horizontal Rail [75mm x 75mm x 2.4m] | 4 |
| Cover Strips [2.3m x 75mm x 22mm] | 27 |
| AcoustiGuard® Steel RSJ Post 127 x 76 x 3300mm | 1 |
| 2.4m 75 x 22 > 13 HCD Absorbent Wedge | 1 |
| ProFence® 1.8m x 2.5m 358 Mesh Sheet [Cut to Size] | 1 |
| M8 x 100mm Flange Hex Head Wood screw | 5 |
| Lifting Eyes | 2 |
Specifications & Downloads
| Kit Type | Assembled [Fully Assembled for Lifting] |
| Height | 2400mm |
| Width | 2420mm |
| Material | Timber [Incised and Pressure Treated] |
| Colour | Tanalised UC4 [Pale Green] |
| Weight | 238.15kg |
| Fixing Method | Dig In |
| Steel Post Specification | 127 x 76 x 3300mm |
| Timber Compliant To | BS 8417 [Timber Treatment] |
| Manufacturing Standards | BS EN 1793 Road Traffic Noise Reducing Devices |
| Manufacturing Standards | Tested and Complies to BS EN 1794-1 and BS EN 1794-2 |
| Manufacturing Standards | Design in accordance with specification for Highways Works Clause 2504. Treatment to Sector Scheme 4 |
| Density | Average Density 71kg/m² [Excluding Posts] |
What's Included
| Name | Quantity |
|---|---|
| EchoAbsorb Straight Boards [150mm x 22mm x 2.3m] | 16 |
| Gravel Board [150mm x 75mm x 2.4m] | 1 |
| Capping Rail [2.4m x 175mm x 50mm > 38mm] | 1 |
| Horizontal Rail [75mm x 75mm x 2.4m] | 4 |
| Cover Strips [2.3m x 75mm x 22mm] | 27 |
| AcoustiGuard® Steel RSJ Post 127 x 76 x 3300mm | 1 |
| 2.4m 75 x 22 > 13 HCD Absorbent Wedge | 1 |
| ProFence® 1.8m x 2.5m 358 Mesh Sheet [Cut to Size] | 1 |
| M8 x 100mm Flange Hex Head Wood screw | 5 |
| Lifting Eyes | 2 |
