FirstLine® 2.2m High x 6.0m Wide Swing Height Restrictor Barrier
Product Description
FirstLine® 2.2m High x 6.0m Wide Swing Height Restrictor Barrier

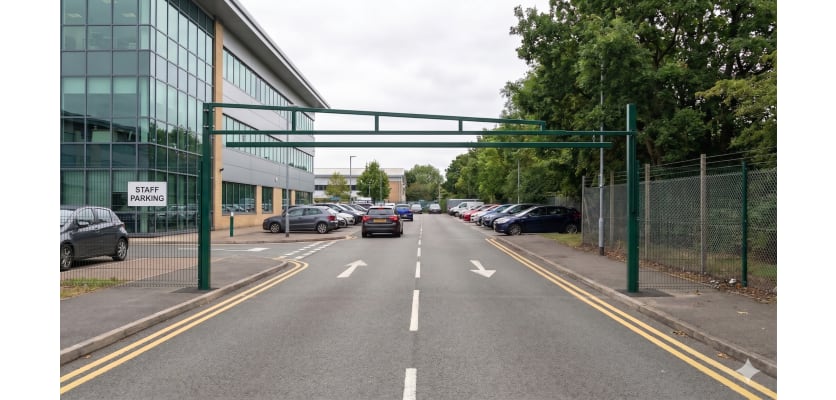

Maximise control over your largest entry points with our professional FirstLine® 2.2m High x 6.0m Wide Overhead Access Barrier. This expansive High-Level Swing Arm Kit is engineered specifically for vehicle height management at wide-access industrial parks and transport hubs. Manufactured from high-grade mild steel, the system utilises a 6.0m wide pivoting arm to maintain a 2200mm vertical clearance, facilitating safe passage for standard cars while allowing authorised manual access for oversized vehicles.
This wide-span barrier is dedicated to streamlined vertical space management. It is the ideal solution to:
- Inhibit Over-Height Entry: Prevent high-sided vehicles or large HGVs from accessing restricted zones while allowing passenger traffic to flow freely.
- Preserve 24/7 Access: Keep large site entrances accessible to pedestrians and motorists around the clock without the need for lower-level gate leaves.
- Enable Selective Clearance: Easily swing the 6.0m high-level arm open to accommodate emergency services or oversized deliveries.
Key Security & Safety Features
- Strong Architecture: Constructed with 100x100mm steel box section hinge and receiver posts to provide maximum structural stability across the 6.0m span.
- High-Visibility Nudge Bar: Includes a suspended 80x40mm nudge bar to serve as a critical physical and visual warning for drivers.
- Reliable Locking Mechanism: Features a specialised lock kit designed to keep the heavy-duty swing arm securely anchored when closed.
- Corrosion Protection: A standard pre-galvanised finish to BS EN 10346 ensures the unit remains protected against the elements for years.
Installation and Customisation
Engineered for permanent site security, the support posts feature a 1000mm dig-in section for deep concrete anchoring. While the default finish is galvanised, this barrier is available in powder-coated finishes to any custom RAL colour (BS EN 13438) to match your facility's branding.
Ideal Applications
- Major Retail Hubs: Managing access at wide delivery entrances and large customer car parks.
- Industrial Portals: Protecting height-sensitive infrastructure at manufacturing sites or warehouses.
- Wide Private Transit Routes: Controlling traffic on expansive private roads or estate entrances.
- Municipal Facilities: Regulating vehicle heights at public parks or waste management sites.
Which Barrier Is Right For You?
Selecting the right configuration depends on your specific traffic flow and security needs. First Fence offers a comprehensive range of car park solutions:
- Double Swing Barrier with High-Level Swing Arm Kit: The most robust setup, combining height restriction with secondary ground-level swing gates for total site lockdown.
- Single Leaf Ground Barriers: A streamlined solution for entrances where there is sufficient room for a single long gate to pivot.
- Double Leaf Ground Barriers: Perfect for wider openings where a smaller swing radius is required due to space constraints behind the gate.
Contact Us
For more information on the 2.2m High x 6.0m Wide Double Swing Barrier, or to discuss bespoke requirements, please contact our team. You can reach us by phone at 01283 512 111, email sales@firstfence.co.uk, or use our online chat system to speak with an expert today.
Specifications & Downloads
| Height [To Nudge Bar] | 2.2m [Installed] |
| Height [Ground to top of Barrier] | 2.9m |
| Total Post Length | 3900mm [1000mm in ground] |
| Access Width | 6.0m |
| Post Types | Dig In |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated [PPC] |
| Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| 2.2m High Swing Barrier Dig In Hinge Post [100x100 box, Pre-Galvanised] | 1 |
| 2.2m High Swing Barrier Dig In Receiver Post [100x100 box, Pre-Galvanised] | 1 |
| 0.5m High x 5.0m Wide Height Barrier Leaf [Pre-Galvanised] | 1 |
| Steel Telescopic Beam Kit [Steel HS 50x50x1.5mm x 1500mm] | 1 |
| Lock Kit for Height Restrictor Swing Barrier | 1 |
| Adjustable Gate Eye [150mm] | 2 |
| 60x60mm Black Ribbed Inserts | 1 |
| 50x50mm Black Ribbed Inserts | 1 |
| 100x100mm Black Ribbed Inserts | 2 |
| Height Restrictor Nudge Bar Fixings Kit | 1 |
| Nudge Bar 80x40 x 5500mm [Welded Lugs] | 1 |
| 15mm Plastic Ribbed Plug | 16 |
| Catch Kit for High Level Swing Arm with Nudge Bar | 1 |
