1.8m x 1.2m Pedestrian Palisade Security Gate Kit
Product Description

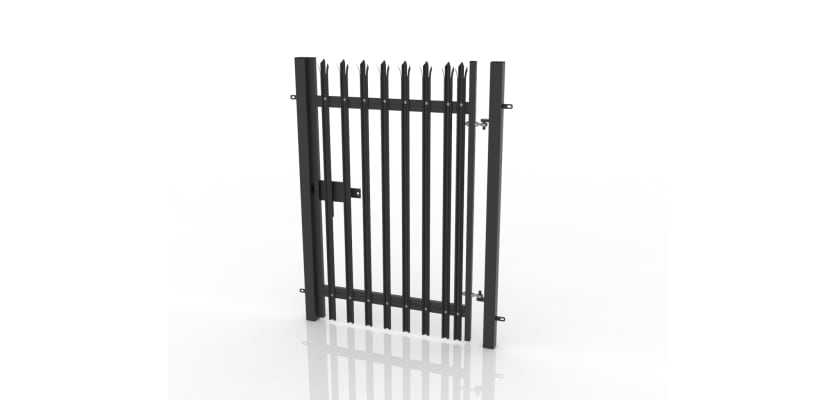

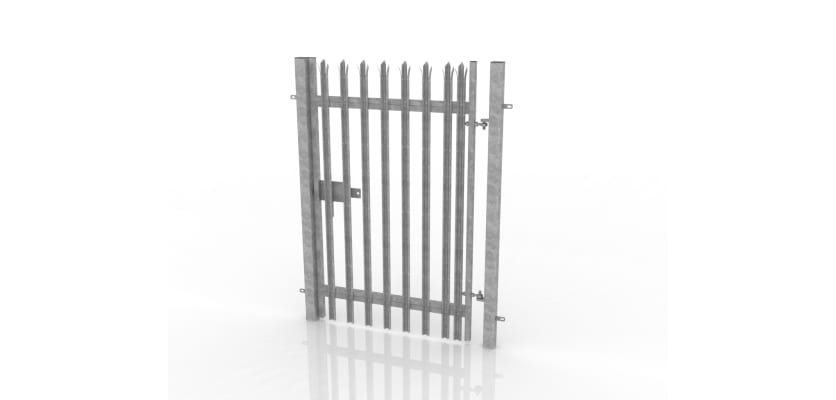

1.8m x 1.2m Pedestrian Palisade Gate
The 1.8m x 1.2m pedestrian palisade gate has been created to provide a safe and secure point of entry for pedestrians, reducing the risk of accidents by separating on-foot and vehicular access.
Please note that our Palisade range does not come pre-assembled, and the components will need to be assembled on-site. For more information, please read our installation guide.
What is Palisade Fencing?
Palisade fencing is a strong and robust form of fencing which can be seen providing security for sites around the UK and the world. It is constructed from a series of vertical pales, which are held in place by rails which run horizontally between each post along the top and bottom of the fencing. This design helps to provide your site with a good level of visibility without compromising on security.
How secure are Palisade Fencing Gates?
Each 1.2m x 1.8m Pedestrian palisade gate has been designed to be incredibly strong and secure, whilst remaining lightweight to allow for easy installation.
Constructed from cold rolled steel, these gates are robust, providing a high level of strength which will help to protect your site from intruders or vandals from attempting to enter by breaking through the pales themselves. The use of cold-rolled steel in the construction of these palisade gates also helps to keep the weight to a minimum, helping to make transportation and installation of your gate as easy as possible.

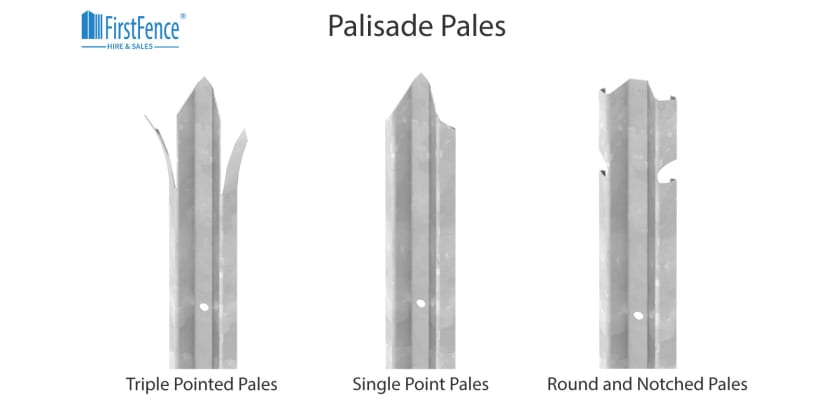

To prevent would-be intruders from attempting to climb over your gate in order to gain access to your site, each of the pales has a ‘W’ shaped profile. This profile shape makes it incredibly difficult to grip, making climbing incredibly difficult. To further deter access via climbing, each pale has a triple pointed tip as standard (single point and rounded and notched points are also available)
Our palisade gates have been designed to last, with each having a galvanised finish which complies with the BS EN ISO 1461:2009 standard. This protective coating will help to protect the steel from the damaging effects of weathering and rust.
What are the benefits to using Palisade Fencing?
There are many benefits to using palisade fencing and gates to secure your site:
- Its intimidating design will help to deter would be intruders from attempting to gain access to your site
- Strength and rigidity - The cold rolled steel construction provides a high level of strength, protecting your site from would be intruders
- Anti-climb design – the ‘W’ shaped profile of the pales and pale tips make it incredibly difficult for anyone to climb over
- Designed to last – Each gate is galvanised to BS EN ISO 1461:2009 standards and can also be Polyester Powder Coated for additional protection against weathering and rust
What is included with the 1.8m x 1.2m Pedestrian Palisade Gate?
Each of the 1.8m x 1.2m pedestrian palisade gate kits comes with the following:
- 1 x 1.8m high by 1.2m wide Sliding Gate Leaf
- 1 x 1.8m Gate catch post
- 1 x 1.8m Hinge Gate Post
- 2 x Adjustable Gate Eyes
- 4 x Ribbed Inserts for Frame and Posts
- 8 x 1.75m Pales (available in either triple point, single point or rounded and notched)
- 16 x M8 Nuts and bolts
Customise your palisade gate
It is possible to have your 1.8m x 1.2m pedestrian palisade gate Polyester Powder Coated (PPC) in a range of RAL colours to suit your fencing line or perimeter. These coatings can help to further protect the steel as well as look aesthetically pleasing.
Contact Us
Need some advice or more technical information about our 1.8m x 1.2m pedestrian palisade gate, then please don’t hesitate to get in touch. We can be reached online via phone on 01283 512 111, online through our online chat service or by email at sales@firstfence.co.uk.
Specifications & Downloads
| Height | 1800mm [Installed] |
| Total Post Length | [Dig In: 2500mm] [Bolt Down: 1800mm] |
| Total Width | 1470mm |
| Access Width | 1200mm |
| Weight | 76.5kg |

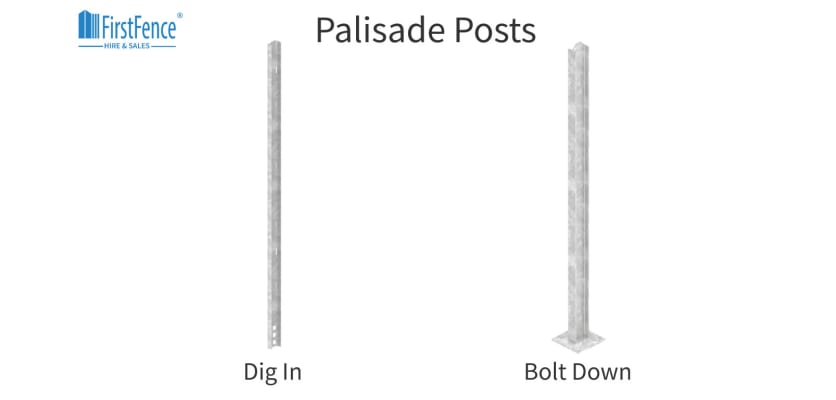

| Post Types | Dig in, Bolt Down |
| Box Sections of Posts | 80x80mm [Hinge] 80x80mm [Catch] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Material | Galvanised Steel |
| Finish | Galvanised, Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey, Brown |
| Compliant To | BS EN ISO 1461:2009 |
| Pale Types | Triple Pointed, Round & Notched, Single Point |
| Pale Height | 1750mm |
What's Included
| Name | Quantity |
|---|---|
| Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 2 |
| Ribbed Inserts for Frame and Posts | 4 |
| 'W' Section Pales | 8 |
| M8 Nuts and Bolts | 16 |
Specifications & Downloads
| Height | 1800mm [Installed] |
| Total Post Length | [Dig In: 2500mm] [Bolt Down: 1800mm] |
| Total Width | 1470mm |
| Access Width | 1200mm |
| Weight | 76.5kg |
| Post Types | Dig in, Bolt Down |
| Box Sections of Posts | 80x80mm [Hinge] 80x80mm [Catch] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Material | Galvanised Steel |
| Finish | Galvanised, Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey, Brown |
| Compliant To | BS EN ISO 1461:2009 |
| Pale Types | Triple Pointed, Round & Notched, Single Point |
| Pale Height | 1750mm |
What's Included
| Name | Quantity |
|---|---|
| Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 2 |
| Ribbed Inserts for Frame and Posts | 4 |
| 'W' Section Pales | 8 |
| M8 Nuts and Bolts | 16 |
