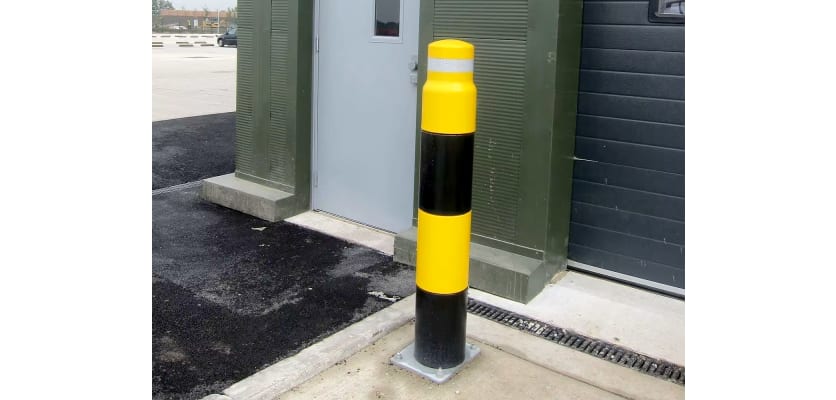

1.26m High DropCore Bollard
A heavy duty demountable bollard system with removable steel core
Product Description
1.26m High DropCore Bollard
DropCore Bollards are a heavy-duty demountable (removable) bollard system that can play an important part of an impact protection system in a variety of settings, including warehouse facilities and external level access loading doors where HGV trailers reverse in and out, throughout the day or night, with deliveries.
Manufactured from mild steel and hot dip galvanised to BS EN ISO 1461, the core of the DropCore bollard has a finished height of 1260mm with an overall height measurement of 1400mm, and a diameter of 200mm.
This bollard comes with a Yellow and Black cover kit made from polyethene and has a 50mm reflective silver band for extra visibility in low light conditions. This cover has a diameter of 210mm and slides over the post once it has been secured in place.
The DropCore Bollard comes with a cast-in steel floor socket (200mm deep) for easy installation and removal. To install, drill the slab, cast in the ground socket and then drop the core into the socket. The socket comes with 3 safety anchors to secure in place (M10 x 120mm). Post Mix is recommended for pointing to be used around the baseplate.
Features & Benefits
- Heavy-duty bollard with shock-absorbing gaiter to withstand impact from heavy vehicles
- Works like a potted bollard but with a demountable core
- Should damage occur, simply lift out and replace the bollard core
- Available in a range of colours
Contact Us
First Fence has a range of Crash and Impact Protection products designed to help keep people, buildings, equipment and vehicles safe in busy delivery and warehouse environments. Please get in touch if you have any questions about any of these products. Our sales team are knowledgeable and friendly and will be happy to help you. We can be contacted by calling 01283 512 111 or by using the online chat tool.
Specifications & Downloads
| Height | 1260mm AFFL [1400mm Overall Height] |
| Diameter | 200mm [Core] |
| Material | Mild Steel [Core and Floor Socket], Polyethylene [Sleeve] |
| Finish | Hot Dip Galvanised |
| Ground Fixing | Floor Socket [Demountable] |
| Floor Socket Depth | 200mm |
| Compliant to | BS EN ISO 1461 [Galvanised] |
| Colour | Yellow and Black, Black and Yellow or Red and White |
Specifications & Downloads
| Height | 1260mm AFFL [1400mm Overall Height] |
| Diameter | 200mm [Core] |
| Material | Mild Steel [Core and Floor Socket], Polyethylene [Sleeve] |
| Finish | Hot Dip Galvanised |
| Ground Fixing | Floor Socket [Demountable] |
| Floor Socket Depth | 200mm |
| Compliant to | BS EN ISO 1461 [Galvanised] |
| Colour | Yellow and Black, Black and Yellow or Red and White |
