0.6m High Wall Mounted Bolt Down 868 Mesh Fencing Kit
Product Description
0.6m High Bolt Down 868 Mesh Fencing Kit
Protect your perimeter quickly and effectively with the First Fence 0.6m High Bolt Down 868 Mesh Fencing Kit. Designed for direct surface mounting, this strong and reliable solution offers a powerful physical barrier that strengthens any solid boundary. When installed alongside existing structures, it reinforces your property's security and helps deter unauthorised access and intrusions.
Key Features and Components
This comprehensive kit provides all the essential elements for a single section of bolt-down mesh fencing:

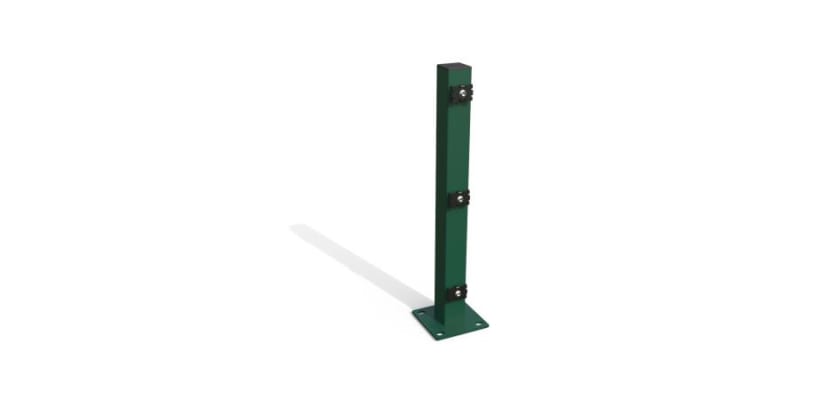

- 1 x 0.6m High Bolt Down 60x60 Intermediate Post Only: A 60x60mm post, 650mm in total length, specifically designed with a base plate for secure surface mounting.
- 1 x 630mm High x 2.5m Wide 868 Mesh Fence Panel Only: The core of the security barrier, offering robust anti-climb properties.
- 3 x 868 Mesh Fencing Black Fixing Clips: Essential for securely attaching the mesh panel to the posts.
- 3 x M8 x 40mm Mesh Security Bolts: Ensures the mesh panel remains firmly in place.
- 1 x 60x60 Black Ribbed Insert: Provides a neat finish to the top of the post, preventing water ingress.
Installation Considerations
Fixing the bolt-down posts to your surface is critical for optimal security. The type of fixing you use will depend on the surface material (concrete, asphalt, etc.), the anticipated load, and the environment (indoor vs. outdoor). Each bolt-down post typically requires a maximum of four M16 fixings for secure attachment, ensuring maximum stability. Common fixings suitable for this application include:
- Sleeve Anchors/Through Bolts: Ideal for heavy-duty applications, expanding to grip into concrete or solid brick.
- Shield Anchors (Rawl Bolts): Excellent for solid masonry surfaces, expanding when tightened to provide a strong hold.
- Chemical Anchors (Resin Fixings): Offers high load capacity and is best for irregular or older concrete/masonry surfaces.
First Fence offers several M16 fixings: M16 x 220mm Ground Anchor Bolt, M16 x 150mm Ground Anchor Bolt, M16 x 125mm Ground Anchor Bolt and M16 x 190mm Resin Stud Ground Anchors. Please note that the fixings you select will be dependent on the wall material. It is recommended that you carry out an assessment before you begin work.
Installation Tips
Before installation, thoroughly inspect the wall's condition; crumbling mortar or hollow bricks necessitate specialised attention. Ensure precise vertical alignment of all posts by utilising a spirit level. For outdoor applications, always select corrosion-resistant hardware, such as galvanised or stainless steel, to guarantee lasting durability.
Find Out More About Our Mesh Fencing Range
For more information about our wall-mounted fencing solutions or our extensive range of mesh gates and fences, feel free to call us at 01283 512 111. Our team will be happy to assist with any questions you may have.
Specifications & Downloads
| Material | Galvanised/Zinc Plated Steel |
| PPC Colours | Green as standard, other colours available on request |
| System Height | 0.6m [Installed] |
| Mesh Panel Dimensions | 630mm High x 2500mm Wide |
| Post Length | 650mm |
| Post Box Section | 60mm x 60mm |
What's Included
| Name | Quantity |
|---|---|
| 0.6m High Bolt Down Intermediate Post [60 x 60mm] | 1 |
| 630mm High x 2.5m Wide 868 Mesh Fence Panel | 1 |
| 868 Mesh Fencing Fixing Clips [Black] | 3 |
| M8 x 40mm Mesh Security Bolt | 3 |
| Black Ribbed Inserts [60 x 60mm] | 1 |
Specifications & Downloads
| Material | Galvanised/Zinc Plated Steel |
| PPC Colours | Green as standard, other colours available on request |
| System Height | 0.6m [Installed] |
| Mesh Panel Dimensions | 630mm High x 2500mm Wide |
| Post Length | 650mm |
| Post Box Section | 60mm x 60mm |
What's Included
| Name | Quantity |
|---|---|
| 0.6m High Bolt Down Intermediate Post [60 x 60mm] | 1 |
| 630mm High x 2.5m Wide 868 Mesh Fence Panel | 1 |
| 868 Mesh Fencing Fixing Clips [Black] | 3 |
| M8 x 40mm Mesh Security Bolt | 3 |
| Black Ribbed Inserts [60 x 60mm] | 1 |
