0.6m High 90° Crank Wall-Mounted 868 Mesh Intermediate Post Kit
Please note - Mesh Panels are not included in Post Kits
Product Description
0.6m High 90° Crank Wall-Mounted 868 Mesh Intermediate Post Kit

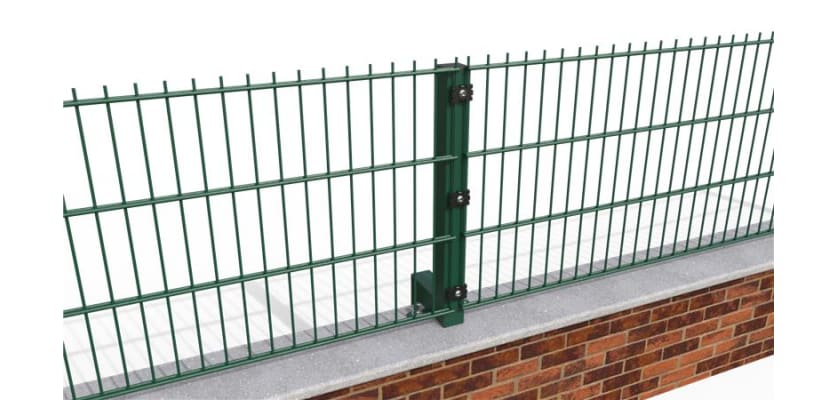

Enhance your wall’s anti-climb security with the First Fence 0.6m High 90° Crank Wall-Mounted 868 Mesh Intermediate Post Kit. Designed to integrate perfectly into your system, it adds crucial support and an outward-angled deterrent to help prevent unauthorised access.
Key Features and Components
This comprehensive kit provides all the essential elements for a single intermediate post section of wall-mounted cranked mesh fencing:

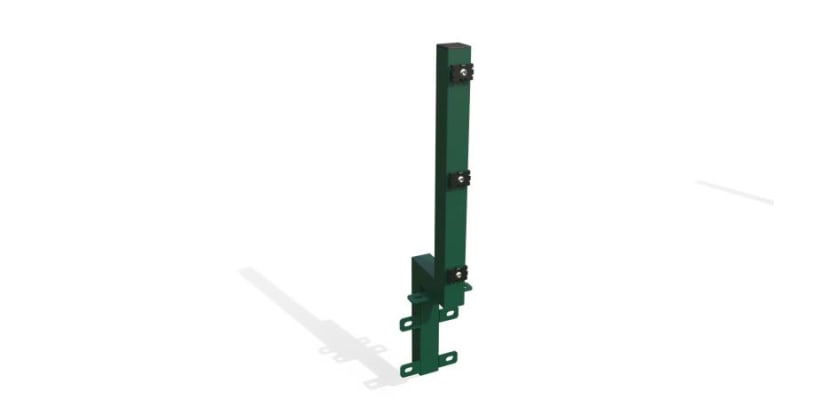

- 1 x 0.6m High 90 Degree Crank 60x60 Intermediate Post Only: A 60x60mm post, 940mm in total length, specifically designed for secure wall mounting with an outward 90-degree crank.
- 3 x 868 Mesh Fencing Black Fixing Clips: Essential for securely attaching mesh panels to the post.
- 3 x M8 x 40mm Mesh Security Bolts: Ensures the mesh panel remains firmly in place on the post.
- 1 x 60 x 60 Black Ribbed Inserts: Provides a neat finish to the top of the post, preventing water ingress.
Installation Considerations

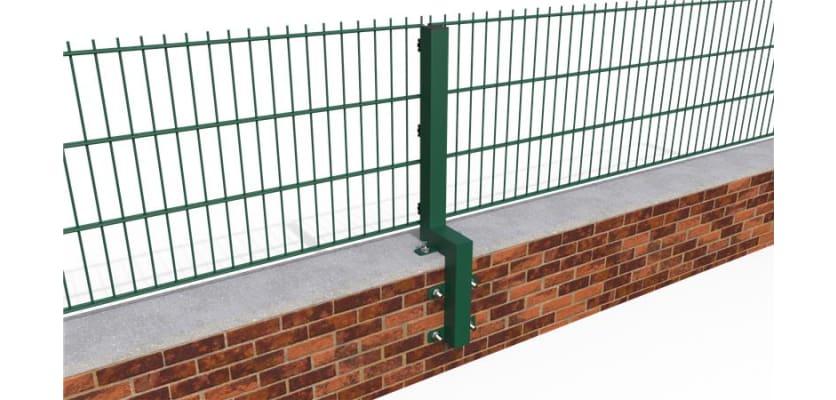

Securing the posts to your wall is essential for optimal security. The fixing type depends on the wall material, load requirements, and whether the installation is indoors or outdoors. Each cranked post typically needs up to four M16 fixings. Suitable fixings include:
- Sleeve Anchors/Through Bolts: Ideal for heavy-duty applications, expanding to grip into concrete or solid brick.
- Shield Anchors (Rawl Bolts): Excellent for solid masonry walls, expanding to provide a strong hold.
- Chemical Anchors (Resin Fixings): Offers high load capacity and is best for irregular, hollow, or older brickwork.
First Fence offers several M16 fixings: M16 x 220mm Ground Anchor Bolt, M16 x 150mm Ground Anchor Bolt, M16 x 125mm Ground Anchor Bolt, and M16 x 190mm Resin Stud Ground Anchors. Please note that the fixings you select will be dependent on the wall material. It is recommended that you carry out an assessment before you begin work.
Installation Tips
Before installation, carefully assess the condition of the wall—any crumbling mortar or hollow bricks may require specialist treatment. Use a spirit level to ensure all posts are aligned vertically. For outdoor use, always choose corrosion-resistant fixings like galvanised or stainless steel to ensure long-term durability.
Find Out More About Our Mesh Fencing Range
This line of products is also available as a straight wall-mounted and a 60° cranked option. To learn more about our wall-mounted fencing solutions or our full range of mesh gates and fences, give us a call on 01283 512 111. Our team is always happy to help with any questions you may have.
Specifications & Downloads
| Material | Galvanised/Zinc Plated Steel |
| PPC Colours | Green and Black as standard, other colours available on request |
| Post Length | 940mm [Total] |
| Post Box Section | 60mm x 60mm |
What's Included
| Name | Quantity |
|---|---|
| 0.6m High 90° Crank Intermediate Post [940mm High x 60 x 60mm] | 1 |
| 868 Mesh Fencing Fixing Clips [Black] | 3 |
| M8 x 40mm Mesh Security Bolt | 3 |
| Black Ribbed Inserts [60 x 60mm] | 1 |
Specifications & Downloads
| Material | Galvanised/Zinc Plated Steel |
| PPC Colours | Green and Black as standard, other colours available on request |
| Post Length | 940mm [Total] |
| Post Box Section | 60mm x 60mm |
What's Included
| Name | Quantity |
|---|---|
| 0.6m High 90° Crank Intermediate Post [940mm High x 60 x 60mm] | 1 |
| 868 Mesh Fencing Fixing Clips [Black] | 3 |
| M8 x 40mm Mesh Security Bolt | 3 |
| Black Ribbed Inserts [60 x 60mm] | 1 |
