0.6m High 90° Crank Wall-Mounted 868 Mesh Fencing Kit

Boost your perimeter’s anti-climb protection with the First Fence 0.6m High 90 Degree Crank Wall-Mounted 868 Mesh Fencing Kit. Designed to mount at an outward angle on existing walls, this robust solution forms a strong physical barrier that significantly hinders climbing, effectively deterring unauthorised access and intruders.

90° Crank Wall-Mounted Mesh Fencing: A Smart Security Upgrade

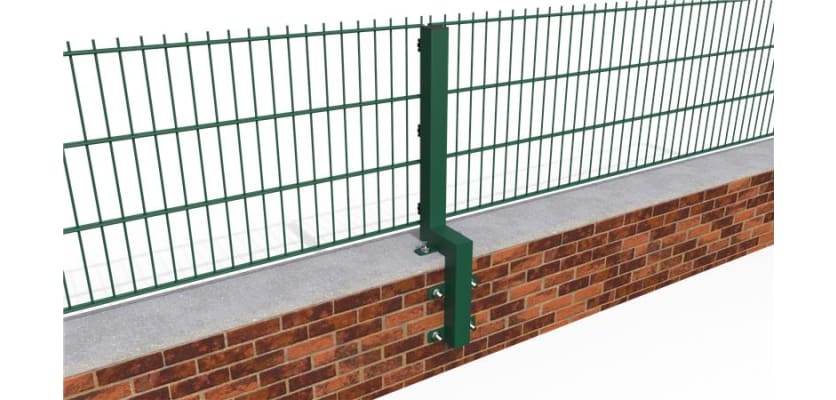

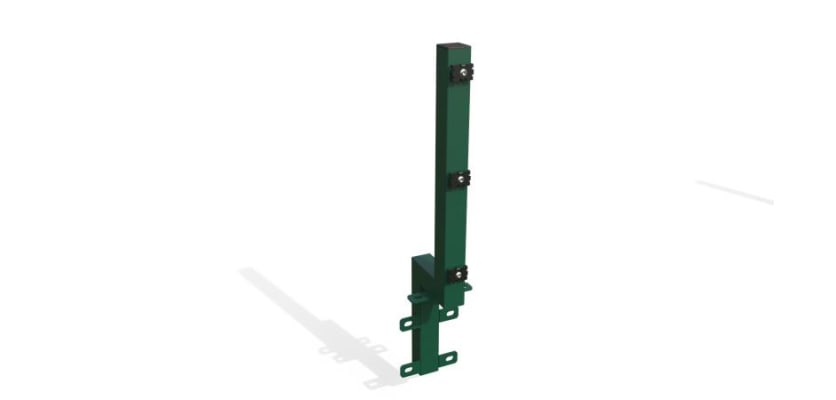

This strong, effective solution easily adds an outward-angled barrier along the top of your existing wall. Designed for straightforward installation, the kit provides a stable mesh system that extends your perimeter's height, offering an essential layer of anti-climb protection. It includes a 630mm high, 2506mm wide mesh panel and a 90-degree cranked post that projects 140mm outwards (940mm total length), creating a significant climbing deterrent. All components are made from high-quality materials for lasting durability in any environment.

Build Your Own Kit

Our handy online calculator makes planning easy! Just enter your fence's total length, and it will tell you exactly how many fencing kits you need, based on a 2.5m bay. This product is available in a smart green or black polyester powder-coated finish, with many other RAL colours available on request to match your existing scheme.

Each of the 90° crank fencing kits contains a 60 x 60mm section intermediate post, a 630mm x 2.5m wide 868 mesh fence panel, x3 mesh fencing fixing clips, M8 x 40mm mesh security bolts and x1 black ribbed insert.

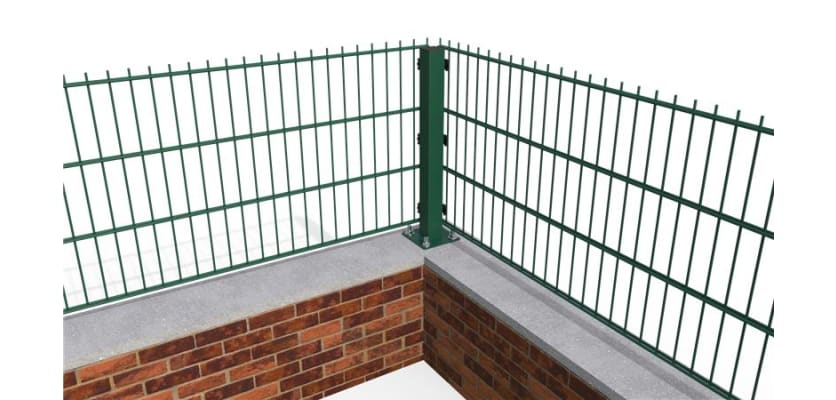

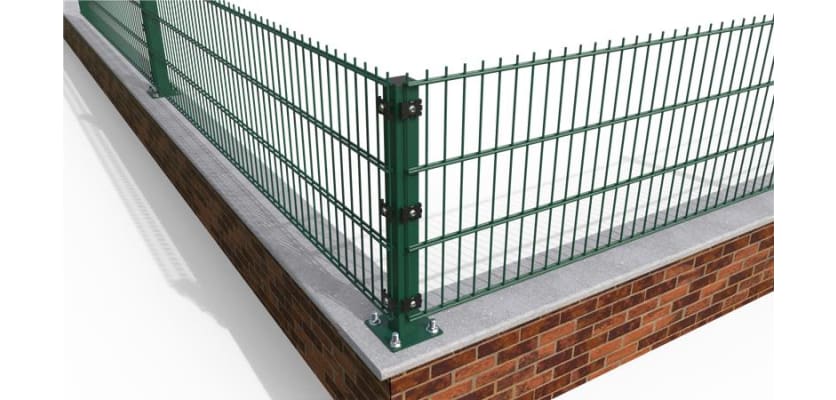

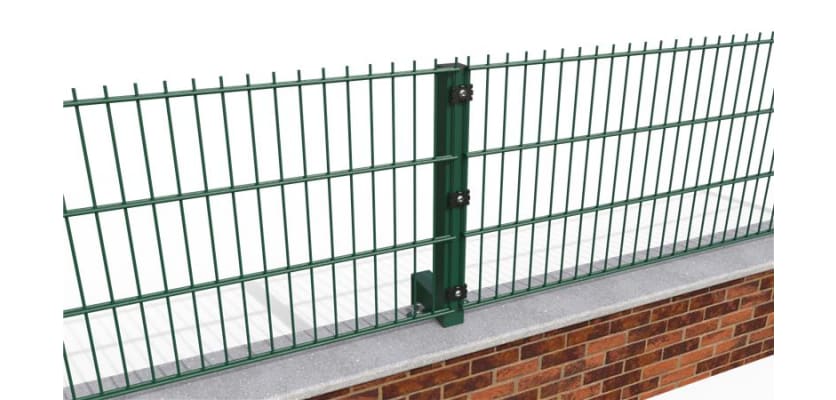

You may like to add additional posts to your system, particularly if there is a change in direction or to terminate the structure.  The corner post for the 90° crank system is a bolt-down post (MESH-TOP-KIT-0685) that is fixed directly to the top surface of the wall.  The intermediate post serves as both an intermediate and an end post.

Applications

The 0.6m High 90 Degree Crank Wall-Mounted 868 Mesh Fencing Kit is a powerful upgrade for any wall where anti-climb security is essential. Known for its strength and rigidity, 868 Twin Mesh becomes even more effective when paired with the outward-angled crank, forming a tough-to-scale barrier that deters intruders. The cranked design creates a challenging obstacle, enhancing perimeter protection and helping to prevent theft, vandalism, and unauthorised access. This makes it ideal for high-security environments such as industrial sites, commercial properties, utility areas, or any location requiring advanced climb-resistant fencing.

Installation Considerations

Fixing the posts to your wall is critical for optimal security. The type of fixing you use will depend on your wall material (brick, concrete, etc.), the anticipated load, and the environment (indoor vs. outdoor).  This kit model is based on a common bond pattern used in bricklaying.  Before beginning work, assess the wall you intend to install this onto and select the appropriate fixings. Common fixings suitable for this application include:

Sleeve Anchors/Through Bolts: Ideal for heavy-duty applications, expanding to grip into concrete or solid brick.

Shield Anchors (Rawl Bolts): Excellent for solid masonry walls, expanding to provide a strong hold.

Chemical Anchors (Resin Fixings): Offers high load capacity and is best for irregular, hollow, or older brickwork.

First Fence offers several M16 fixings: M16 x 220mm Ground Anchor Bolt, M16 x 150mm Ground Anchor Bolt, M16 x 125mm Ground Anchor Bolt, and M16 x 190mm Resin Stud Ground Anchors. Please note that the fixings you select will be dependent on the wall material, it is recommended that you carry out an assessment before you begin work.

Installation Tips

Before installation, thoroughly inspect the wall's condition; crumbling mortar or hollow bricks necessitate specialised attention. Ensure precise vertical alignment of all posts by using a spirit level. For outdoor applications, always select corrosion-resistant hardware, such as galvanised or stainless steel, to guarantee lasting durability.

Find Out More About Our Mesh Fencing Range

For more information about our wall-mounted fencing solutions or our extensive range of mesh gates and fences, feel free to call us at 01283 512 111. Our team will be happy to assist with any questions you may have.
