0.6m High 60° Crank Wall-Mounted 868 Mesh Intermediate Post Kit
Please note - Mesh Panels are not included in Post Kits
Product Description
0.6m High 60° Crank Wall-Mounted 868 Mesh Intermediate Post Kit

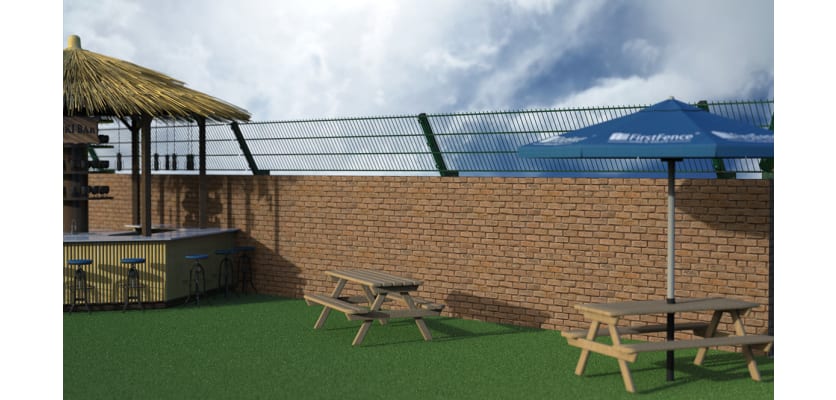

Enhance the anti-climb protection of your wall-mounted fencing with the First Fence 0.6m High 60 Degree Crank Wall-Mounted 868 Mesh Intermediate Post Kit. Designed to integrate into your security system, this intermediate post offers essential support while extending outward at an angle to make climbing significantly more difficult. It serves as a strong physical barrier, strengthening your wall boundary against intruders.
Key Features and Components
This comprehensive kit provides all the essential elements for a single section of wall-mounted 60-degree cranked mesh fencing:
- 1 x 0.6m High 60 Degree Crank 60x60 Intermediate Post Only: A 60x60mm post, 900mm in total length, specifically designed for secure wall mounting with a 60-degree outward crank.
- 3 x 868 Mesh Fencing Black Fixing Clips: Essential for securely attaching the mesh panel to the posts.
- 3 x M8 x 40mm Mesh Security Bolts: Ensures the mesh panel remains firmly in place.
- 1 x 60x60 Black Ribbed Insert: Provides a neat finish to the top of the post, preventing water ingress.
Installation Considerations
Fixing the posts to your wall is critical for optimal security. The type of fixing you use will depend on your wall material (brick, concrete, etc.), the anticipated load, and the environment (indoor vs. outdoor). Each cranked post typically requires a maximum of four M16 fixings for secure attachment. Common fixings suitable for this application include:
- Sleeve Anchors/Through Bolts: Ideal for heavy-duty applications, expanding to grip into concrete or solid brick.
- Shield Anchors (Rawl Bolts): Excellent for solid masonry walls, expanding to provide a strong hold.
- Chemical Anchors (Resin Fixings): Offers high load capacity and is best for irregular, hollow, or older brickwork.
First Fence offers several M16 fixings: M16 x 220mm Ground Anchor Bolt, M16 x 150mm Ground Anchor Bolt, M16 x 125mm Ground Anchor Bolt, and M16 x 190mm Resin Stud Ground Anchors. Please note that the fixings you select will be dependent on the wall material, it is recommended that you carry out an assessment before you begin work.
Installation Tips
Before installation, thoroughly inspect the wall's condition; crumbling mortar or hollow bricks necessitate specialised attention. Ensure precise vertical alignment of all posts by utilising a spirit level. For outdoor applications, always select corrosion-resistant hardware, such as galvanised or stainless steel, to guarantee lasting durability.
Find Out More About Our Mesh Fencing Range
For more information about our wall-mounted fencing solutions or our extensive range of mesh gates and fences, feel free to call us at 01283 512 111. Our team will be happy to assist with any questions you may have.
Specifications & Downloads
| Material | Galvanised/Zinc Plated Steel |
| PPC Colours | Green as standard, other colours available on request |
| Post Length | 900mm [Total] |
| Post Box Section | 60mm x 60mm |
What's Included
| Name | Quantity |
|---|---|
| 0.6m High 60° Crank Intermediate Post [60 x 60mm] | 1 |
| 868 Mesh Fencing Fixing Clips [Black] | 3 |
| M8 x 40mm Mesh Security Bolt | 3 |
| Black Ribbed Inserts [60 x 60mm] | 1 |
Specifications & Downloads
| Material | Galvanised/Zinc Plated Steel |
| PPC Colours | Green as standard, other colours available on request |
| Post Length | 900mm [Total] |
| Post Box Section | 60mm x 60mm |
What's Included
| Name | Quantity |
|---|---|
| 0.6m High 60° Crank Intermediate Post [60 x 60mm] | 1 |
| 868 Mesh Fencing Fixing Clips [Black] | 3 |
| M8 x 40mm Mesh Security Bolt | 3 |
| Black Ribbed Inserts [60 x 60mm] | 1 |
