HD.50 Above Ground Hydraulic Swing Gate Operator
Product Description
HD.50 Above Ground Hydraulic Swing Gate Operator
The HD.50 Above Ground Hydraulic Swing Gate Operator is a versatile solution designed for gates up to 5.0m in width.
Reversible gate operators are engineered to automate gate movements, providing the convenience of operation in both directions. These operators find common application in residential, commercial, and industrial environments where frequent gate operation is necessary and where the ability to reverse the gate's direction proves advantageous. This flexibility proves particularly beneficial in scenarios with space limitations.
Crafted from premium materials, this operator ensures dependable performance, straightforward installation, and maintenance ease. The rear pivot joint makes installation easier, balancing any lack of gate alignment. The adjustable hydraulic slowdown in the closing phase ensures silent and very smooth movement.
Features
The HD.50 Hydraulic Gate Operator is designed for gates up to 5.0 metres.
It features a 230 Vac hydraulic post-mounted ram, ensuring reliability and high-quality materials.

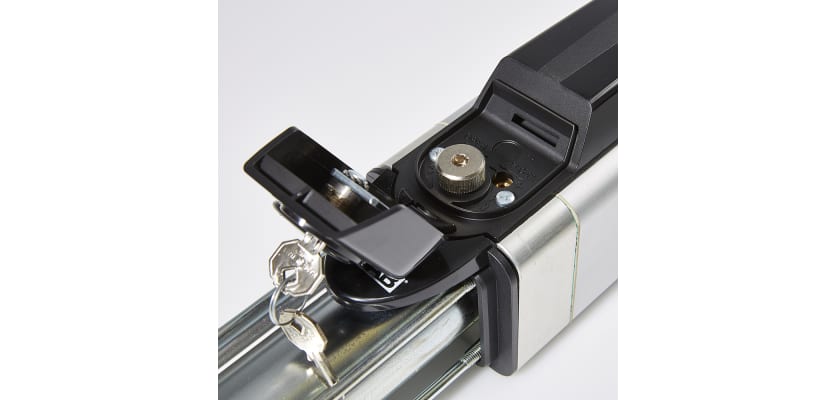

With exceptional performance, it includes a personalized key-operated release and self-alignment capabilities, thanks to a rear pivot joint that facilitates installation and adjusts for any misalignment of the gate.
The operator allows for precise stroke adjustment and is easy to install and maintain, providing safe and smooth operation.
First Fence has a full range of gate automation products and accessories for you to choose from, as well as a huge range of gates, including access gates, including palisade, mesh, railings, and specialist and custom offerings.
Here to help
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Length | 1417mm |
| Motor Supply | 230 Vac |
| Maximum Absorbed Current | 1.1 A |
| Maximum Thrust | 5000 N |
| Duty Cycle | 99% |
| Stroke Length | 390mm |
| Protection Level | IP55 |
| Encoder | No |
| Built In Physical Stops | No |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 5.0m |
| Motor Type | Hydraulic |
| Gate Usage | Commercial |
| Fixing Bracket Type | Weld on |
| Compatible Control Panel | Brainy |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
Specifications & Downloads
| Length | 1417mm |
| Motor Supply | 230 Vac |
| Maximum Absorbed Current | 1.1 A |
| Maximum Thrust | 5000 N |
| Duty Cycle | 99% |
| Stroke Length | 390mm |
| Protection Level | IP55 |
| Encoder | No |
| Built In Physical Stops | No |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 5.0m |
| Motor Type | Hydraulic |
| Gate Usage | Commercial |
| Fixing Bracket Type | Weld on |
| Compatible Control Panel | Brainy |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
