TOM5024E Above Ground Swing Gate Operator
Product Description

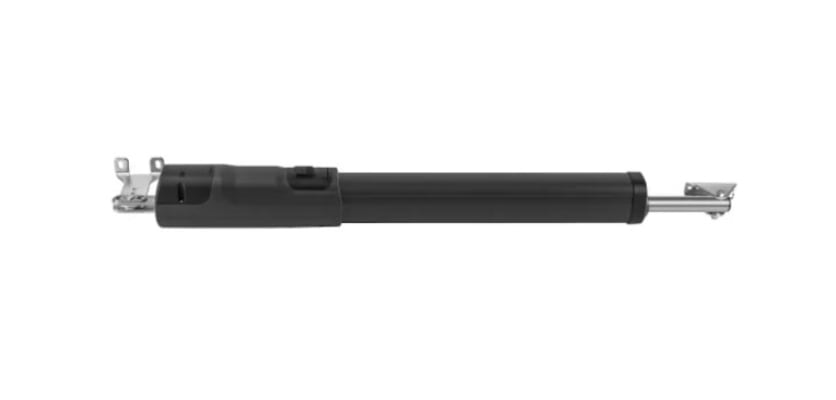

TOM5024E Above Ground Swing Gate Operator
TOM5024E Telescopic Gate Operator – 24 Vdc linear telescopic operator for gate leaves up to 4.5m.
The TOM5024E stands as a reliable and state-of-the-art gear motor, equipped with two adjustable mechanical stops to guarantee smooth operation throughout the opening and closing process. Easily reachable from above and located beneath the metal cover of the shaft, these stops offer convenience in operation. Tailored for automating various swing gates, it stands out with its compact 96mm width footprint and screw-in brackets, making installation straightforward.
The 45° angle of the wiring cable reduces ground clearance, minimising it to the fullest extent. Rear and front brackets aligned on the same axis optimise load distribution, thus prolonging the actuator's lifespan. Additionally, shielded by a wiper ring and steel shaft, the worm screw ensures suitability for environments exposed to dust, sand, or harsh weather conditions.
The FACE gears enable decreased sensitivity to misalignment, minimal transmission errors, and quiet motor operation.
Features
A non-reversible 24 Vdc electromechanical gear motor featuring patented FACE gears.
It includes easily adjustable limit switches for both opening and closing, accessible from above.
Additionally, it has adjustable mechanical stops for precise control during operation.
First Fence has a full range of gate automation products and accessories for you to choose from, as well as a huge range of gates including, access gates, including palisade, mesh, railings, and specialist and custom offerings.
Here to help
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Length | 1575mm |
| Motor Supply | 24 Vdc |
| Maximum Absorbed Current | 5.5 A |
| Maximum Thrust | 1500 N |
| Opening Time | 19 Seconds |
| Duty Cycle | 99% |
| Maximum Stroke | 500mm |
| Protection Level | IP44 |
| Encoder | Yes |
| Built In Physical Stops | Yes |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 4.5m |
| Gate Weight | 9.4kg |
| Wind Loading | 25% |
| Motor Type | Electromechnical |
| Gate Usage | Residential |
| Fixing Bracket Type | Screw on |
| Compatible Control Panels | Trust24 |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
Specifications & Downloads
| Length | 1575mm |
| Motor Supply | 24 Vdc |
| Maximum Absorbed Current | 5.5 A |
| Maximum Thrust | 1500 N |
| Opening Time | 19 Seconds |
| Duty Cycle | 99% |
| Maximum Stroke | 500mm |
| Protection Level | IP44 |
| Encoder | Yes |
| Built In Physical Stops | Yes |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 4.5m |
| Gate Weight | 9.4kg |
| Wind Loading | 25% |
| Motor Type | Electromechnical |
| Gate Usage | Residential |
| Fixing Bracket Type | Screw on |
| Compatible Control Panels | Trust24 |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
