TOM3024E Above Ground Swing Gate Operator
Product Description

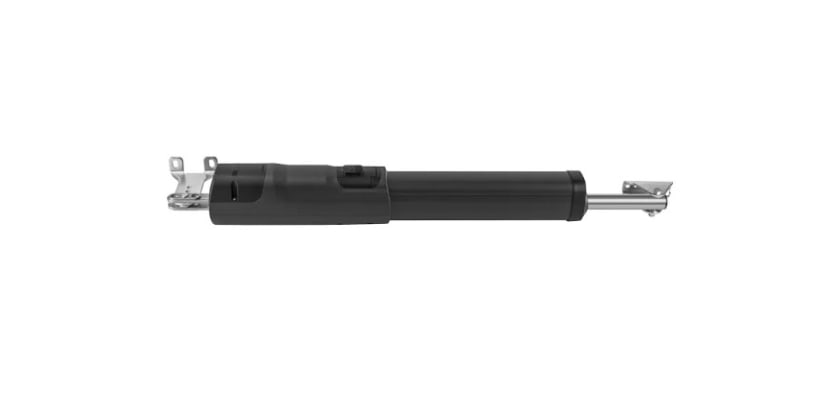

TOM3024E Swing Gate Operator
The TOM3024E Swing Gate Operator is a 24 Vdc linear telescopic device for gate leaves up to 2.5 metres. This gate operator is perfect for residential gates that see heavy usage.
The TOM3024E stands as a reliable and state-of-the-art gear motor, equipped with two adjustable mechanical stops for seamless opening and closing. These stops are conveniently accessible from above and are positioned below the shaft's metal cover. Tailored for automating a variety of swing gates, it boasts a compact footprint of only 960mm in width and features screw-in brackets for easy installation.
The 45° wiring cable angle reduces ground clearance to a minimum. With rear and front brackets aligned along the same axis, load distribution is optimised, ensuring the actuator's longevity. Furthermore, protected by a wiper ring and a stainless steel shaft, the worm screw is designed for use in dusty or sandy environments, as well as in harsh weather conditions.
The FACE gears allow reduced sensitivity to misalignment, low transmission errors, and silent motor operation.
Features
A non-reversible 24 Vdc electromechanical gear motor designed for heavy-duty use, featuring an integrated encoder.
The TRUST24 control unit ensures standby power consumption of less than 0.8 W.
The encoder provides optimal safety and accuracy during gate operation.
Includes an amperometric sensor for obstacle detection to prevent crushing.
Features patented FACE gears, which have cogs on the face.
First Fence has a full range of gate automation products and accessories for you to choose from, as well as a huge range of gates, including access gates, including palisade, mesh, railings, and specialist and custom offerings.
Here to help
If you need any assistance with this product range, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Length | 1175mm |
| Motor Supply | 24 Vdc |
| Maximum Absorbed Current | 5.5 A |
| Maximum Thrust | 1500 N |
| Opening Time | 11 Seconds |
| Duty Cycle | 99% |
| Maximum Stroke | 300mm |
| Protection Level | IP44 |
| Encoder | Yes |
| Built In Physical Stops | Yes |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 2.5m |
| Wind Loading | 25% |
| Motor Type | Electromechanical |
| Gate Usage | Residential |
| Fixing Bracket Type | Screw on |
| Compatible Control Panels | Trust24 |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
Specifications & Downloads
| Length | 1175mm |
| Motor Supply | 24 Vdc |
| Maximum Absorbed Current | 5.5 A |
| Maximum Thrust | 1500 N |
| Opening Time | 11 Seconds |
| Duty Cycle | 99% |
| Maximum Stroke | 300mm |
| Protection Level | IP44 |
| Encoder | Yes |
| Built In Physical Stops | Yes |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 2.5m |
| Wind Loading | 25% |
| Motor Type | Electromechanical |
| Gate Usage | Residential |
| Fixing Bracket Type | Screw on |
| Compatible Control Panels | Trust24 |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
