3.0m High x 5.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
Product Description
3.0m High x 5.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit

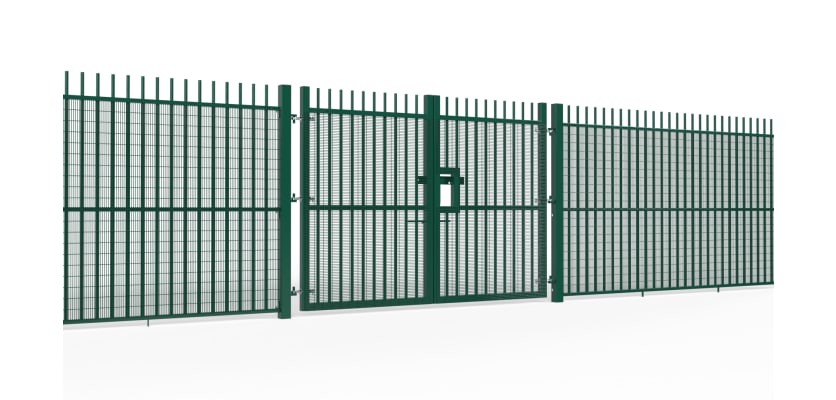

When securing primary vehicle entrances at the most sensitive sites, the EnviroProtect® 3.0m x 5.0m Double Leaf Gate delivers unrivalled protection. Its imposing 3.0m height prevents scaling attempts, while the expansive 5.0m clear width provides smooth access for HGVs, service vehicles, and plant machinery. Reinforced with welded 358 ‘prison mesh’ and certified to LPS 1175 A1 (SR1), this system is engineered for sites where only the highest levels of perimeter security will do.
Our EnviroProtect anti-climb gates are designed to integrate seamlessly with EnviroProtect anti-climb fencing systems, ensuring consistent strength, security, and appearance across the entire perimeter.
Certified Anti-Climb Protection
Tested to the LPS 1175 A1 (SR1) standard, this gate is proven to resist a forced entry attempt for a minimum of 60 seconds using basic hand tools. The dense 358 mesh infill removes hand and footholds, creating a virtually unclimbable surface while delivering excellent resistance to cutting tools. This dual protection ensures an access point that is both certified and practically impenetrable.
Designed for Heavy-Duty Reliability
Each gate leaf is manufactured from a 60x60mm box-section frame with a fully welded 358 mesh infill for rigidity. The system is anchored by substantial 100x100x3mm hinge posts, built to carry the weight and leverage of wide-span leaves at full height. As standard, the gate is pre-galvanised steel to BS EN 10346, with the option of a polyester powder coating in a wide range of RAL colours.
Key Specifications
- Height: 3.0m (3000mm) certified
- Clear opening width: 5.0m (5000mm)
- Overall width: 5430mm
- Leaf construction: 60x60mm frame with welded 358 mesh
- Posts: 100x100x3mm heavy-duty hinge posts
Flexible Installation Options
Supplied with both mounting systems for site adaptability:
- Bolt-down posts (3000mm) are ideal for fixing to existing concrete bases
- Dig-in posts (3700mm) are for casting into new deep concrete foundations for maximum stability
Where It’s Used
This 5.0m wide, high-security gate is designed for demanding environments such as:
- Logistics hubs and depots
- Distribution centres
- MOD and defence facilities
- Utility and energy infrastructure
- Critical National Infrastructure sites
Get in Touch
Let us help you specify the right gate for your project. For a free, no-obligation quotation, please call our team on 01283 512 111 or email your requirements to sales@firstfence.co.uk.
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 5000mm |
| Total Width | 5430mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 5000mm |
| Total Width | 5430mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
