3.0m High x 2.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
Product Description
3.0m High x 2.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit

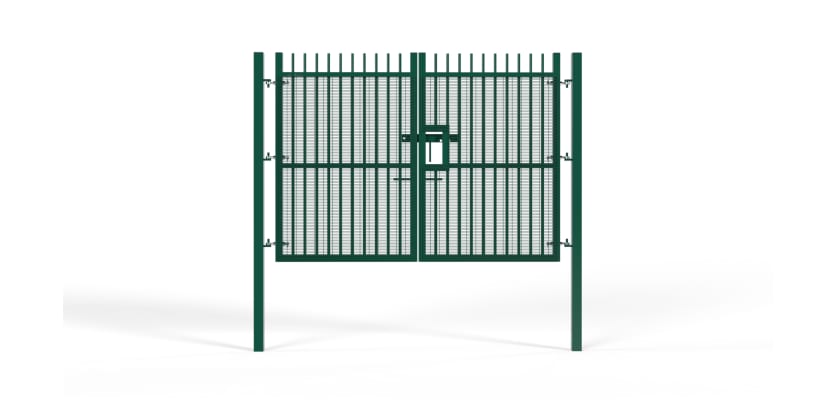

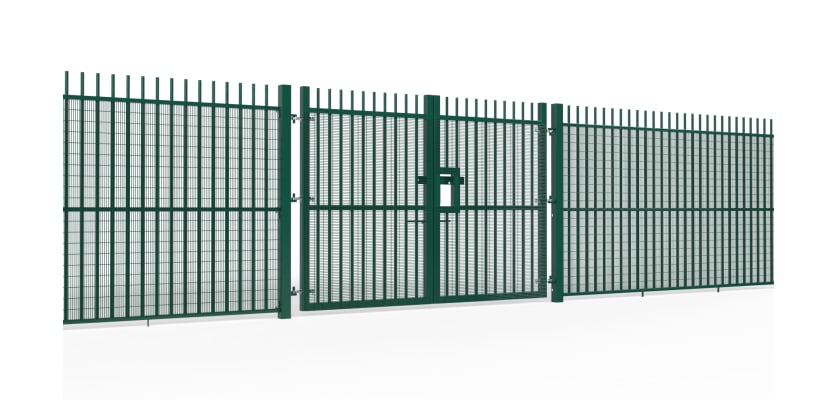

When maximum perimeter security is non-negotiable, the EnviroProtect® 3.0m Anti-Climb Double Leaf Gate Kit sets the standard. Standing at our tallest available height and spanning 2.0m wide, it pairs accessibility with formidable protection. Featuring welded 358 ‘prison mesh’ and independently certified to LPS 1175 A1 (SR1), this gate is engineered to secure wider pedestrian or small vehicle entry points at the highest-risk locations. Our EnviroProtect anti-climb gates are designed to integrate seamlessly with EnviroProtect anti-climb fencing systems, ensuring consistent strength, security, and appearance across the entire perimeter.
Certified Strength with Anti-Climb Design
This system is built to resist intrusion on every level. Its LPS 1175 A1 (SR1) rating confirms resilience against opportunistic tool attacks, while the 3.0m infill of 358 mesh eliminates climbing attempts and delivers exceptional cut resistance. Together, these elements create a barrier designed to withstand determined breaches—ideal for sites where total security is essential.
Built for Long-Term Durability
Each leaf is manufactured from 60x60mm box-section framing, securely housing the 358 mesh for superior rigidity. Heavy-duty construction ensures strength under pressure, while pre-galvanised steel components protect against rust and corrosion. The result: a gate system that maintains its integrity and performance over years of demanding use with minimal maintenance.
Technical Details
- Height: 3.0m (3000mm) certified
- Clear opening width: 2.0m (2000mm)
- Overall width: 2430mm
- Leaf construction: 60x60mm frame with welded 358 mesh
- Posts: 80x80x3mm heavy-duty hinge posts
Flexible Installation Options
Choose the mounting solution that suits your project:
- Bolt-down posts (3000mm) for installation onto existing concrete surfaces
- Dig-in posts (3700mm) for permanent, concrete-set foundations
Where It’s Used
The 3.0m Anti-Climb Double Leaf Gate is the go-to option for critical facilities requiring uncompromising security. Common applications include:
- MOD bases
- Correctional facilities
- Utilities
- Data centres
- Sensitive government or commercial compounds
Get in Touch
To specify certified protection for your most critical access points, please contact our security specialists. You can reach us by phone on 01283 512 111, by email at sales@firstfence.co.uk, or by using the Live Chat feature available on our website during business hours.
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2430mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 2 |
| 80x80mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2430mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 2 |
| 80x80mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
