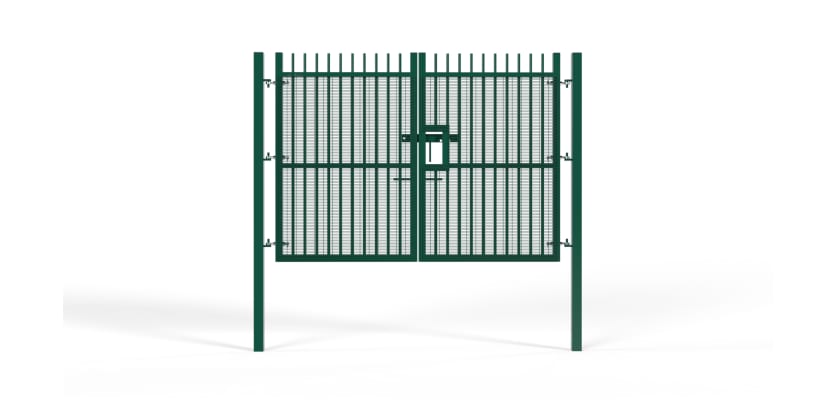

1.8m High x 5.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
Product Description
1.8m High x 5.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
When your site requires maximum access for HGVs and larger vehicles without sacrificing security, the 5.0m wide EnviroProtect® Anti-Climb Double Leaf Gate is the ultimate solution. Standing at 1.8m high and tested to LPS 1175 A1(SR1), this gate provides a certified, uncompromising defence for busy industrial and commercial entrances. It's fully welded 358 ‘prison mesh’ infill creates an unclimbable and cut-resistant barrier, while heavy-duty 100x100mm posts guarantee long-term stability across the wide span.
Dual-Layered Defence: Certified & Anti-Climb
This system combines formal certification with advanced physical deterrence. The LPS 1175 A1(SR1) rating verifies its ability to resist forced entry attempts with tools for at least 60 seconds, creating a critical security delay. The 358 mesh enhances this protection with a dense aperture design that prevents climbing and resists hand tool attacks, ensuring all-round defence against intrusion.
Engineered for Endurance
Every component of this gate is designed to perform under pressure. Twin 60x60mm leaf frames are strengthened by fully welded mesh panels, while reinforced 100x100x3mm hinge posts carry the weight and leverage of the 5.0m span with ease. As standard, the gate is pre-galvanised steel to BS EN 10346, with the option of a polyester powder coating in a wide range of RAL colours.
Technical Specification
- Height: 1.8m (1800mm)
- Clear Width: 5.0m (5000mm)
- Total Width: 5430mm including posts
- Leaf Frame: 60x60mm with 358 mesh infill
- Posts: Heavy-duty 100x100x3mm hinge posts
- Finish: Pre-galvanised steel
Flexible Installation Options
Supplied with both Bolt-Down (1800mm) and Dig-In (2500mm) post types, this kit adapts to all surface conditions. Bolt-Down posts are ideal for existing concrete bases, while Dig-In posts allow for deep, cast-in foundations to withstand high physical stress.
Applications & Integration

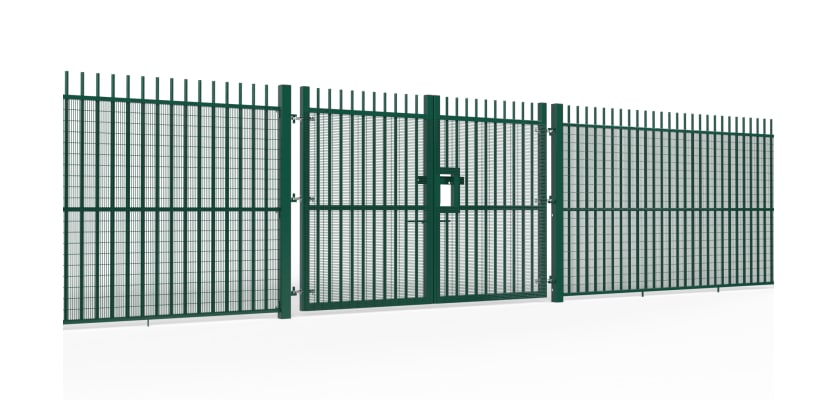

Perfect for securing major access points at logistics yards, distribution hubs, and high-traffic industrial facilities. The wide double-leaf design enables smooth entry for large vehicles, while still allowing one leaf to be used for controlled pedestrian or small vehicle access. It integrates seamlessly with the EnviroProtect® Anti-Climb railing system for a fully secure perimeter.
Get in Touch
Let us help you specify the right gate for your project. For a free, no-obligation quotation, please call our team on 01283 512 111 or email your requirements to sales@firstfence.co.uk. You can also speak to a specialist directly using our website's Live Chat service.
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 5000mm |
| Total Width | 5430mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 5000mm |
| Total Width | 5430mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Product Description
1.8m High x 5.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
When your site requires maximum access for HGVs and larger vehicles without sacrificing security, the 5.0m wide EnviroProtect® Anti-Climb Double Leaf Gate is the ultimate solution. Standing at 1.8m high and tested to LPS 1175 A1(SR1), this gate provides a certified, uncompromising defence for busy industrial and commercial entrances. It's fully welded 358 ‘prison mesh’ infill creates an unclimbable and cut-resistant barrier, while heavy-duty 100x100mm posts guarantee long-term stability across the wide span.
Dual-Layered Defence: Certified & Anti-Climb
This system combines formal certification with advanced physical deterrence. The LPS 1175 A1(SR1) rating verifies its ability to resist forced entry attempts with tools for at least 60 seconds, creating a critical security delay. The 358 mesh enhances this protection with a dense aperture design that prevents climbing and resists hand tool attacks, ensuring all-round defence against intrusion.
Engineered for Endurance
Every component of this gate is designed to perform under pressure. Twin 60x60mm leaf frames are strengthened by fully welded mesh panels, while reinforced 100x100x3mm hinge posts carry the weight and leverage of the 5.0m span with ease. As standard, the gate is pre-galvanised steel to BS EN 10346, with the option of a polyester powder coating in a wide range of RAL colours.
Technical Specification
- Height: 1.8m (1800mm)
- Clear Width: 5.0m (5000mm)
- Total Width: 5430mm including posts
- Leaf Frame: 60x60mm with 358 mesh infill
- Posts: Heavy-duty 100x100x3mm hinge posts
- Finish: Pre-galvanised steel
Flexible Installation Options
Supplied with both Bolt-Down (1800mm) and Dig-In (2500mm) post types, this kit adapts to all surface conditions. Bolt-Down posts are ideal for existing concrete bases, while Dig-In posts allow for deep, cast-in foundations to withstand high physical stress.
Applications & Integration
Perfect for securing major access points at logistics yards, distribution hubs, and high-traffic industrial facilities. The wide double-leaf design enables smooth entry for large vehicles, while still allowing one leaf to be used for controlled pedestrian or small vehicle access. It integrates seamlessly with the EnviroProtect® Anti-Climb railing system for a fully secure perimeter.
Get in Touch
Let us help you specify the right gate for your project. For a free, no-obligation quotation, please call our team on 01283 512 111 or email your requirements to sales@firstfence.co.uk. You can also speak to a specialist directly using our website's Live Chat service.
