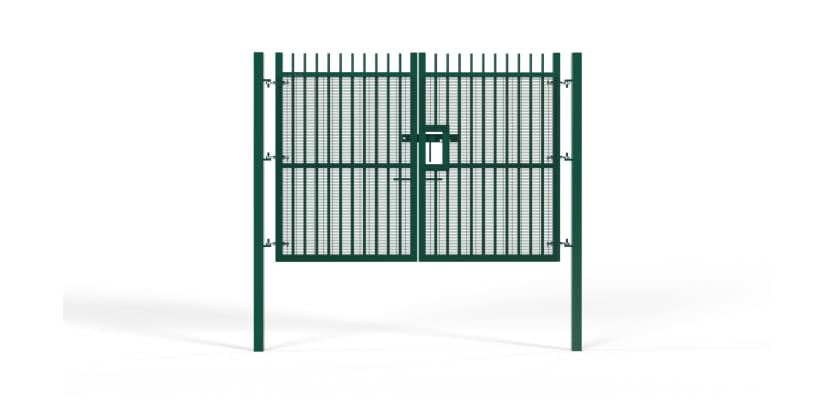

1.8m High x 4.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
Product Description
1.8m High x 4.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
For sites needing a wide vehicle entrance without sacrificing certified protection, the 1.8m x 4.0m EnviroProtect® Anti-Climb Double Leaf Gate Kit delivers the perfect balance of accessibility and high security. Designed to handle traffic from large vans and machinery, this system combines strength, certification, and practicality. Its fully welded 358 ‘prison mesh’ infill forms a formidable anti-climb and anti-cut barrier, while heavy-duty 100x100mm uprated posts provide the structural integrity needed for the larger span. Certified to LPS 1175 A1(SR1), it offers proven resistance against forced entry, making it a dependable choice for demanding industrial and commercial applications.
Certified Anti-Climb Protection
The gate’s dual defence is built on certified testing and robust engineering. The SR1 rating confirms the gate can resist a sustained attack using common hand tools, buying essential time to stop intruders. Reinforcing this, the 358 mesh’s tight apertures prevent climbing and resist cutting, ensuring your site perimeter remains secure against both opportunistic and determined intrusion attempts.
Strength Built for Heavy-Duty Use
Each gate leaf is manufactured from a solid 60x60mm box section frame with fully welded 358 mesh, delivering rigidity and strength. The uprated 100x100x3mm posts are specifically chosen to support the wider leaves, ensuring the system remains reliable under pressure and avoids sagging over time. As standard, the gate is pre-galvanised steel to BS EN 10346, with the option of a polyester powder coating in a wide range of RAL colours.
Technical Details
- Height: 1.8m (1800mm)
- Clear Access Width: 4.0m (4000mm)
- Overall Width: 4430mm
- Leaf Frame: 60x60mm with 358 mesh infill
- Posts: 100x100x3mm heavy-duty hinge posts
- Finish: Pre-galvanised finish with polyster powder coating finish
Flexible Installation
Supplied with both Bolt-Down posts (1800mm) for installation on hardstanding and Dig-In posts (2500mm) for use with concrete foundations, this kit ensures a secure and stable installation regardless of ground conditions.
Ideal Applications

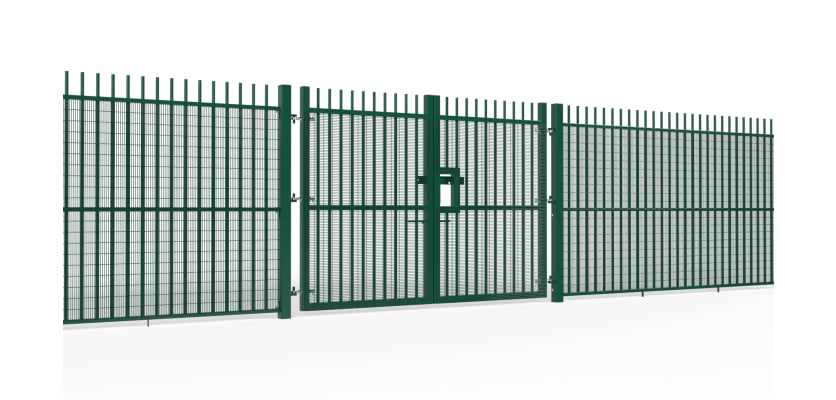

This wide double-leaf gate is perfectly suited for service yards, delivery depots, and industrial entrances that see regular heavy vehicle traffic. The twin-leaf design allows one or both sides to be opened, giving you flexibility for different types of access while maintaining maximum perimeter security. It is designed to integrate seamlessly with the EnviroProtect® Anti-Climb railing system for a consistent and secure boundary.
Get in Touch
Discuss your vehicle access requirements with our team today for guidance and a comprehensive quote. You can contact us by telephone on 01283 512 111 or send your enquiry via email to sales@firstfence.co.uk. Our team is also available on Live Chat through our website.
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 4000mm |
| Total Width | 4430mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 4000mm |
| Total Width | 4430mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
