3.0m High x 3.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Railing Gate Kit
Product Description

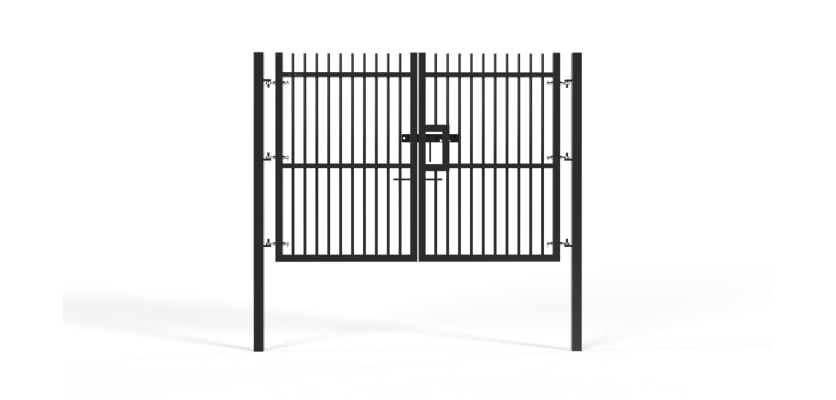

3.0m High x 3.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Railing Gate Kit
Secure your most critical vehicle access points with the commanding presence of the 3.0m wide, 3.0m high EnviroProtect® Double Leaf Gate Kit. This system is the clear choice for high-security perimeters, delivering an imposing barrier combined with a generous width for commercial vehicles. Its essential LPS 1175 A1(SR1) certification guarantees a tested level of protection, while our innovative low-weld technology ensures it is built for a long and reliable operational life with minimal upkeep, even in the most demanding locations.
EnviroProtect gates are engineered for perfect compatibility with our EnviroProtect fencing, providing a secure, durable, and visually consistent perimeter solution.
Understanding A1(SR1) Rated Security Railings
The A1(SR1) rating confirms this gate has been independently tested to resist a 60-second attack using basic tools. This standard, recognised by security professionals and insurers, ensures you are installing a product with a proven ability to delay and deter potential intruders, protecting your most valuable assets and infrastructure.
Innovative Low to No Weld Construction
The EnviroProtect® gate's exceptional durability comes from its pioneering low-weld construction. By replacing vulnerable welds with robust mechanical connections, we minimise the risk of corrosion and structural failure over time. This forward-thinking design ensures your security investment remains strong, reliable, and visually imposing for years to come.
Technical Specification and Design
This gate is engineered for maximum security and frequent use. It provides a certified height of 3.0 metres with a clear access width of 3000mm, while the total installed width is 3430mm. The system comprises two 60x60mm steel box section gate leaves, each supported by a robust 80x80x3mm hinge post to ensure stability and smooth operation. A professionally applied Polyester Powder Coated finish is standard for superior weather protection.
Installation Options
To ensure a secure foundation on any site, this versatile kit includes posts for both installation scenarios. The 3700mm dig-in posts are perfect for creating a new, secure concrete base, while the 3000mm bolt-down posts are designed for a straightforward installation onto existing hard standings.
Benefits and Applications
This 3.0m wide double gate is an excellent choice for securing the main vehicle entrances to sensitive sites, research facilities, and government buildings. The maximum 3.0m height provides the ultimate deterrent against unauthorised access, ensuring complete perimeter control.
Get in Touch
Ready to secure your site? For technical data sheets, quotations, and expert advice, contact our team. Call us on 01283 512 111, email sales@firstfence.co.uk, or connect with us via Live Chat on our website.
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3430mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Gate Leaf | 2 |
| 100x100mm Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3430mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Gate Leaf | 2 |
| 100x100mm Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
