3.0m High x 1.2m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Railing Gate Kit
Product Description
3.0m High x 1.2m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Gate Kit
When your highest security perimeters require wider pedestrian access, the 3.0m high by 1.2m wide EnviroProtect® gate provides the perfect solution. This gate combines a maximum-deterrent height with a more generous opening for personnel, DDA-compliant access, or the movement of small trollies. It carries the essential LPS 1175 A1(SR1) certification, ensuring its defensive capabilities are tested and proven. Built with our durable low-weld technology, this gate is designed to deliver uncompromising security and performance for years to come.
This gate is the optimal choice for secure personnel access points at the most sensitive locations. Its combination of extreme height, wider access, and certified strength makes it suitable for Critical National Infrastructure, border control points, and secure industrial complexes.
Understanding A1(SR1) Rated Security Railings
This gate's A1(SR1) rating is a critical feature, verifying that it has passed rigorous independent tests to withstand a 60-second assault using basic tools. For high-security sites, this certification is a fundamental requirement, providing assurance that the product meets a recognised standard of resistance against unauthorised entry.
Innovative Low to No Weld Construction
The remarkable longevity of the EnviroProtect® gate is a direct result of its advanced low-weld construction. This process minimises the use of corrosion-prone welds in favour of stronger, more durable mechanical connections. The result is a gate that stands up to the harshest conditions with minimal need for maintenance, delivering reliable security year after year.
Technical Specification and Design
This gate is engineered for maximum security and accessibility. It provides a certified height of 3.0 metres and a clear access width of 1200mm, with a total installed width of 1490mm. The gate leaf is constructed from a strong 60x60mm steel box section frame, hung from heavy-duty 80x80x3mm box section hinge and catch posts. A pre-galvanised finish is applied as standard for complete weather protection, with optional powder coating available.
Installation Options

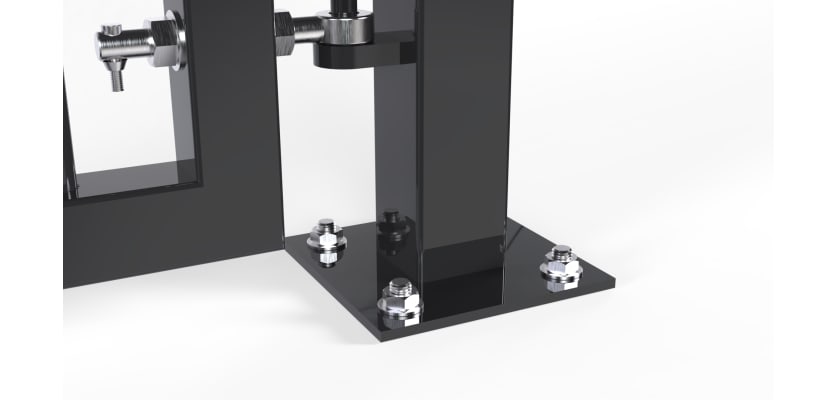

To ensure a secure foundation, this kit includes posts for both installation methods. The 3700mm dig-in posts are ideal for creating a new, immovable concrete base, while the 3000mm bolt-down posts provide a robust solution for fixing to existing hard surfaces.
Get in Touch
Ready to secure your site? For technical data sheets, quotations, and expert advice, contact our team. Call us on 01283 512 111, email sales@firstfence.co.uk, or connect with us via Live Chat on our website.
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 1200mm |
| Total Width | 1490mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Sliding Gate Leaf | 1 |
| 80x80mm Catch Gate Post | 1 |
| 80x80mm Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
