2.0m High x 5.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Railing Gate Kit
Product Description

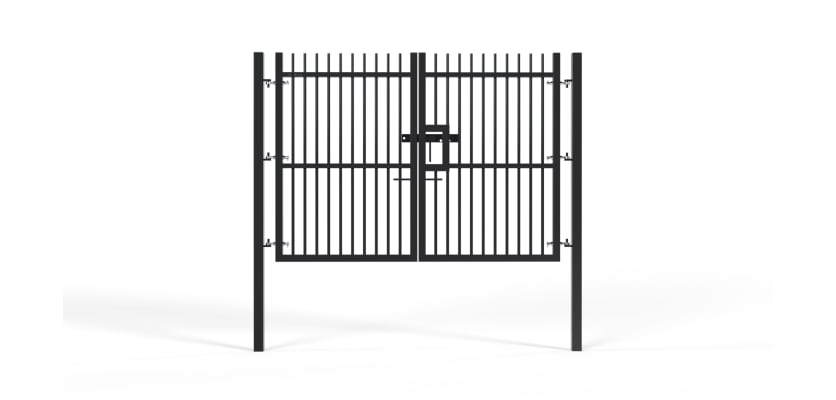

2.0m High x 5.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Gate Kit
The 2.0m high x 5.0m wide EnviroProtect® Double Leaf Gate Kit is engineered for sites requiring robust perimeter protection and wide, reliable vehicle access. The increased 2.0m height provides a strong theft deterrent, while the 5.0m span comfortably accommodates HGVs, large vans, and machinery. Supported by 100x100mm heavy-duty hinge posts and fully certified to LPS 1175 A1 (SR1), this gate offers proven resistance against intrusion, ensuring long-term strength and security for high-traffic commercial entrances.

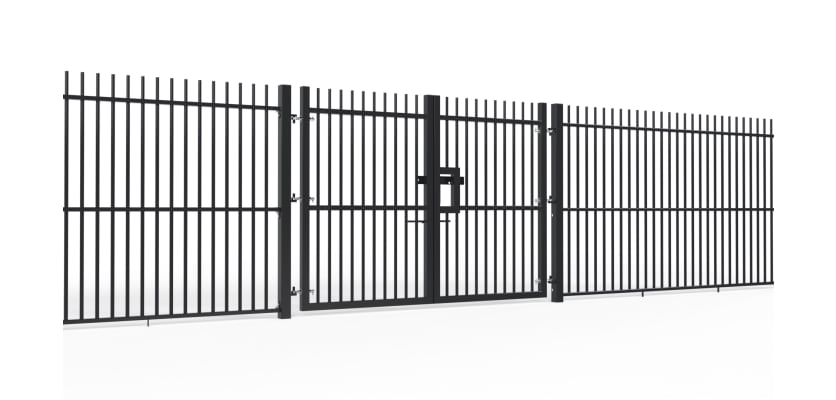

Our EnviroProtect gates are designed to integrate seamlessly with EnviroProtect fencing systems, ensuring consistent strength, security, and appearance across the entire perimeter.
Tested A1 (SR1) Security
This gate is independently certified to LPS 1175 A1 (SR1), confirming its ability to withstand a sustained 60-second physical attack using hand tools. This level of assurance not only deters opportunistic intruders but also helps meet insurance and compliance standards for high-security sites.
Advanced Low-to-No Weld Construction
The EnviroProtect® system uses innovative low-weld engineering, reducing the weak points common in traditional welded gates. Mechanical fixings provide superior structural integrity and long-lasting corrosion resistance. As standard, the gate is pre-galvanised steel to BS EN 10346, with the option of a polyester powder coating in a wide range of RAL colours.
Technical Specification
- Height: 2.0m (certified)
- Clear access width: 5000mm (5.0m)
- Overall width (inc. posts): 5430mm
- Frame: 60 x 60mm steel box section
- Hinge posts: 100 x 100 x 3mm heavy-duty steel
- Finish: Pre-galvanised steel
Installation Options
Supplied with both post types for flexible installation:
- 2000mm base-plated posts: bolt-down installation on hard surfaces
- 2700mm dig-in posts: set into new concrete foundations for maximum stability
Benefits & Applications
The combination of increased 2.0m height and a 5.0m wide span makes this gate the ideal solution for primary site entrances, such as:
- Logistics centres
- Distribution hubs
- Industrial estates
- High-security commercial yards
It is designed to provide maximum access without compromising perimeter security.
Get in Touch
Let us help you specify the right gate for your project. For a free, no-obligation quotation, please call our team on 01283 512 111 or email your requirements to sales@firstfence.co.uk. You can also speak to a specialist directly using our website's Live Chat service.
Specifications & Downloads
| Height | 2000mm [Installed] |
| Access Width | 5000mm |
| Total Width | 5430mm |
| Total Post Length | 2000mm [Bolt Down], 2700mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Gate Leaf | 2 |
| 100x100mm Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down Only] | 8 |
