2.0m High x 4.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Railing Gate Kit
| Height | 2000mm [Installed] |
| Access Width | 4000mm |
| Total Width | 4430mm |
| Total Post Length | 2000mm [Bolt Down], 2700mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
| Name | Quantity |
|---|---|
| EnviroProtect® Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down Only] | 8 |

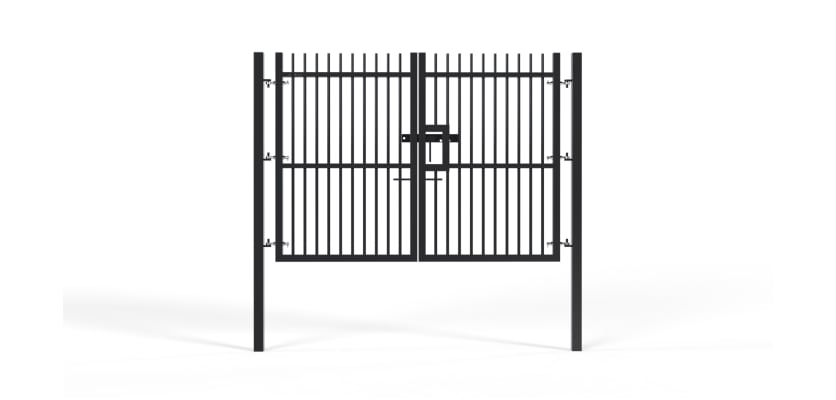

2.0m High x 4.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Gate Kit
The EnviroProtect® Double Leaf Gate Kit (4.0m wide x 2.0m high) is designed to secure busy access points where larger vehicles, such as vans and small lorries, require daily entry. The uprated 100x100mm hinge posts provide the strength needed to support the wider gate leaves, ensuring smooth operation and long-term durability. With its LPS 1175 A1 (SR1) certification, this gate delivers proven protection against unauthorised entry, making it a trusted choice for high-traffic commercial and industrial sites.
Our EnviroProtect gates are designed to integrate seamlessly with EnviroProtect fencing systems, ensuring consistent strength, security, and appearance across the entire perimeter.
Tested A1 (SR1) Security
Independently certified to LPS 1175 A1 (SR1), this gate is verified to resist at least a 60-second forced attack using common tools. This delay factor plays a vital role in deterring intruders and safeguarding high-value sites, giving you confidence that your perimeter meets strict security and insurance standards.
Advanced Low-to-No Weld Design
Unlike traditional welded gates, the EnviroProtect® range uses low-weld construction with high-strength mechanical fixings. This significantly reduces weak points where corrosion can form, resulting in a longer service life, reduced maintenance needs, and better all-weather performance. As standard, the gate is pre-galvanised steel to BS EN 10346, with the option of a polyester powder coating in a wide range of RAL colours.
Technical Specification
- Height: 2.0m (certified)
- Clear access width: 4000mm (4.0m)
- Overall width (inc. posts): 4430mm
- Frame: 60 x 60mm steel box section
- Hinge posts: 100 x 100 x 3mm heavy-duty steel (uprated for span)
- Finish: Pre-galvanised steel
Installation Options
Supplied with posts for both installation methods:
- 2000mm base-plated posts: for bolt-down installation on existing hard surfaces
- 2700mm dig-in posts: for casting into new concrete foundations
This flexibility ensures a secure, stable installation in any environment.
Benefits & Applications
The 2.0m height provides a strong visual and physical deterrent, while the 4.0m span accommodates wider vehicles with ease. Perfect for:
- Service yards
- Delivery bays
- Industrial estates
- Secure compounds and storage facilities
