1.8m High x 5.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Railing Gate Kit
Product Description

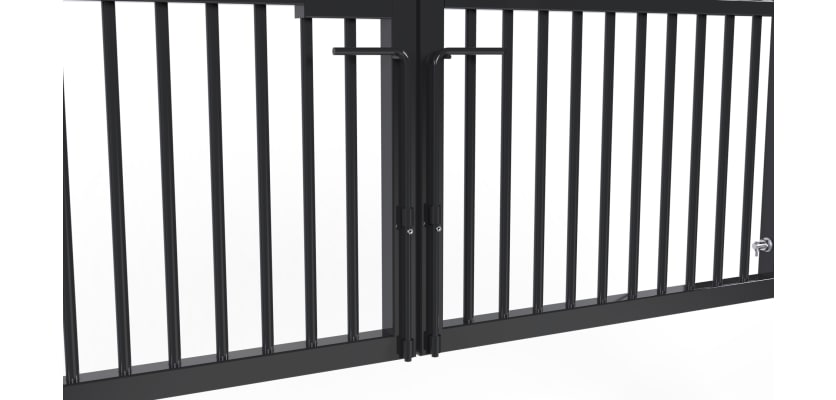

1.8m High x 5.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Gate Kit
The EnviroProtect® Double Leaf Gate Kit (5.0m wide x 1.8m high) is designed for major vehicle access points where uncompromising security and durability are essential. With its expansive 5.0m clear opening, this gate is perfect for HGVs, delivery fleets, and high-traffic industrial routes. Fully certified to LPS 1175 A1 (SR1), it delivers proven attack resistance and dependable perimeter protection. Built with heavy-duty 100 x 100mm hinge posts, the gate ensures stability, smooth operation, and long-term performance across its substantial span.
Certified A1 (SR1) Protection
Independently tested to LPS 1175 A1 (SR1), this gate system withstands a sustained one-minute attack using hand tools commonly carried by intruders. This level of certification provides reassurance to businesses, site managers, and insurers that your access points meet stringent modern security standards.
Smarter Low-to-No Weld Construction
By reducing reliance on welds and using high-strength mechanical fixings, the EnviroProtect® system eliminates weak points vulnerable to corrosion. The result is a robust, low-maintenance gate with extended service life and reduced long-term costs. As standard, the gate is pre-galvanised steel to BS EN 10346, with the option of a polyester powder coating in a wide range of RAL colours.
Technical Details
- Height: 1.8m (certified)
- Clear access width: 5000mm (5.0m)
- Overall width (inc. posts): 5430mm
- Frame: 60 x 60mm steel box section
- Hinge posts: 100 x 100 x 3mm heavy-duty steel

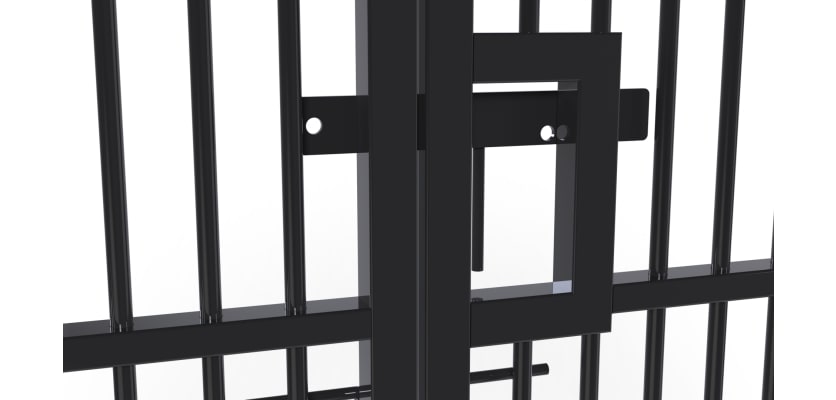

- Leaf operation: One leaf secured with a drop bolt; one active leaf for daily use
- Finish: Pre-galvanised steel
Installation Options
Supplied with posts for both installation methods:
- 2500mm dig-in posts: Concrete-in for maximum strength
- 1800mm base-plated posts: Bolt-down onto existing hardstanding
Benefits & Applications
With its wide span and twin-leaf configuration, this gate is an ideal choice for primary entrances at:
- Logistics hubs
- Distribution centres
- Industrial parks
- Transport yards
It allows easy movement of large vehicles while maintaining a secure, professional boundary.
Get in Touch
Let us help you specify the right gate for your project. For a free, no-obligation quotation, please call our team on 01283 512 111 or email your requirements to sales@firstfence.co.uk. You can also speak to a specialist directly using our website's Live Chat service.
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 5000mm |
| Total Width | 5430mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Gate Leaf | 2 |
| 100x100mm Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 5000mm |
| Total Width | 5430mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Gate Leaf | 2 |
| 100x100mm Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
