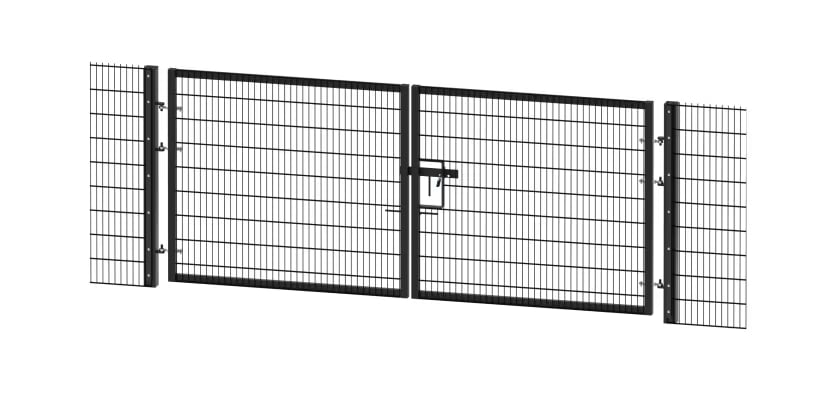

2.4m x 5.0m Wide ProFence® SR1 (A1) LPS 1175 868 Mesh Double Leaf Gate Kit
Product Description
2.4m x 5.0m Wide ProFence® SR1 (A1) LPS 1175 868 Mesh Double Leaf Gate Kit
First Fence presents the ProFence® SR1 (A1) rated LPS 1175 358 mesh fencing and gate system, a sophisticated solution for many high-security perimeter and access control applications.
What is an SR1 (A1) rated security fencing system?
ProFence® from First Fence is a cost-effective, mighty security mesh system that has achieved certification under the exacting LP 1175 A1 (SR1) standards. This rating specifies a one-minute delay against opportunistic, hostile attacks using Toolkit A tools, including pliers, glass cutters, bolt cutters, spanners and engineer’s hooks. SR1 (A1) ratings and LPS 1175 standards are the benchmarks for resisting determined attempts at forced entry into premises holding high-value assets. This one-minute delay can provide on-site security teams with a window of opportunity to intercept trespassers before they breach the security perimeter.
First Fence's ProFence® collection offers fence kits in both 358 Prison Mesh and 868 Twin Mesh, featuring a variety of height options. In addition, our expertly designed single and double gates seamlessly complement the ProFence® fencing system. This product range has certainly deserved its place in the Red Book.
Features and Benefits
First Fence's security-rated mesh gate, with a double-leaf configuration, is fabricated from high quality steel which has been hot dip galvanised, to meet the ISO 1461 standards. Each of the gates is then coated with a durable polyester powder layer, which provides the product with protection against rust, corrosion, damage and daily wear and tear. It is available in a range of RAL colours and can be matched to an existing scheme or corporate branding.
The gate is infilled with the distinctive 868 Mesh, also known as Twin Mesh due to its double horizontal wires. This double wire formation makes the wire mesh very strong and creates a narrow mesh pattern that will obstruct the passage of objects while making scaling or cutting a challenge. It is particularly suitable for scenarios where clear visibility is a top priority, especially when integrated with CCTV systems.
The gate kit includes six adjustable gate eyes, guaranteeing that even in the unlikely event of a hinge failure, the gate remains secure, averting accidents, damage, or injuries. Each adjustable gate eye bolt is securely fastened with a snap-off nut, reducing the risk of post-installation removal. Two Drop Bolts enhance the security of your security-rated double gate.
Installation made simple
Installing this gate is a relatively straightforward process. First Fence's SR1-rated mesh gate kit is available in both dig-in and bolt-down formats, accommodating a wide array of ground conditions. Begin by to assessing the ground where you intend to install the gate before making your purchase. Soft soil or grassy areas need the dig-in option, while concrete or solid ground requires bolt-down posts.
The bolt-down kit includes essential ground anchor bolts. If you select the dig-in kit, adding Post Mix to your order is advisable, with a recommended four bags per post for a sturdy installation. Post Mix is also available in larger, bulk quantities should you need larger amounts. You should use either C20 or C25 post mix.
This gate serves both pedestrian access and small vehicles like forklifts. The sliding latch bolt securely keeps the leaves closed, while the drop bolts ensure their steadfast positioning. You retain the flexibility to open one or both leaves in accordance with your specific requirements. This is one of the larger width gates, for other heights and widths see our full selection.
A recommended range of approved Secure By Design (SBD) padlocks is available.
Contact Us
For any questions concerning First Fence's ProFence® product range, please do not hesitate to reach out to us. Our dedicated sales team is poised to assist you with your order and can be reached at 01283 512111 or via our online chat system.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 5000mm |
| Box Sections of Posts | 100 x 100mm |
| Gate Hanging Side | Right Hand Hung (From Outside Looking In) |
| Thickness of Wires | [Horizontal: 8mm] [Vertical: 6mm] |
| Material | Hot Dip Galvanised Steel |
| PPC colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 |
What's Included
| Name | Quantity |
|---|---|
| Sliding Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Hinge Gate Post | 2 |
| Drop Bolts | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Insert for Gate Post | 2 |
| Ribbed Insert for Gate Frame | 4 |
| Ground Anchor Bolts [Bolt Down Version] | 8 |
