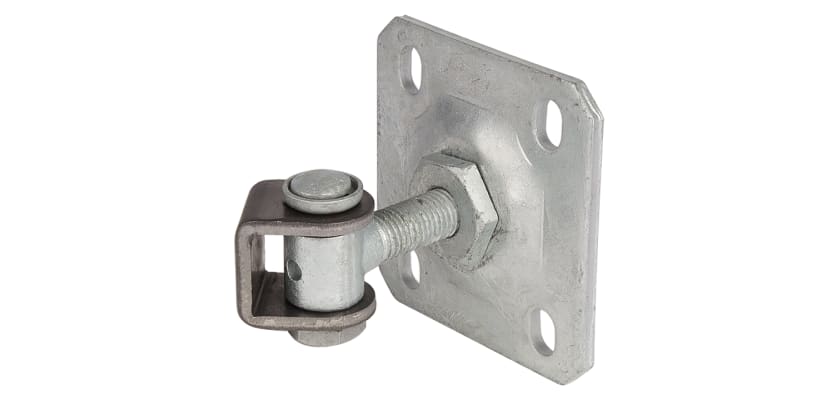

Locinox G90WP Vandal-Proof One-Way 90° Hinge With Adjustable Steel Wall Plate
Product Description
Locinox G90WP Vandal-Proof One-Way 90° Hinge With Adjustable Steel Wall Plate
The Locinox G90WP Vandal-Proof One-Way 90° Hinge is a secure and practical hinging solution for small industrial gates. Supplied individually, these hinges are hot-dip galvanised to provide excellent corrosion resistance and long-term durability in demanding outdoor environments.
Designed with vandal resistance in mind, the G90WP prevents tampering with the eyebolt when the gate is closed, enhancing overall gate security. The inclusion of an adjustable steel wall plate allows accurate alignment during installation, while the adjustable system ensures reliable gate positioning over time. With a one-way 90° opening angle, this hinge pair is ideal for applications where controlled gate movement and robustness are essential.
The G90WP’s integrated wall plate facilitates a rock-solid mechanical connection to masonry or brickwork, effectively bridging the gap between heavy-duty hardware and traditional building materials. This ensures your vandal-resistant perimeter remains completely uncompromised.
Please note this product is NOT sold in pairs - 1 Unit is 1 Hinge Set
Key Features
- Supplied and sold individually
- Vandal-proof design prevents eyebolt tampering
- Hot-dip galvanised finish for corrosion resistance
- One-way 90° opening angle for small industrial gates
- Adjustable steel wall plate for precise alignment
- Strong and durable construction for secure installations
Applications
The Locinox G90WP Vandal-Proof Hinge is suitable for:
- Small industrial and pedestrian gates
- Installations requiring enhanced security and tamper resistance
- Residential, commercial, and industrial environments
- New builds and retrofit gate projects
Contact Us
For advice on hinge selection or installation support, contact our team. Call us on 01283 512 111, email sales@firstfence.co.uk, or connect via live chat for more information.
Specifications & Downloads

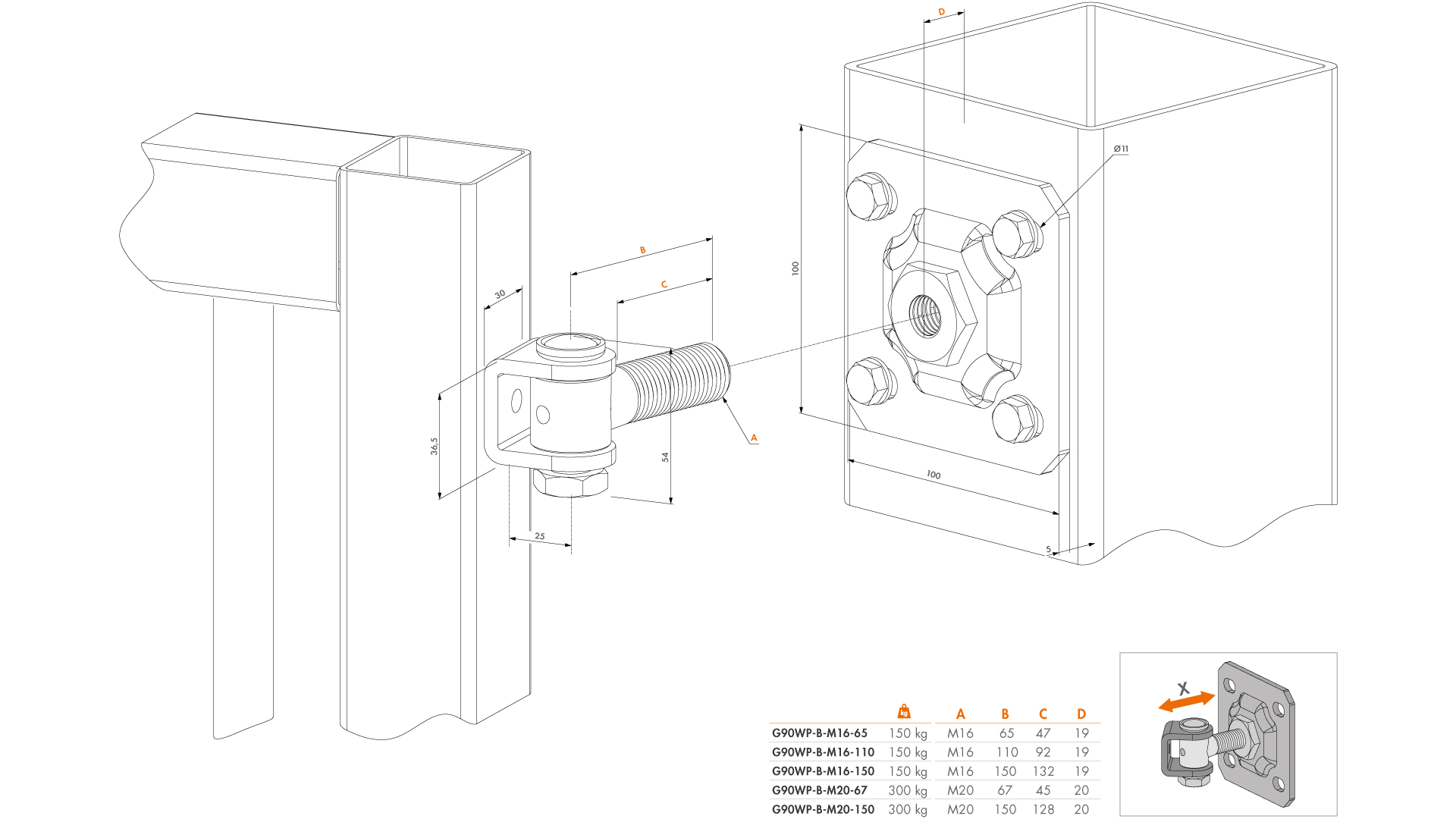

| Length | 65mm - 150mm |
| Height | 54mm |
| Width | 30mm |
| Movement Angle | 90° |
| Finish | Black Steel |
| Maximum Gate Weight | 300kg |
What's Included
| Name | Quantity |
|---|---|
| Eyebolt | 1 |
| Earplate | 1 |
| Wallplate | 1 |
Specifications & Downloads
| Length | 65mm - 150mm |
| Height | 54mm |
| Width | 30mm |
| Movement Angle | 90° |
| Finish | Black Steel |
| Maximum Gate Weight | 300kg |
What's Included
| Name | Quantity |
|---|---|
| Eyebolt | 1 |
| Earplate | 1 |
| Wallplate | 1 |
