Locinox 3970LS Drilling Jig
Product Description
Locinox 3970LS Drilling Jig

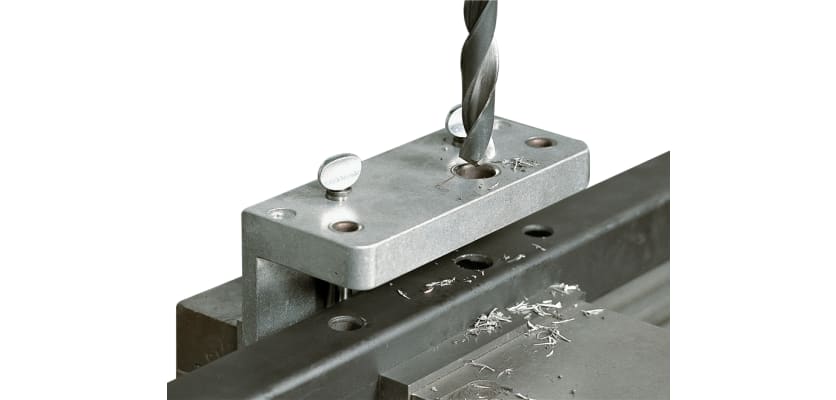

The Locinox 3970LS Drilling Jig is a precision installation tool designed to prepare gate and strike posts for sliding gate locks and corresponding keeps. Engineered for accuracy and consistency, this jig ensures professional alignment and reliable fitment of Locinox sliding gate locking systems.
Available in adjustable versions to suit post profiles of 40–50–60 mm or 60–80 mm, the 3970LS drilling jig guarantees perfect centre alignment of the Locinox lock and keep on the posts. This improves installation efficiency, reduces fitting errors, and supports long-term lock performance.
The Locinox 3970LS Drilling Jig is specifically engineered to address the tighter tolerances required for sliding gate mechanisms. Unlike swing gates, sliding locks require absolute vertical and horizontal synchronisation between the hook-bolt and the catch-keep to prevent jamming. By providing a fixed, vibration-resistant template, this jig eliminates "drill-creep," ensuring that the hook-bolt engages smoothly and securely every time the gate reaches the closed position.
Key Features
- Drilling jig for preparing gate and strike posts
- Designed for sliding gate locks and matching keeps
- Adjustable versions for 40–50–60 mm or 60–80 mm profiles
- Ensures perfect centre alignment of the Locinox lock and keep
- Improves installation accuracy and efficiency
Applications
The Locinox 3970LS Drilling Jig is suitable for:
- Preparing posts for Locinox sliding gate locks
- Accurate installation of the corresponding Locinox keeps
- Professional gate fabrication and installation work
- New build and retrofit sliding gate projects
Contact Us
For guidance on selecting the correct version or advice on compatibility with your locking system, please call 01283 512111 or use our online chat service. Our team will be happy to help.
Specifications & Downloads
| Height | 100mm |
| Width | 170mm |
| Depth | 70mm |
| Compatible Profiles | 40mm, 50mm, 60mm, 60-80mm |
