KTOM3024ME Above Ground Telescopic Double Leaf Swing Gate Operator Kit - Up to 3.0m Leaf
| Motor Supply | 24 Vdc |
| Gate Usage | Residential |
| Motor Type | Electromechanical |
| Duty Cycle | 99% |
| Wind Loading | 25% |
| Built In Physical Stops | Yes |
| Fixing Bracket Type | Screw on |
| Protection Level | IP44 |
| Encoder | Yes |
| Max Gate Width | 2.5m |
| Name | Quantity |
|---|---|
| TOM3024E Above Ground Swing Gate Operator | 2 |
| Trust24 Control Panel | 1 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
| AWO Long Range Aerial | 1 |
KTOM3024ME Above Ground Telescopic Double Leaf Swing Gate Operator Kit - Up to 3.0m Leaf
The KTOM3024E is a complete kit containing all the components necessary to transform a double, manual gate into an automated product.

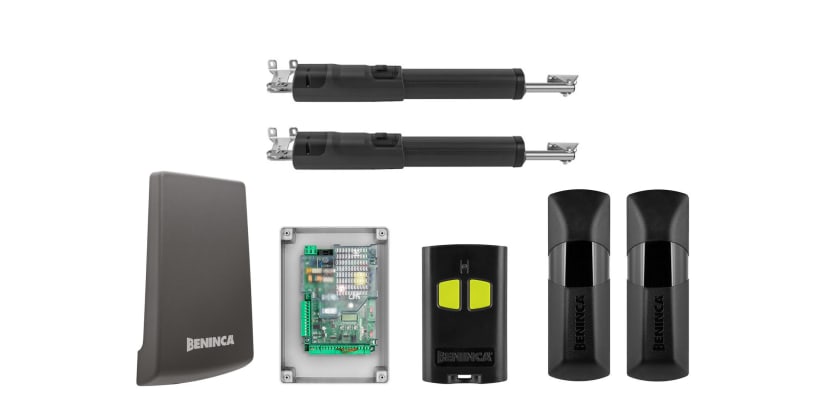

Kit Contents

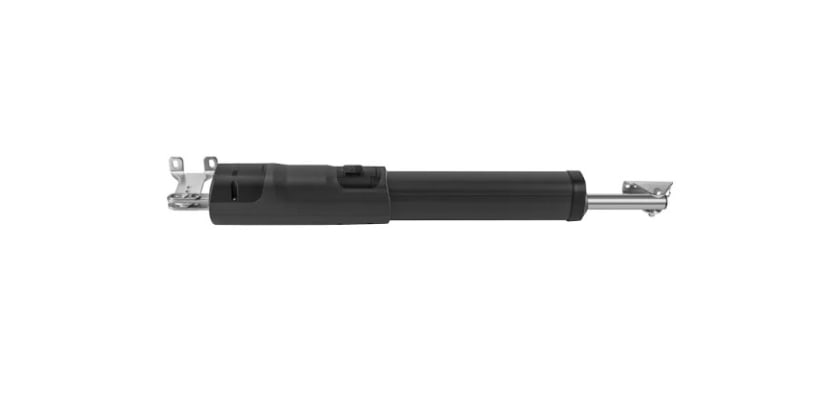

TOM3024E Swing Gate Operator (x2)
The TOM3024E Swing Gate Operator is a 24 Vdc linear telescopic unit for gates up to 2.5m, ideal for intensive residential use. It has a high-quality motor with two adjustable mechanical stops for smooth opening and closing, easily accessed under the shaft's metal cover.
Compact at just 96mm wide, it offers simple installation with screw-in brackets. Its 45° wiring cable angle minimizes ground clearance, while aligned rear and front brackets improve load distribution. A wiper ring and stainless steel shaft protect the worm screw, making it durable in harsh weather or dusty environments.

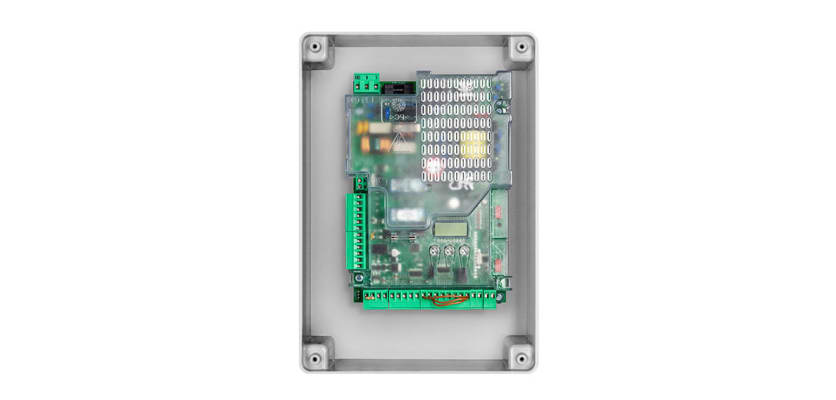

Trust24 Control Panel
The Trust.24 is designed for use with the TOM series gate control motors. It features an integrated LCD display and radio receiver. It has a range of programmable features and is compatible with remote transmitters.
PUPILLA Hard Wired Photocells - 1 pair
PUPILLA photocells are essential for gate automation, providing safety by creating an invisible beam near gate openings. They detect obstacles or movement, causing the gate to stop or reverse, preventing accidents and damage.
TO.GO2VA Transmitter
The TO.GO2VA is a flexible transmitter for gate automation, capable of controlling two functions or gates, perfect for properties with multiple gates or separate entry and exit commands. It features secure coding technology to prevent unauthorized access and comes with two TO.GO2VA transmitters.

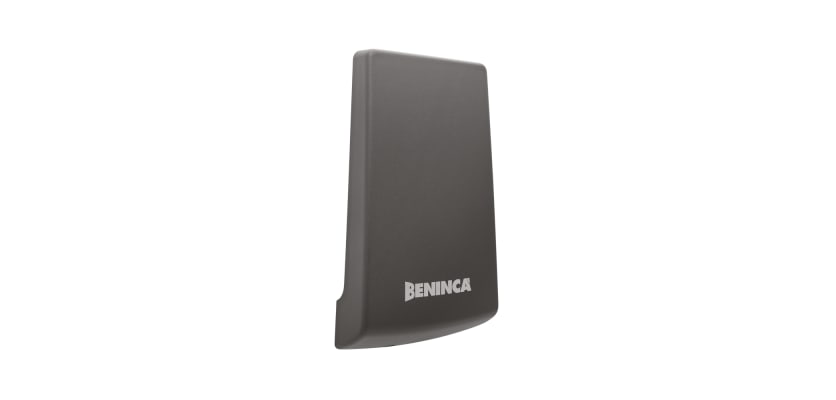

AWO Long Range Aerial
Long-range aerials enhance gate automation systems by increasing the range and reliability of remote control functions. Ideal for properties with long driveways, they allow gates to be operated from a greater distance. This kit includes one AWO long-range aerial, designed for external installation, with a 5m shielded RG58 cable and an IP54-rated box.
First Fence has a full range of gate automation products and accessories for you to choose from, as well as a huge range of gates, including access gates, including palisade, mesh, railings, and specialist and custom offerings.
