HD.35AC Above Ground Hydraulic Swing Gate Operator
| Length | 1177mm |
| Motor Supply | 230 Vac |
| Maximum Absorbed Current | 1.1 A |
| Maximum Thrust | 5000 N |
| Duty Cycle | 99% |
| Stroke Length | 270mm |
| Protection Level | IP55 |
| Encoder | No |
| Built In Physical Stops | No |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 3.5m |
| Motor Type | Hydraulic |
| Gate Usage | Commercial |
| Fixing Bracket Type | Weld on |
| Compatible Control Panel | Brainy |
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
HD.35AC Above Ground Hydraulic Swing Gate Operator
The HD.35AC Above Ground Hydraulic Swing Gate Operator is a versatile solution designed for gates up to 3.5m in width.
An irreversible gate operator ensures top-tier security and dependability by eliminating unauthorised manual intervention; once the gate is either closed or opened, it cannot be manually altered. These operators are preferred in settings prioritising security, such as airports, industrial sites, or secure facilities. Their design guarantees that they remain firmly closed or open until activated by authorised personnel, enhancing overall security measures.
Crafted from premium materials, this operator ensures dependable performance, straightforward installation, and maintenance ease.
Features
The HD.35AC hydraulic gate operator is designed for gates up to 3.5 meters.

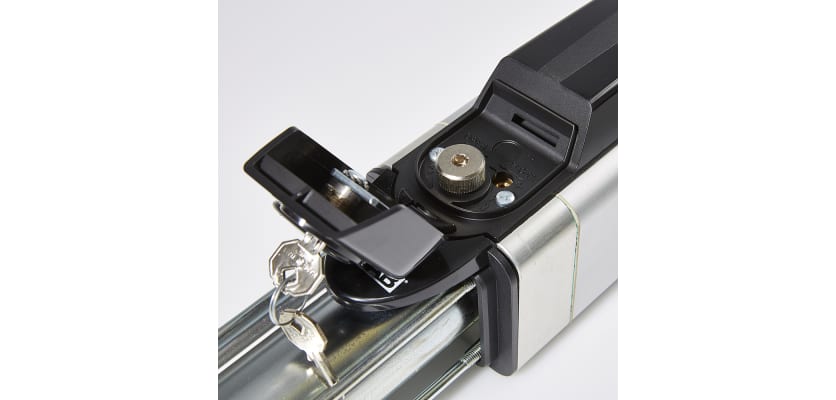

It offers exceptional performance and includes a personalized key-operated release.
Features self-alignment and precise stroke adjustment for safe and smooth operation.
First Fence has a full range of gate automation products and accessories for you to choose from, as well as a huge range of gates, including access gates, including palisade, mesh, railings, and specialist and custom offerings.
