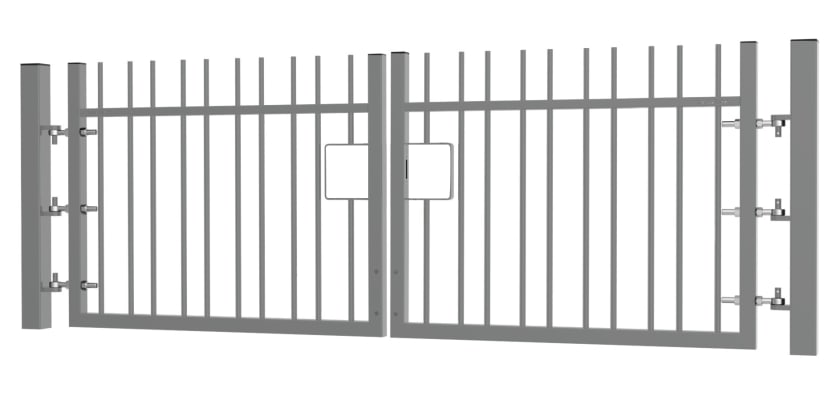

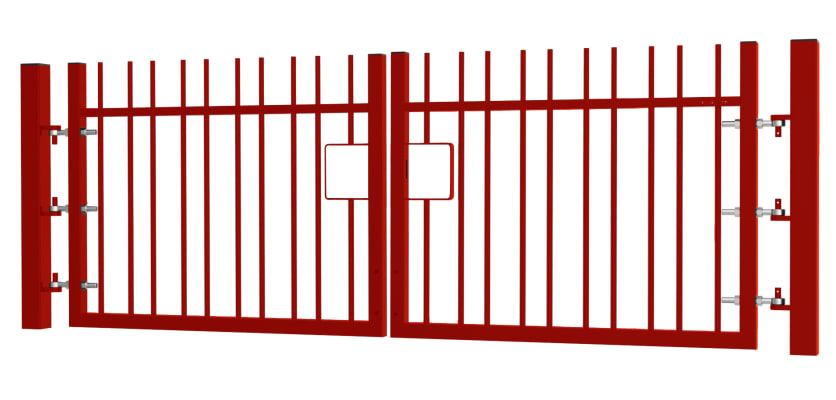

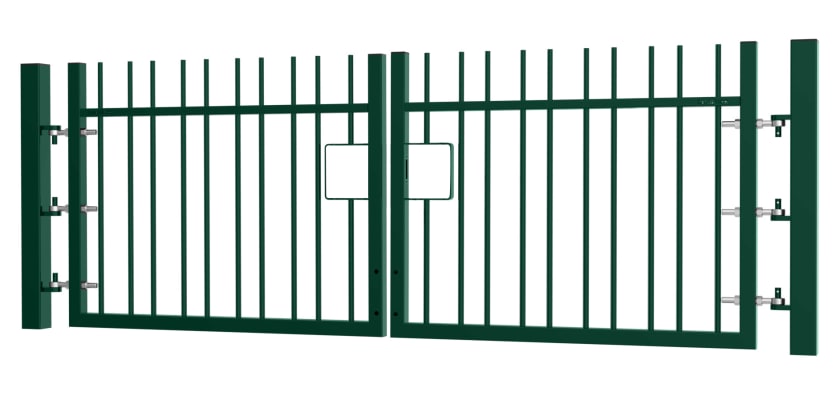

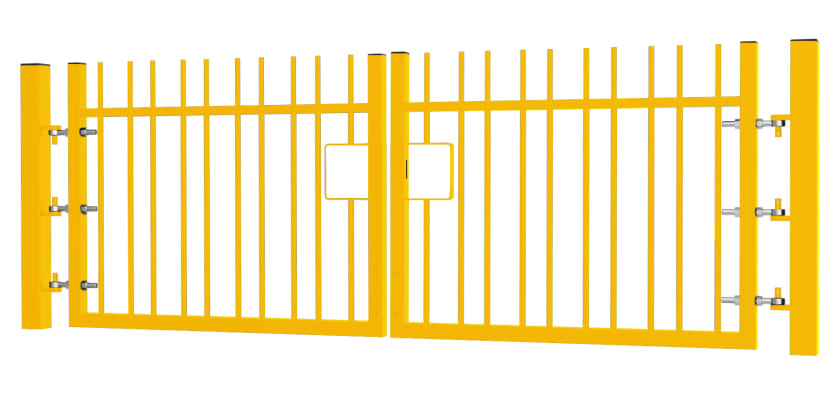

1.5m High x 4.0m Wide EnviroRail® Vertical Bar Double Leaf Gate Kit
Product Description
1.5m High x 4.0m Wide EnviroRail® Vertical Bar Double Leaf Gate Kit
Introducing EnviroRail® Vertical Bar gates, seamlessly designed to be integrated into First Fence's extensive product line up. This stylish and traditional genre of railing and gate gives a touch of elegance, enhancing the visual appeal of the surrounding area while establishing a clear boundary.
The gates within this EnviroRail® collection, are offered in a choice of width and height and in many different RAL colours, so you can match them to an existing scheme with ease. There is the further option of a dig-in or bolt-down formats which allow adaptability across both hard and soft ground types. Before finalising your purchase, we advise that you carry out a ground assessment to ensure the appropriate product selection for your specific location. Our knowledgeable sales team is ready to assist you; please reach out on 01283 512111.
Key Features and Advantages
The EnviroRail® Vertical Bar Double Leaf Gate Kit, measuring 1.5m high x 4.0m wide, provides full flexibility when it comes to access control. Users can choose to have one or both leaves in open or closed positions, allowing for customised access limitation. This wider gate accommodates both foot traffic and some smaller vehicles and is ideal for the broader gate or driveway.
While this gate kit may resemble a conventional vertical bar railing gate when it is first observed, its distinct feature lies in its environmentally mindful manufacturing method. By using a series of custom-made, laser-cut pre-galvanised components, the gate achieves robust connections when pressed together during assembly, negating the need for quite as much energy and resource-intensive welding. If reducing environmental impact is a priority, this could be the ideal choice for you.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
First Fence's EnviroRail® Double Gates offer a fully modular and relatively lightweight gate solution, with swift installation with a variety of gate hardware. Universally handed, they provide ultimate on-site flexibility without fixed left or right-hand specifications, allowing adjustments if the gates move, an advantage fixed hardware sadly lacks.
Each gate in the kit will arrive with pre-drilled with holes, therefore simplifying the attachment of six adjustable gate eye hinges and a locking drop bolt. Plastic hole plugs are included to conceal any unused openings on the attack face, and a locking drop bolt is available as an optional addition, this comes highly recommended for double leaf gate security.
The kit includes two EnviroRail® gate leaves, two gate posts, and six adjustable gate eyes (three for each gate leaf), adhering to BS 12604 safety guidelines for gate stability, even if one hinge fails. This is crucial for preventing injury to people and property damage. Additionally, the gate hooks are fully welded to the gate post giving fixed-axis hinges that prevent vertical movement. The UniSlide Slider Double Kit comes included with all EnviroRail double gates, ensuring a secure and smooth sliding mechanism for reliable operation.
Available in various heights and widths, the gate kits come in both dig-in and bolt-down versions, catering to installation needs in diverse locations. The dig-in variant suits softer terrain, requiring Post Mix for secure installation, while the bolt-down option is ideal for harder ground surfaces, secured using four M16 x 125mm anchor bolts per post.
Compatible with our security locks, this gate kit allows up to 30mm of adjustment from the catch post when installed correctly, with gates having 50mm ground clearance.
In addition to this gate kit, First Fence offers EnviroRail® Railings, Estate Railings, and Gates. Enhance security by incorporating a robust padlock as an extra precautionary measure.
Get in Touch
For guidance in selecting the ideal product, reach out to the First Fence sales team today at 01283 512111 or use the convenient online chat tool.
Specifications & Downloads
| Height | 1500mm [Installed] |
| Access Width | 4000mm |
| Total Post Length | 1500mm [Bolt Down], 2000mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50x50mm |
| Railing Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Gate Frame | 4 |
| Ribbed Inserts for Posts | 2 |
| UniSlide Slider Kit | 1 |
