CAB Hydro KHD.50AC Above Ground Hydraulic Double Leaf Swing Gate Operator - Up to 5.0m Per Leaf
Product Description
CAB Hydro KSHD.50AC Above Ground Hydraulic Single Leaf Swing Gate Operator - Up to 5.0m Per Leaf
The CAB Hydro KSHD.50AC is a complete kit equipped with everything required to convert a manual gate into a fully automated system.
Kit Contents

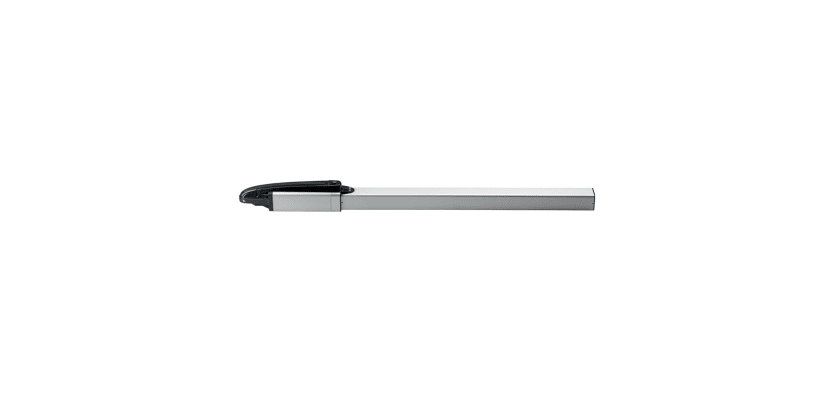

HD50AC Above Ground Hydraulic Swing Gate Operator (x2)
The HD.50AC Above-Ground Hydraulic Swing Gate Operator is a flexible solution for gates up to 5.0m wide. This irreversible operator maximises security and reliability by blocking unauthorised manual manipulation; once opened or closed, the gate cannot be adjusted manually. Ideal for high-security locations like airports, industrial sites, or secure facilities, its design ensures the gate remains securely in position until activated by authorised personnel.

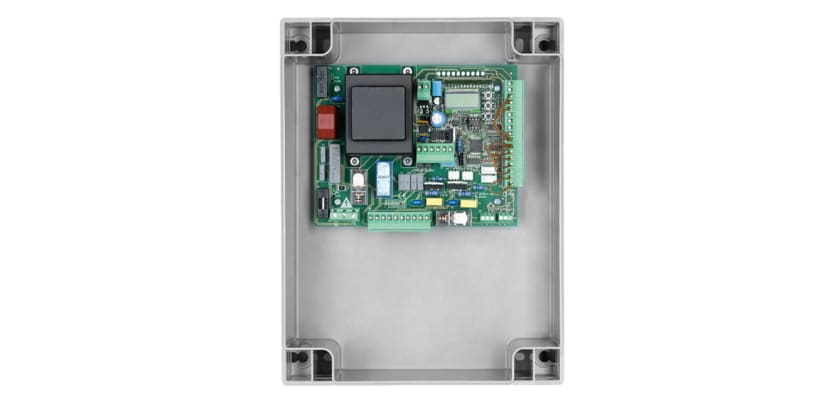

Brainy 230v Control Panel
The BRAINY 230V full-featured control panel is built for one or two motors, making it perfect for swing gates, hydraulic operators, and industrial folding doors. The built-in display simplifies installation, and the control panel provides flexible operating modes to meet your specific needs.

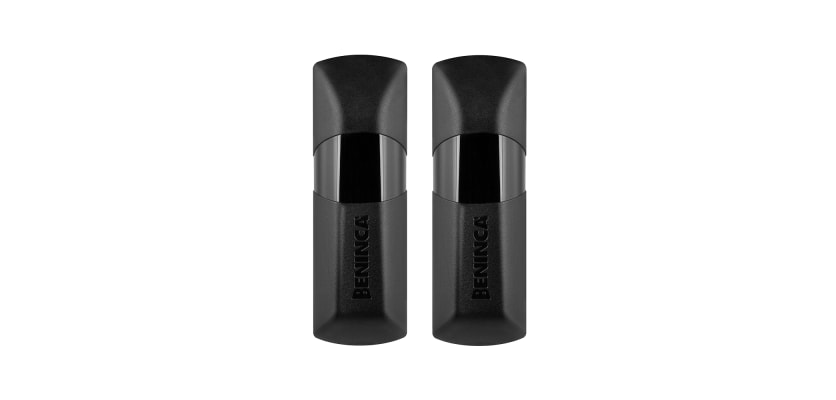

PUPILLA Hard Wired Photocells - 1 pair
PUPILLA photocells are essential for gate automation, providing safety by creating an invisible beam near gate openings. They detect obstacles or motion, prompting the gate to stop or reverse to prevent accidents and damage.
TO.GO2VA Transmitter
The TO.GO2VA is a versatile transmitter designed for gate automation systems. It can control two independent functions or gates, making it ideal for properties with multiple gates or where separate entry and exit commands are required. This kit comes with 2 transmitters.
First Fence has a full range of gate automation products and accessories for you to choose from, as well as a huge range of gates, including access gates, including palisade, mesh, railings, and specialist and custom options.
Here to help
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Motor Supply | 230 Vac |
| Gate Usage | Commercial |
| Motor Type | Hydraulic |
| Duty Cycle | 99% |
| Built In Physical Stops | No |
| Fixing Bracket Type | Weld on |
| Protection Level | IP55 |
| Encoder | No |
| Max Gate Width | 5.0m |
| Maximum Thrust | 5000 N |
What's Included
| Name | Quantity |
|---|---|
| HD50AC Above Ground Hydraulic Swing Gate Operator | 2 |
| Brainy 230v Control Panel | 1 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
Specifications & Downloads
| Motor Supply | 230 Vac |
| Gate Usage | Commercial |
| Motor Type | Hydraulic |
| Duty Cycle | 99% |
| Built In Physical Stops | No |
| Fixing Bracket Type | Weld on |
| Protection Level | IP55 |
| Encoder | No |
| Max Gate Width | 5.0m |
| Maximum Thrust | 5000 N |
What's Included
| Name | Quantity |
|---|---|
| HD50AC Above Ground Hydraulic Swing Gate Operator | 2 |
| Brainy 230v Control Panel | 1 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
Product Description
CAB Hydro KSHD.50AC Above Ground Hydraulic Single Leaf Swing Gate Operator - Up to 5.0m Per Leaf
The CAB Hydro KSHD.50AC is a complete kit equipped with everything required to convert a manual gate into a fully automated system.
Kit Contents
HD50AC Above Ground Hydraulic Swing Gate Operator (x2)
The HD.50AC Above-Ground Hydraulic Swing Gate Operator is a flexible solution for gates up to 5.0m wide. This irreversible operator maximises security and reliability by blocking unauthorised manual manipulation; once opened or closed, the gate cannot be adjusted manually. Ideal for high-security locations like airports, industrial sites, or secure facilities, its design ensures the gate remains securely in position until activated by authorised personnel.
Brainy 230v Control Panel
The BRAINY 230V full-featured control panel is built for one or two motors, making it perfect for swing gates, hydraulic operators, and industrial folding doors. The built-in display simplifies installation, and the control panel provides flexible operating modes to meet your specific needs.
PUPILLA Hard Wired Photocells - 1 pair
PUPILLA photocells are essential for gate automation, providing safety by creating an invisible beam near gate openings. They detect obstacles or motion, prompting the gate to stop or reverse to prevent accidents and damage.
TO.GO2VA Transmitter
The TO.GO2VA is a versatile transmitter designed for gate automation systems. It can control two independent functions or gates, making it ideal for properties with multiple gates or where separate entry and exit commands are required. This kit comes with 2 transmitters.
First Fence has a full range of gate automation products and accessories for you to choose from, as well as a huge range of gates, including access gates, including palisade, mesh, railings, and specialist and custom options.
