BOB50ME Above Ground Swing Gate Operator
Product Description

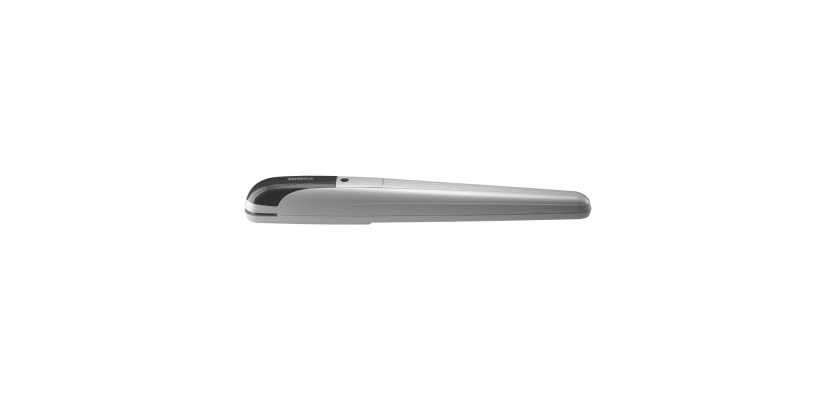

BOB50ME Above Ground Swing Gate Operator
Help open and close gates safely and securely with an above ground swing gate operator. Also known as gate openers, these systems can be either mechanical or electromechanical, providing controlled gate movements.
This type of swing gate system can be found in a range of locations. These include residential, commercial, and industrial sectors. They play a vital role in bolstering security, enhancing convenience, and improving access.
The BOB50ME Swing Gate Operator is a 230 Vac worm screw post-mounted electromechanical ram.
This geared motor a dependable, with a low operating volume. They can be quickly and easily installed to your gate system. Each above ground swing gate operator features two adjustable mechanical stops for opening and closing.
The BOB50ME above ground swing gate operator features an encoder. The encoder provides the operator with information about its environment.
For example in the event that the gate were to hit an obstruction. The encoder would inform the operator of this, and the motor would reverse direction, preventing injury or damages. This helps provide a high level of safety whilst the gate is in motion.
Features
An irreversible 230 Vac worm screw electromechanical motor with a built-in encoder
The encoder guarantees optimal safety and accuracy throughout gate movement.
This motor is reliable, quiet, and easy to install.
Equipped with 20 mm diameter rolled ball screws and an easily accessible top-release for maintenance.
Designed to support the safe automated operation of gate leaves up to 4.5 metres.
Here at First Fence, we offer an extensive selection of gate automation products and accessories. We also supply a wide variety of access gates, including palisade, mesh, railings, and specialist and custom offerings.
Here to help
We're here to assist you with any questions or queries you may have. If you require any guidance regarding this product range, please don't hesitate to contact us. Our sales team is ready to provide the advice necessary to help you find the ideal product. Contact us via phone on 01283 512111 or utilising our online chat tool.
Specifications & Downloads
| Length | 980mm |
| Motor Supply | 230 Vac |
| Maximum Absorbed Current | 1.4 A |
| Maximum Thrust | 3500 N |
| Opening Time | 26 Seconds |
| Duty Cycle | 30% |
| Standard Stroke | 455mm |
| Maximum Stroke | 520mm |
| Protection Level | IP44 |
| Encoder | Yes |
| Built In Physical Stops | Yes |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 5.0m |
| Wind Loading | 75% |
| Motor Type | Electromechanical |
| Gate Usage | Residential |
| Fixing Bracket Type | Weld On |
| Compatible Control Panels | Brainy |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
Specifications & Downloads
| Length | 980mm |
| Motor Supply | 230 Vac |
| Maximum Absorbed Current | 1.4 A |
| Maximum Thrust | 3500 N |
| Opening Time | 26 Seconds |
| Duty Cycle | 30% |
| Standard Stroke | 455mm |
| Maximum Stroke | 520mm |
| Protection Level | IP44 |
| Encoder | Yes |
| Built In Physical Stops | Yes |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 5.0m |
| Wind Loading | 75% |
| Motor Type | Electromechanical |
| Gate Usage | Residential |
| Fixing Bracket Type | Weld On |
| Compatible Control Panels | Brainy |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
