Apollo® 2.0m High x 10.0m Wide 868 Twin Mesh Double Leaf Gate Kit
Product Description

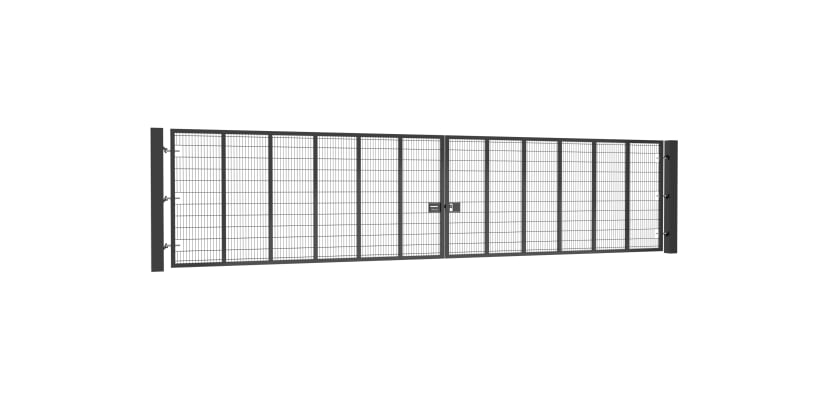

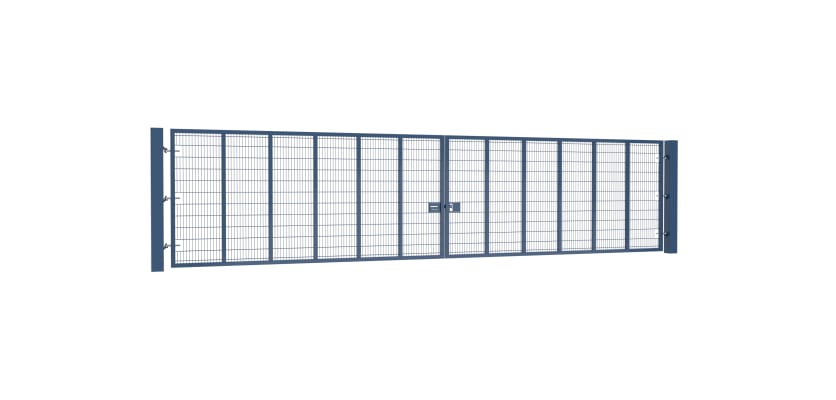

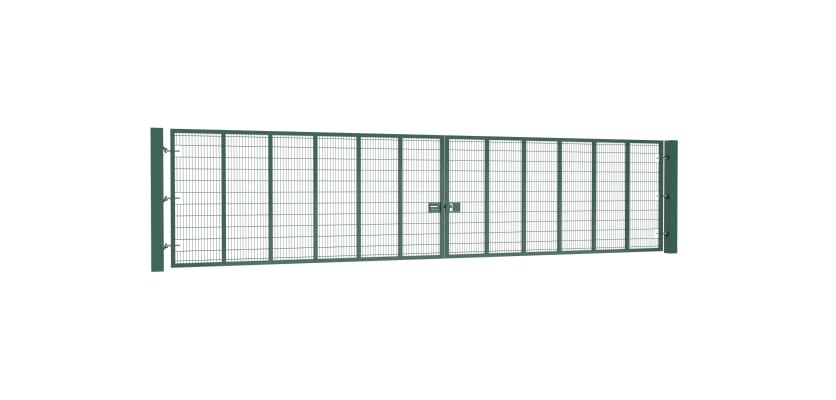

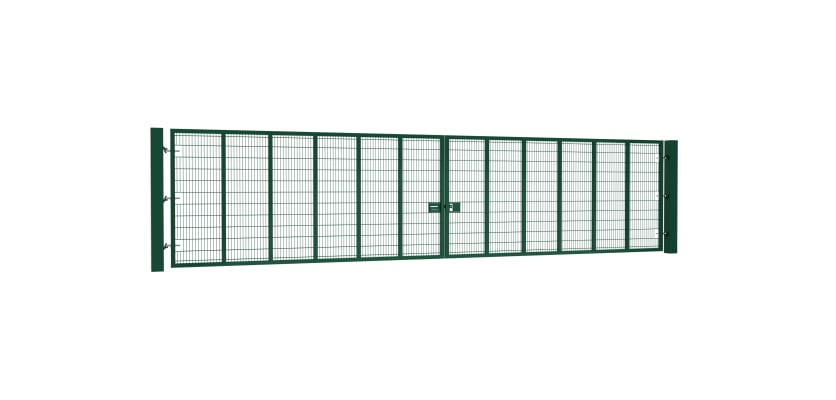

Apollo® 2.0m High x 10.0m Wide 868 Twin Mesh Double Leaf Gate Kit
Made from pre-galvanised steel to BS EN 10346 and finished with a durable polyester powder coating to BS 13438, the Apollo 2.0m High x 10.0m Wide 868 Twin Mesh Double Leaf Gate Kit is built to withstand the elements while delivering robust, long-term security. Suitable for a wide variety of locations, from commercial depots and warehouses to school premises, public parks, and transport yards, this gate offers exceptional performance and integration.
Compatible with twin mesh fencing, V mesh systems, Safe Top mesh, and many other popular fencing types, this gate allows for seamless connection with both existing perimeters and new installations. The result is a strong, continuous fencing line that maintains security without sacrificing visibility or site aesthetics.
With an impressive ten metre width, this double leaf gate provides a substantial clear opening, ideal for sites that require access for HGVs, service vehicles, agricultural equipment, and plant machinery. Its two metre height adds a further layer of deterrence and protection, helping you maintain control over large entrances in open or vulnerable environments.
The gate features the tried and tested 868 twin wire mesh design, consisting of 6 millimetre vertical wires welded between twin 8 millimetre horizontal wires. This combination delivers outstanding rigidity and resistance to tampering, cutting, or climbing, making it suitable for low to medium security applications where resilience is essential.
Every aspect of the Apollo gate is designed with flexibility in mind. The universal leaf design allows either gate panel to be hung on the left or right, providing adaptability during installation. Mitred corners enhance the gate’s strength and appearance, giving the frame a clean and professional finish that pairs well with contemporary fencing layouts.
The kit includes two heavy-duty mesh gate leaves, drop bolts, adjustable hinges, a sliding latch, and a choice of either bolt down or dig in posts. This provides everything you need for a successful installation, except for post mix (if using dig in posts) or ground anchor bolts (for bolt down versions).
Designed with a robust triple hinge system, the Apollo® 2.0m x 10.0m double leaf gates comply with BS EN 12604 standards and align with DHF recommendations, ensuring each gate leaf remains secure even in the unlikely event of a single hinge failure.

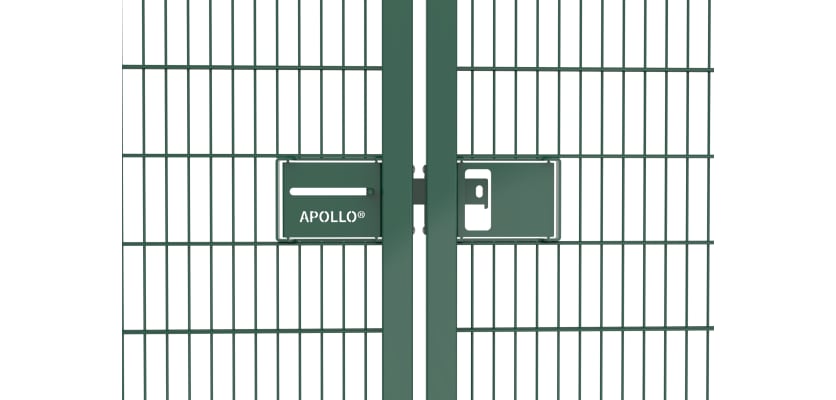

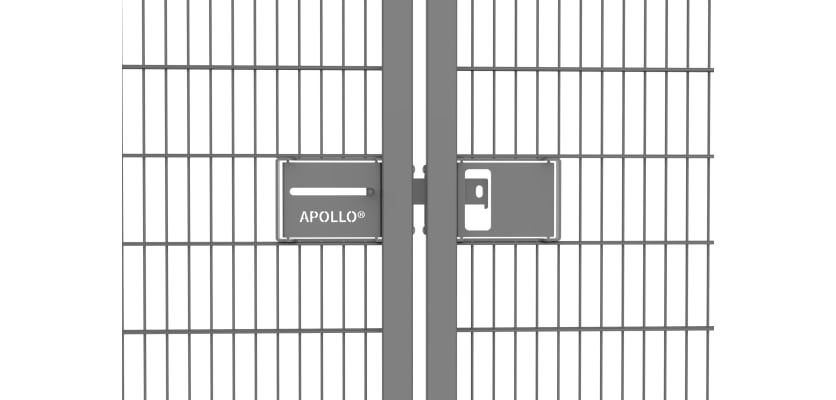

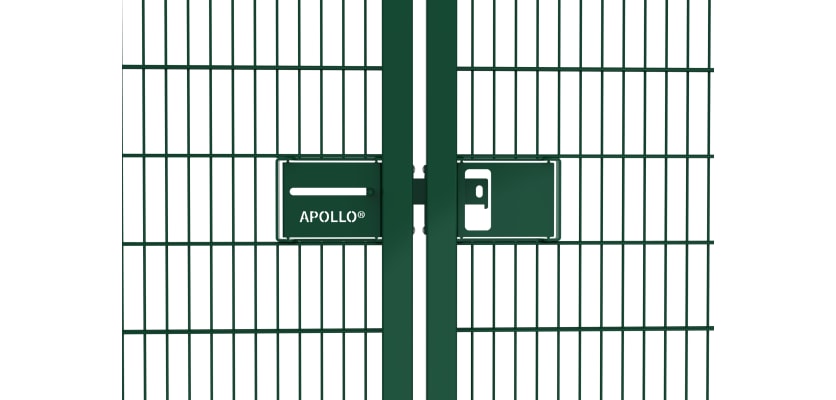

Security can be tailored to suit the site. The standard latch is suitable for padlocking, but can be easily upgraded to include digital locks or quick release mechanisms for more regulated or emergency access.
This gate is available in a full range of RAL colours to match or complement your fencing system, company branding, or zoning requirements. The powder coated finish not only adds visual appeal but also protects against rust, wear, and adverse weather conditions.
The Apollo 2.0m High x 10.0m Wide 868 Twin Mesh Double Leaf Gate Kit is a dependable, high-capacity access solution for professionals who demand strength, compatibility, and long-lasting performance from their perimeter security systems.
Contact Us
Our friendly and knowledgeable sales team are here to help with any questions you may have, so please don't hesitate to contact us. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk or you can speak to one of the team through the live chat system.
Specifications & Downloads
| Height Above Ground | 2000mm |
| Access Width | 10000mm |
| Total Width | 10670mm |
| Hinge Post Size | 200mm x 200mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Thickness of Wires | 868 (8mm and 6mm) |
| Post Type | Square Hollow Section |
| Gate Type | Double Leaf Gate |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 868 Mesh Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Slider Padlockable Double Leaf Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 2 |
Specifications & Downloads
| Height Above Ground | 2000mm |
| Access Width | 10000mm |
| Total Width | 10670mm |
| Hinge Post Size | 200mm x 200mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Thickness of Wires | 868 (8mm and 6mm) |
| Post Type | Square Hollow Section |
| Gate Type | Double Leaf Gate |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 868 Mesh Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Slider Padlockable Double Leaf Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 2 |
