Height Above Ground | 2400mm |
Access Width | 4000mm |
Total Width | 4430mm |
Hinge Post Size | 100mm x 100mm |
Hinge Gap | 100mm |
Leaf Gap | 30mm |
Gate Hanging Side | Universally Handed |
Thickness of Wires | 868 (8mm and 6mm) |
Post Type | Square Hollow Section |
Gate Type | Double Leaf Gate |
Material | Pre-Galvanised Steel |
Finish | Powder Coated |
PPC Colours | Green & Black as Standard, Others Available On Request |
Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
Name | Quantity |
---|---|
Apollo 868 Mesh Gate Leaf | 2 |
Hinge Gate Post | 2 |
Adjustable Gate Eyes | 4 |
Ribbed Inserts for Posts | 2 |
Unislide Slider Padlockable Double Leaf Gate Kit | 1 |
Apollo Plate Kit | 1 |
Auto Locking Drop Bolt | 2 |

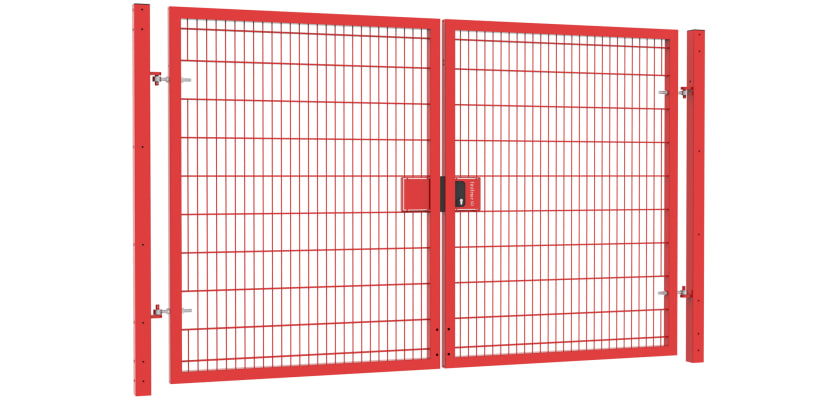

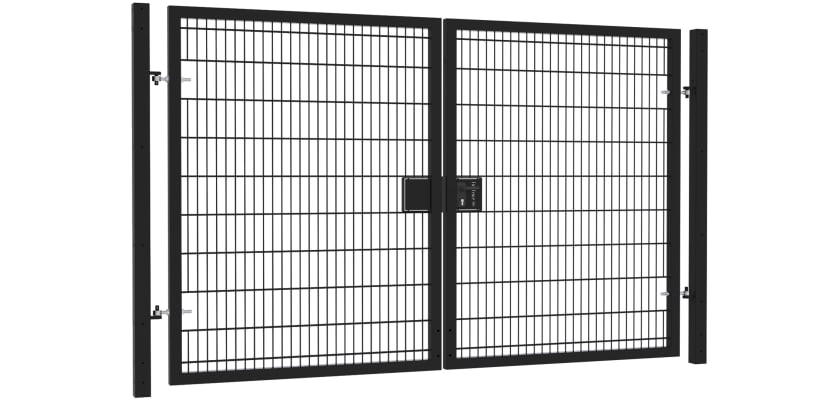

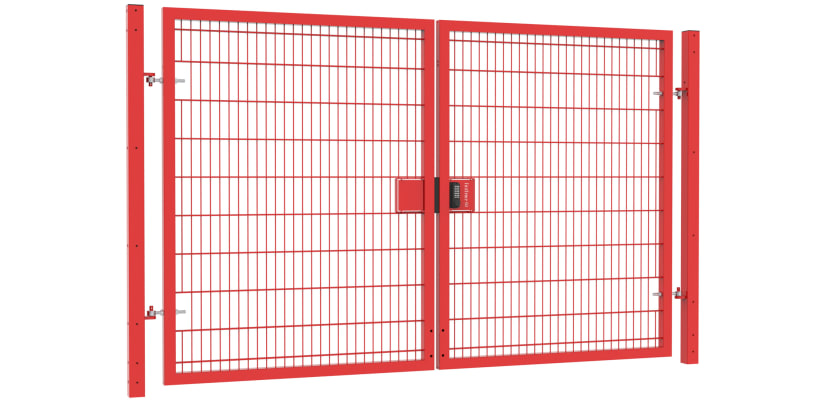

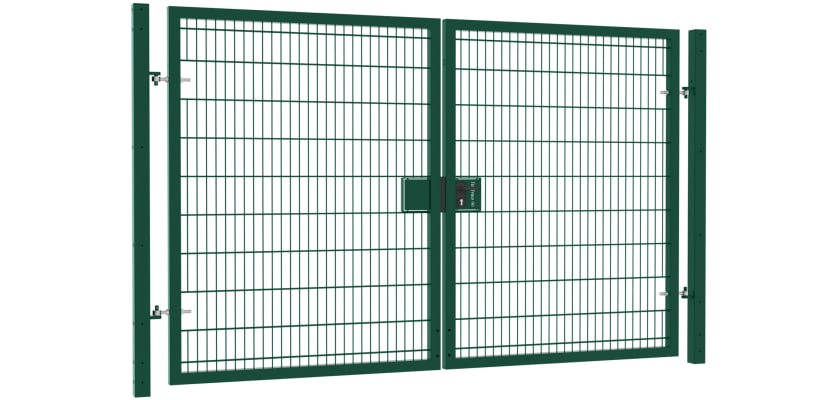

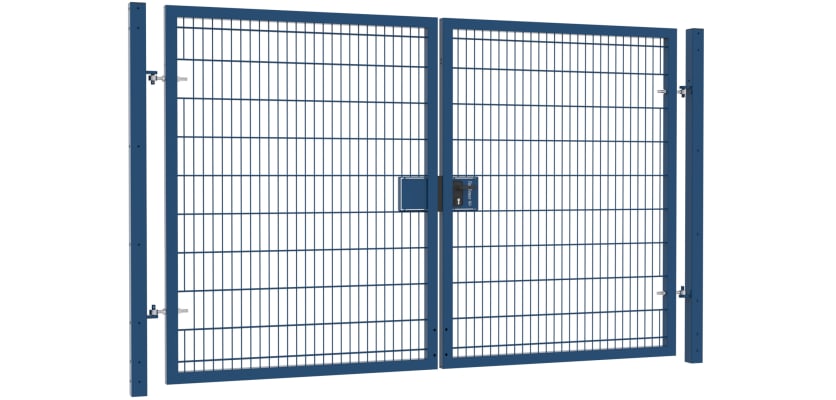

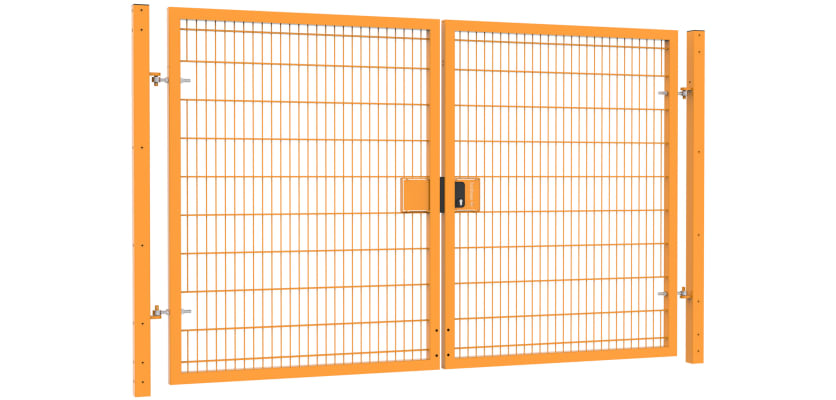

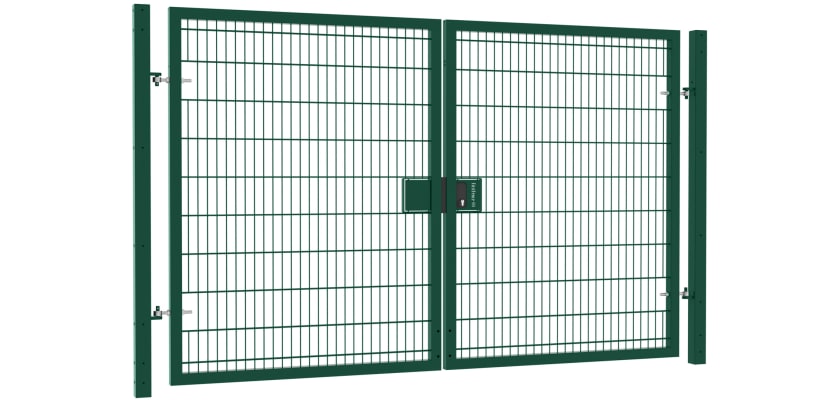

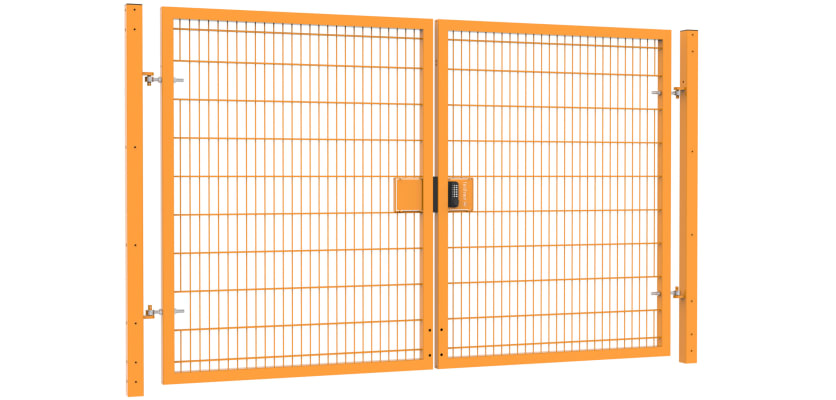

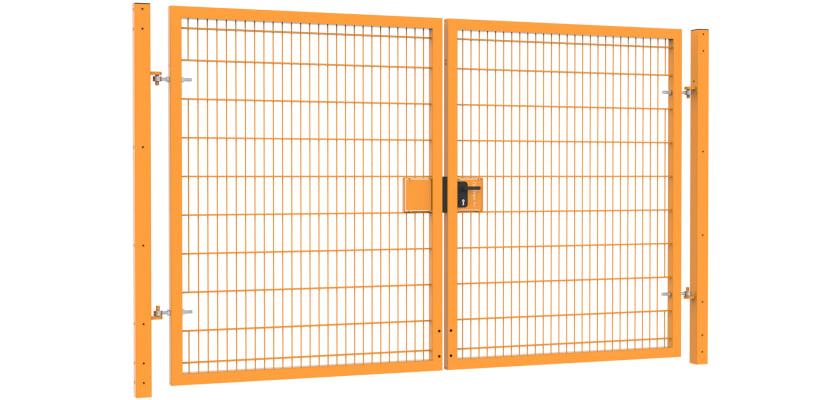

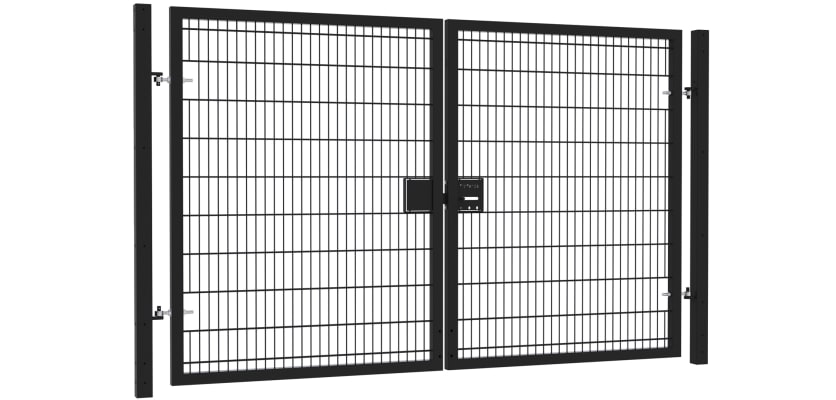

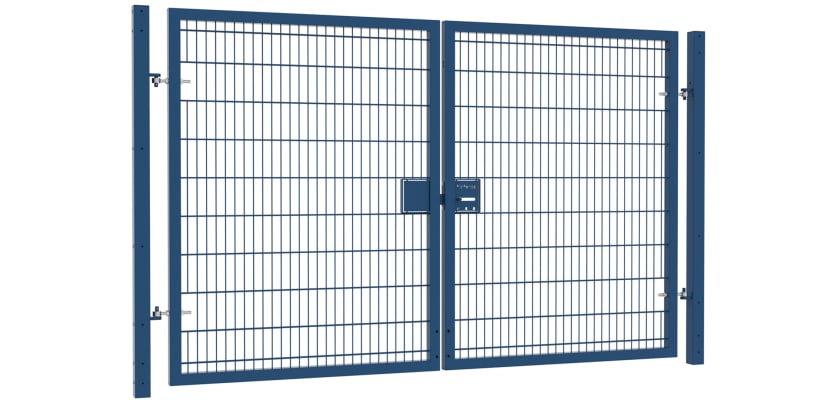

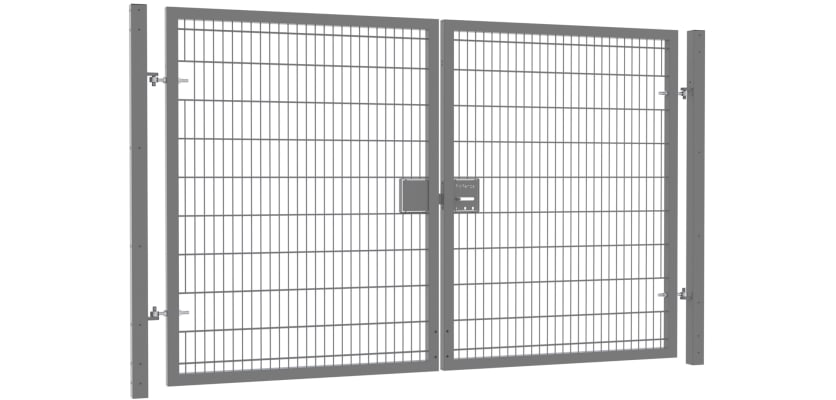

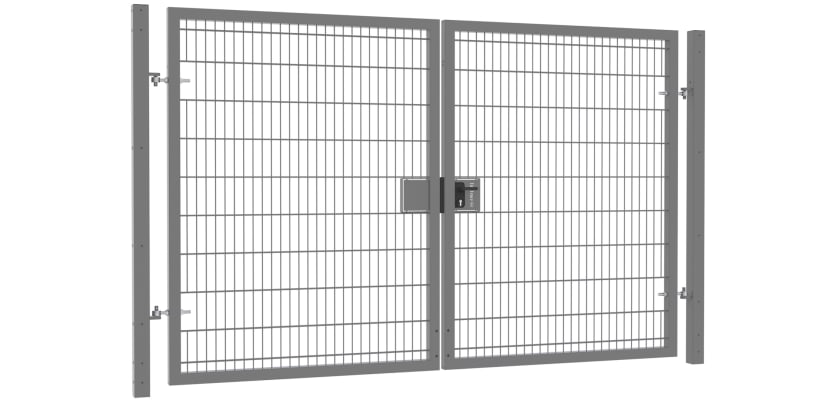

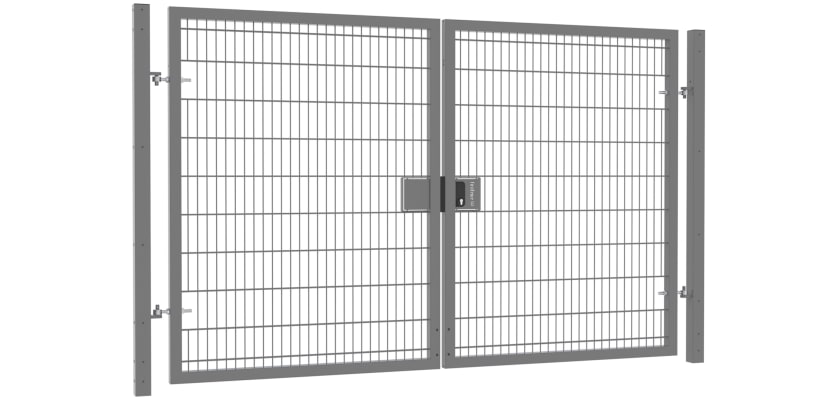

Made from pre-galvanised steel for excellent corrosion resistance and long-lasting durability, the Apollo 2.4m High x 4.0m Wide 868 Twin Mesh Double Leaf Gate Kit is a secure and reliable access solution for low to medium security applications. Designed for a wide range of environments including schools, commercial sites, sports facilities, industrial estates and recreational areas, this gate offers both practical function and a smart, professional appearance.
The twin mesh infill features two 8mm horizontal wires sandwiching a 6mm vertical wire, a configuration known for its strength and rigidity. This twin wire design makes the gate highly resistant to cutting, bending or vandalism, while still allowing excellent visibility through the mesh. This makes it ideal for areas where natural surveillance or CCTV coverage is important. The mesh panel is fully welded and firmly secured to the gate frame, providing a strong and stable barrier.
The gate frame itself is constructed from high-grade pre-galvanised steel in accordance with BS EN 10346 standards and finished with a polyester powder coating to BS 13438. This finish not only protects the gate from the elements, rust and wear but also adds a professional finish that blends well with existing fencing systems. A choice of powder-coated colours is available to match your site’s aesthetic or branding.
This 4.0m wide double leaf gate offers generous access for both vehicles and pedestrians. Each leaf opens to provide a total width of 4.0 metres, making it suitable for maintenance equipment, small delivery vehicles or regular access traffic. The gate leaves are fully reversible, meaning they can be configured to open inwards or outwards and from either side depending on site layout and operational preference. The corners of the gate frame are mitred for added strength and a sleek, finished look.
The Apollo Double Leaf Gate is available with either dig in or bolt down posts, offering installation flexibility for different ground types. Bolt down posts are ideal for concrete or hard-standing areas, while dig in posts are more suited for soil or softer terrain. The kit includes all essential components for installation except for ground anchor bolts or post mix, which are available separately.
Locking is handled with a standard sliding latch system, which can be padlocked for basic access control. For more secure sites, the gate is compatible with advanced locking options such as digital access locks and quick-exit systems. This ensures the gate meets varying levels of security and operational requirements.
A key advantage of the Apollo 2.4m High x 4.0m Wide Gate Kit is its compatibility with a range of fencing systems. It integrates seamlessly with twin wire mesh, V mesh, and safe top mesh panels, allowing for a uniform and secure perimeter without compromising on design or security.
This gate is also easy to install thanks to its modular design. It arrives in kit form, with clearly defined components for straightforward assembly by either professional installers or experienced DIY users. Matching mesh fencing and accessories are available separately, allowing you to build or expand your perimeter system as needed.
