Height Above Ground | 1500mm |
Access Width | 8000mm |
Total Width | 8570mm |
Hinge Post Size | 150mm x 150mm |
Hinge Gap | 120mm |
Leaf Gap | 30mm |
Gate Hanging Side | Universally Handed |
Thickness of Wires | 868 (8mm and 6mm) |
Post Type | Square Hollow Section |
Gate Type | Double Leaf Gate |
Material | Pre-Galvanised Steel |
Finish | Powder Coated |
PPC Colours | Green & Black as Standard, Others Available On Request |
Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
Name | Quantity |
---|---|
Apollo 868 Mesh Gate Leaf | 2 |
Hinge Gate Post | 2 |
Adjustable Gate Eyes | 6 |
Ribbed Inserts for Posts | 2 |
Unislide Slider Padlockable Double Leaf Gate Kit | 1 |
Apollo Plate Kit | 1 |
Auto Locking Drop Bolt | 2 |

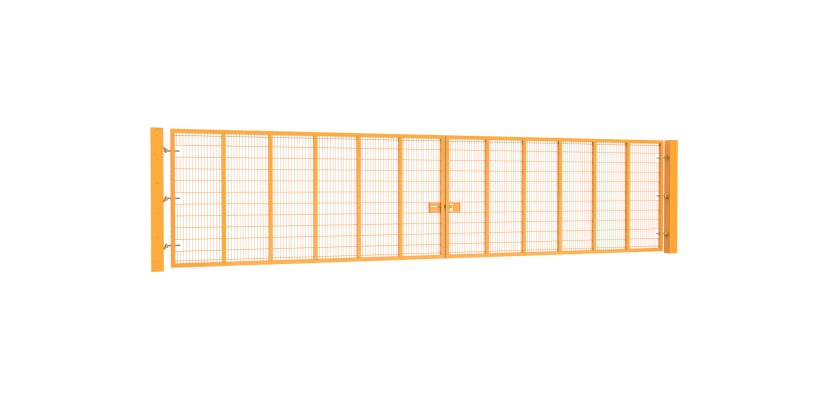

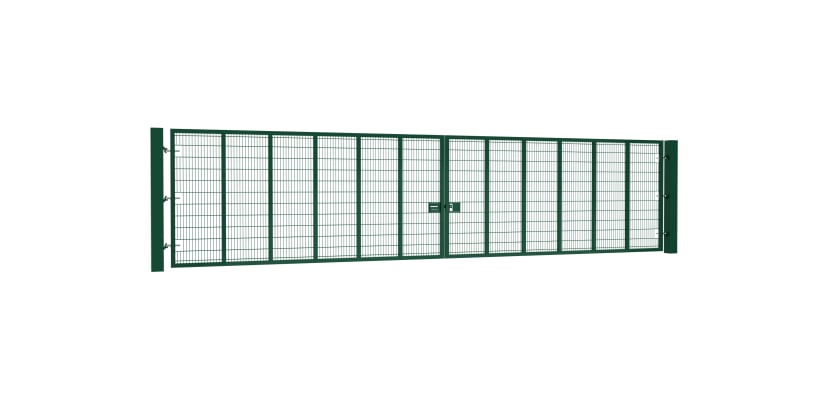

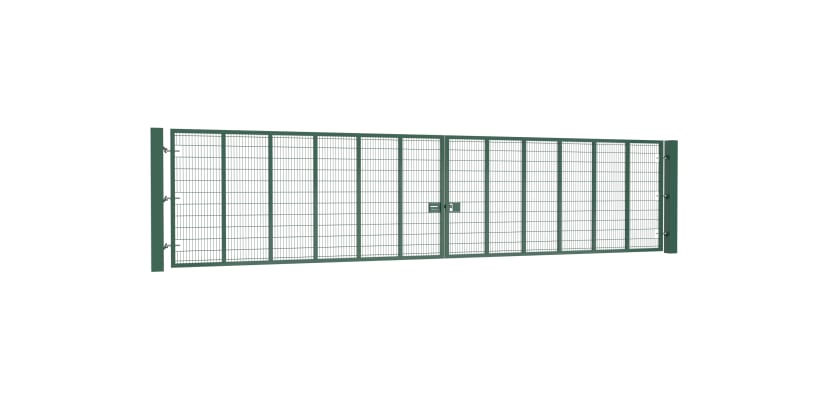

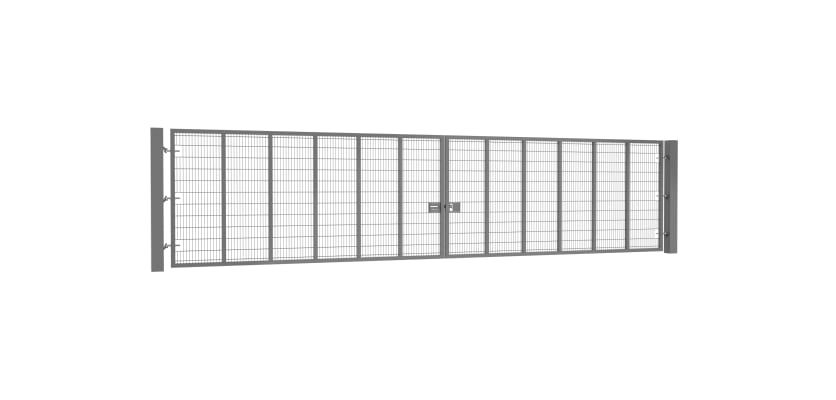

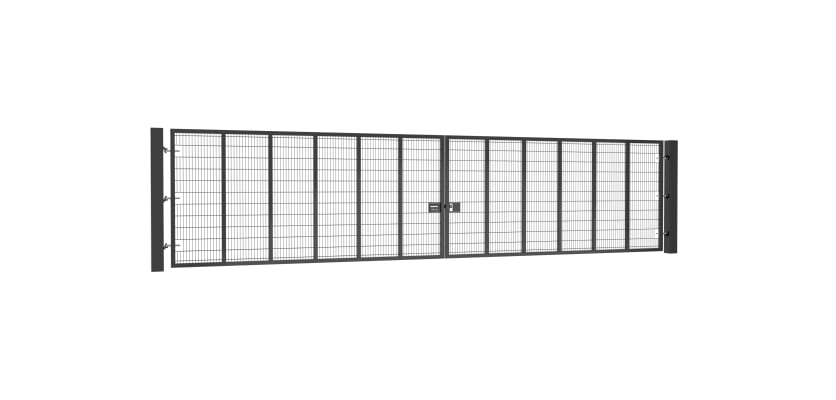

The Apollo 1.5m High x 8.0m Wide 868 Twin Mesh Double Leaf Gate Kit provides a strong, safe, and visually appealing access solution for low to medium security environments. Ideal for accommodating both pedestrians and small vehicles, this wide double leaf gate is perfectly suited to applications such as schools, parks, playgrounds, sports venues, and commercial sites where security and aesthetics are equally important.
Apollo’s 868 twin mesh system features 6mm vertical wires and 8mm horizontal wires, delivering exceptional strength, rigidity, and resistance to cutting or deformation. The wide 8.0m span makes this gate particularly suitable for service entrances, vehicle yards, and other large access points. The double leaf configuration enhances structural stability and reduces flex, particularly important for wider gate openings and wind-prone environments.
Each Apollo gate leaf is universal, allowing for left-hand or right-hand hanging, making it easy to install and configure on-site. The gate frame includes mitred corners, a hallmark of Apollo’s design quality, adding extra strength and a cleaner, more professional finish.
Manufactured from pre-galvanised steel to BS EN 10346 and finished with a high-performance polyester powder coating to BS 13438, this gate is built to last. It offers excellent resistance to corrosion, UV exposure, and daily wear. A variety of PPC RAL colour options are available, with custom colours upon request. This ideal for matching your site’s branding or existing fencing system.
Apollo gates are designed for seamless integration with our mesh fencing systems, providing durable, secure, and aesthetically consistent perimeter solutions. This gate is fully compatible with V Mesh, 868 Twin Wire Mesh, 656 Twin Wire Mesh, and many other popular mesh fencing systems, making it a versatile choice for a wide range of sites.

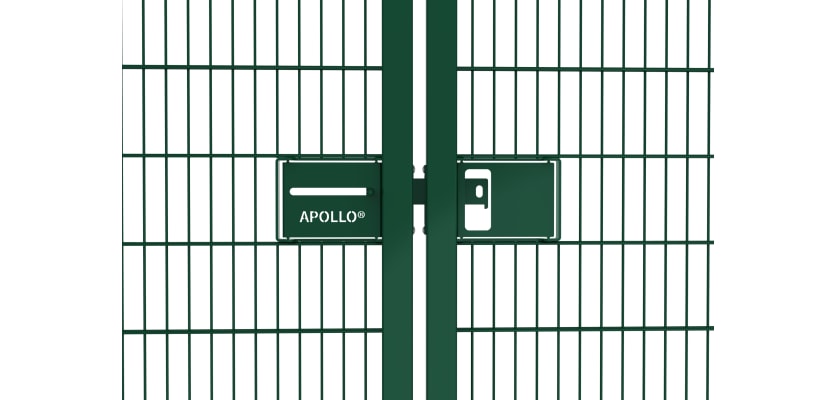

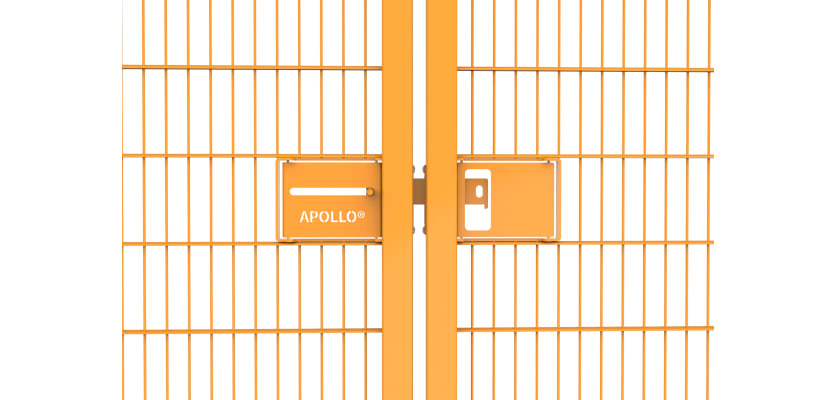

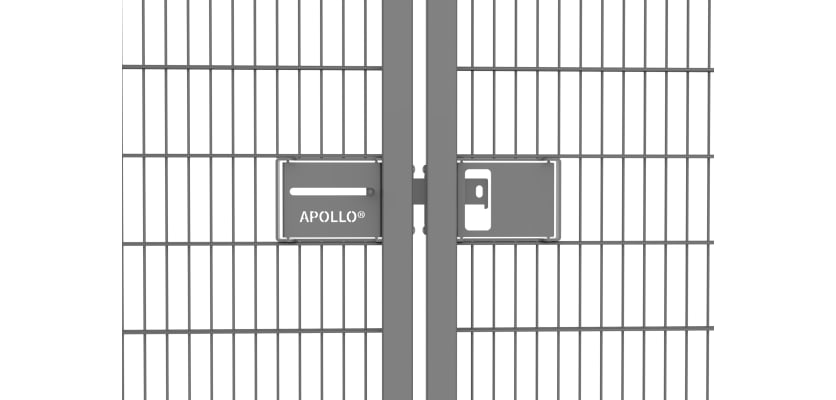

The Apollo Twin Mesh Double Leaf Gate Kit is supplied with a standard sliding latch, which can be padlocked for basic security. For more advanced requirements, the gate is also compatible with digital security locks and quick-exit digital locking systems, offering enhanced access control for high-traffic or sensitive areas. The included drop bolts secure both gate leaves when closed, providing added stability and peace of mind.
For increased safety, the Apollo double leaf gates feature a triple hinge design, allowing them to meet the BS EN 12604 standard as well as the guidance set out by the DHF.
Available with either bolt-down or dig-in posts, this gate can be installed in a variety of ground conditions. Bolt-down posts are ideal for hard surfaces like concrete, while dig-in posts are best suited for softer terrain.
Please note: Ground anchor bolts and post mix are not included and should be purchased separately. We also offer a full range of Apollo mesh fencing accessories to help you complete or expand your fencing system.
Apollo gates are designed for seamless integration with our mesh fencing systems, providing durable, secure, and aesthetically consistent perimeter solutions. Whether you're upgrading an existing site or planning a new installation, the Apollo 1.5m x 8.0m gate offers a perfect balance of security, performance, and visual appeal.
Need advice? Our expert team is ready to help—contact us today by phone or through our live chat. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk.
