Height Above Ground | 1500mm |
Access Width | 7000mm |
Total Width | 7570mm |
Hinge Post Size | 150mm x 150mm |
Hinge Gap | 120mm |
Leaf Gap | 30mm |
Gate Hanging Side | Universally Handed |
Thickness of Wires | 868 (8mm and 6mm) |
Post Type | Square Hollow Section |
Gate Type | Double Leaf Gate |
Material | Pre-Galvanised Steel |
Finish | Powder Coated |
PPC Colours | Green & Black as Standard, Others Available On Request |
Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
Name | Quantity |
---|---|
Apollo 868 Mesh Gate Leaf | 2 |
Hinge Gate Post | 2 |
Adjustable Gate Eyes | 6 |
Ribbed Inserts for Posts | 2 |
Unislide Slider Padlockable Double Leaf Gate Kit | 1 |
Apollo Plate Kit | 1 |
Auto Locking Drop Bolt | 2 |

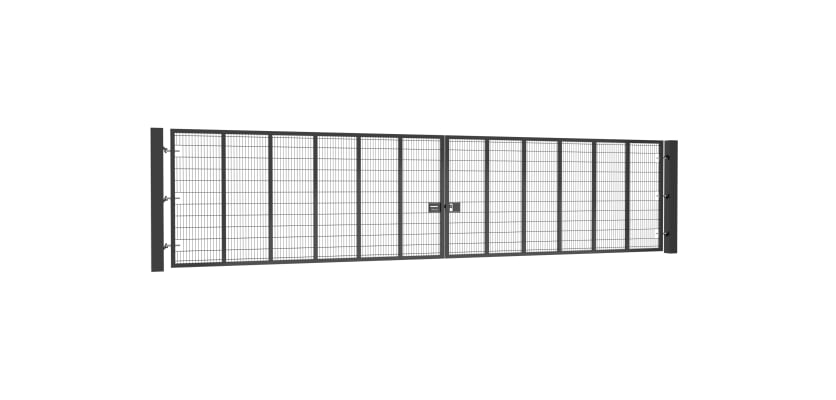

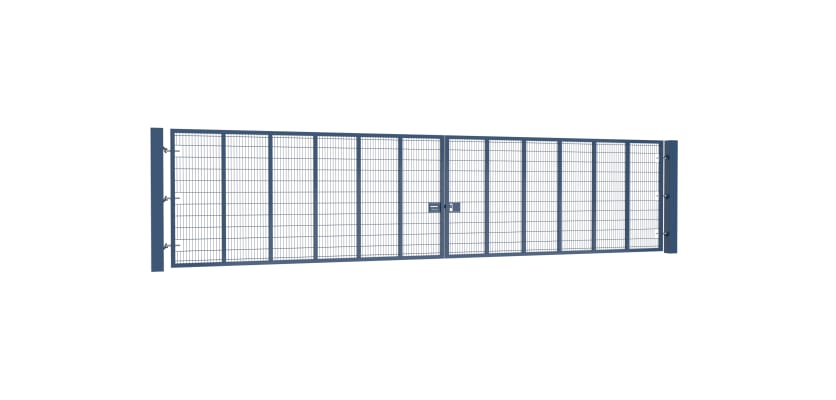

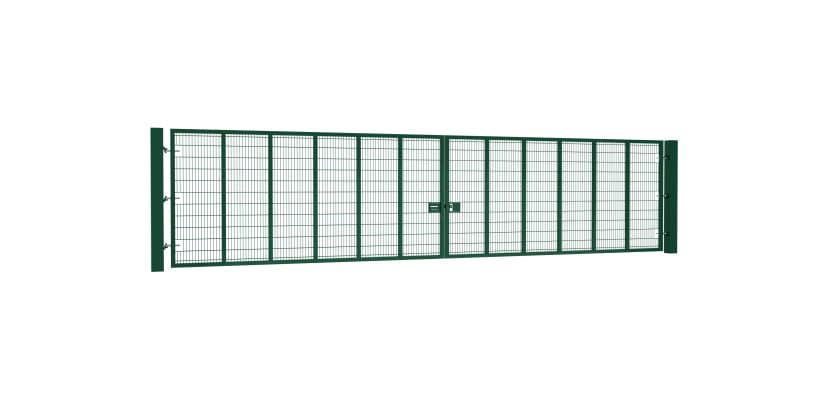

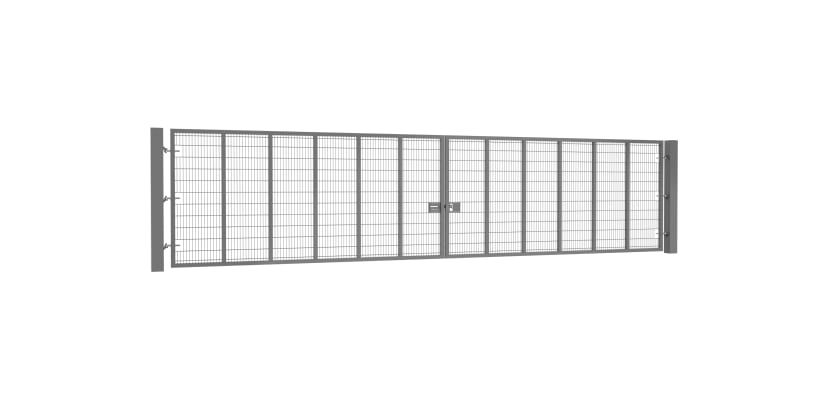

When your site requires extra-wide access combined with robust perimeter protection, the Apollo 1.5m High x 7.0m Wide 868 Twin Mesh Double Leaf Gate Kit offers the perfect solution. Designed for low to medium security applications, this high-quality gate is ideal for schools, sports facilities, commercial sites, light industrial units, parks, and public areas where visibility, strength, and durability are essential.
With a total width of 7.0 metres, this double leaf gate is designed to accommodate the entry and exit of large vehicles, plant machinery, or multiple users at once, without compromising on site security. The gate features a 868 twin wire mesh panel configuration which is constructed using 6mm vertical wires crossed with 8mm horizontal wires/ The twin mesh construction offers excellent rigidity, anti-cut resistance, and structural integrity.
868 twin wire mesh: 6mm vertical wires x 8mm horizontal wires
Finish: Pre-galvanised steel with PPC coating (colour options available)
Post types: Bolt-down or dig-in

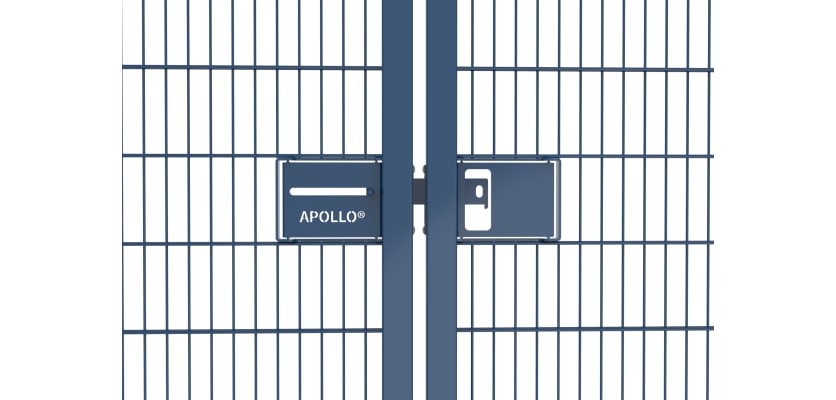

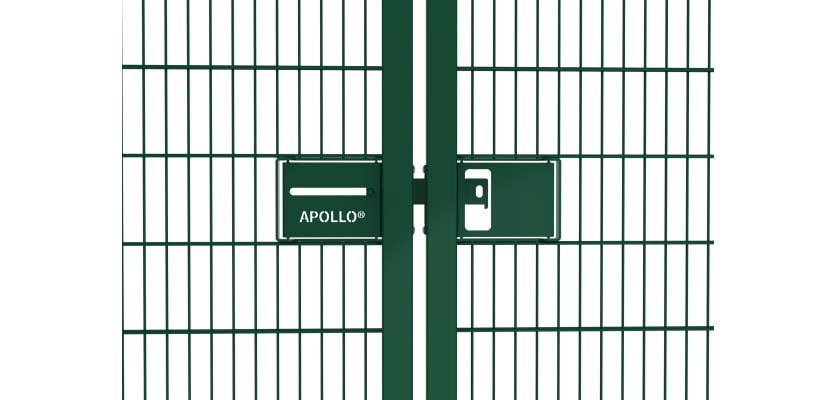

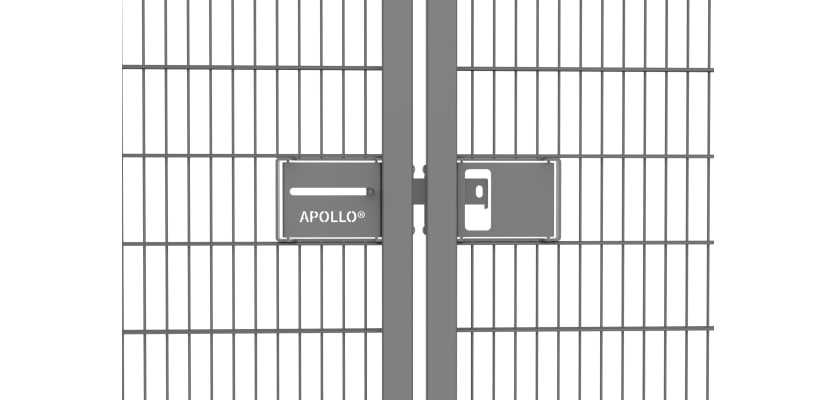

Security options: Padlockable latch, digital lock compatibility
Universal hanging: Left or right-hand gate leaf configuration
Frame detail: Mitred corners for added strength and clean finish
The twin wire mesh design also ensures high visibility, making it ideal for areas that require surveillance or where safety through visibility is a concern, such as educational or recreational environments.
Constructed from pre-galvanised steel to BS EN 10346, and coated with a durable polyester powder coating to BS 13438, this gate is built to withstand harsh weather conditions, resist corrosion, and deliver a long service life. The powder coating is available in a wide range of PPC colours, allowing you to match your gate with existing fencing or site branding for a consistent and professional look.
The Apollo 7.0m gate kit comes with your choice of bolt-down or dig-in posts, making it suitable for both hard surfaces like tarmac or concrete and softer substrates like soil or gravel. The gate is supplied with a standard sliding latch compatible with a padlock, but can also be upgraded to accommodate digital access control systems or quick-exit digital locks, offering greater flexibility for controlled access or emergency situations.
The gate features universal leaves, meaning each leaf can be installed as left-hand or right-hand hung, simplifying installation and allowing it to adapt to your site layout. The gate frame is designed with mitred corners to enhance its structural integrity, reduce stress at joints, and deliver a sleek, professional finish.
With their triple hinge design, the Apollo 1.5m x 7.0m double leaf gates feature a triple hinge design, meeting the requirements set out in the BS EN 12604 standard as well as recommendations set out by the DHF.
Everything you need to install your gate is included in the kit, excluding post mix and ground anchor bolts. This streamlined package allows for efficient assembly and integration into your fencing system. The Apollo range also includes a full suite of compatible mesh fencing and accessories sold separately, so you can customise or expand your system as your site evolves.
