Height Above Ground | 1200mm |
Access Width | 8000mm |
Total Width | 8570mm |
Hinge Post Size | 150mm x 150mm |
Hinge Gap | 120mm |
Leaf Gap | 30mm |
Gate Hanging Side | Universally Handed |
Thickness of Wires | 868 (8mm and 6mm) |
Post Type | Square Hollow Section |
Gate Type | Double Leaf Gate |
Material | Pre-Galvanised Steel |
Finish | Powder Coated |
PPC Colours | Green & Black as Standard, Others Available On Request |
Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
Name | Quantity |
---|---|
Apollo 868 Mesh Gate Leaf | 2 |
Hinge Gate Post | 2 |
Adjustable Gate Eyes | 6 |
Ribbed Inserts for Posts | 2 |

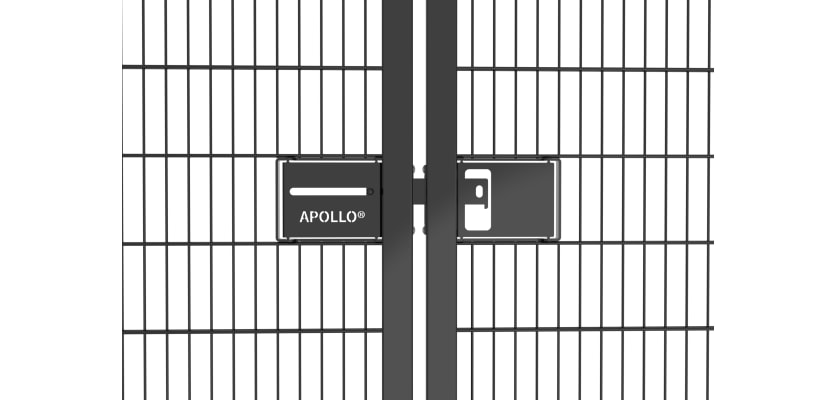

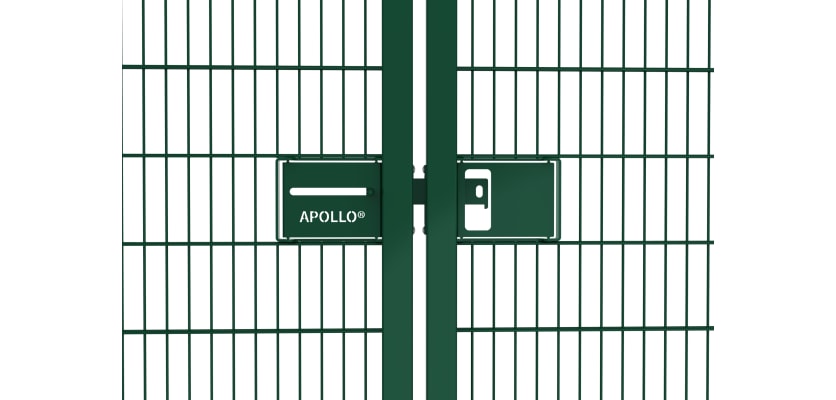

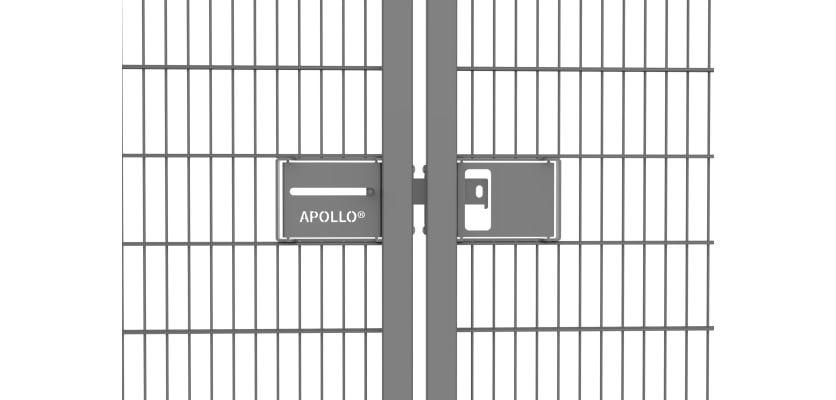

Unislide Slider Padlockable Double Leaf Gate Kit | 1 |
Apollo Plate Kit | 1 |
Auto Locking Drop Bolt | 2 |

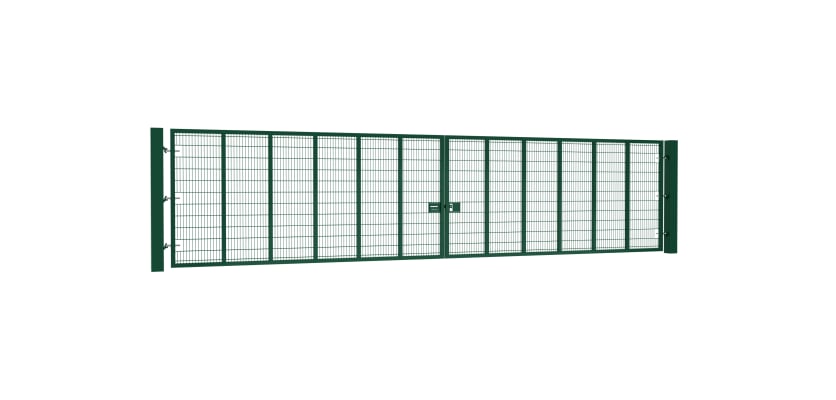

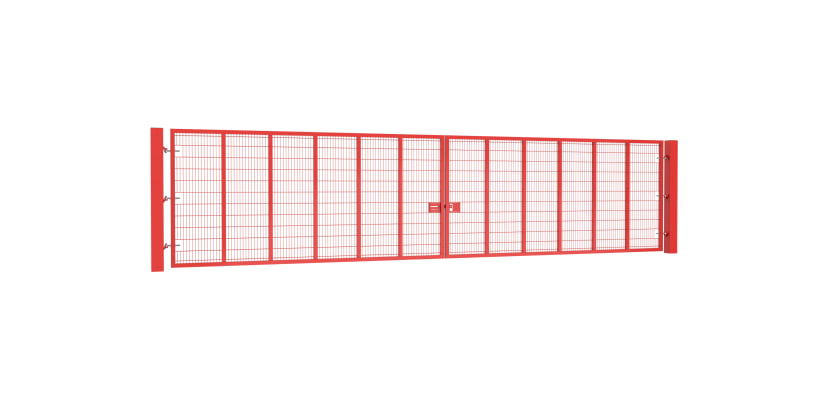

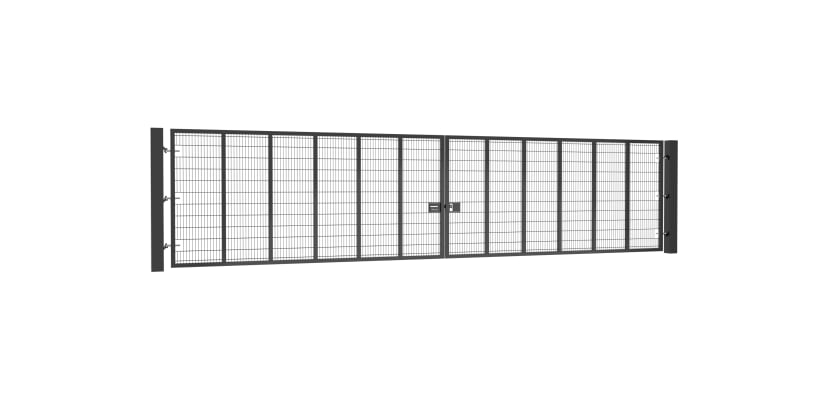

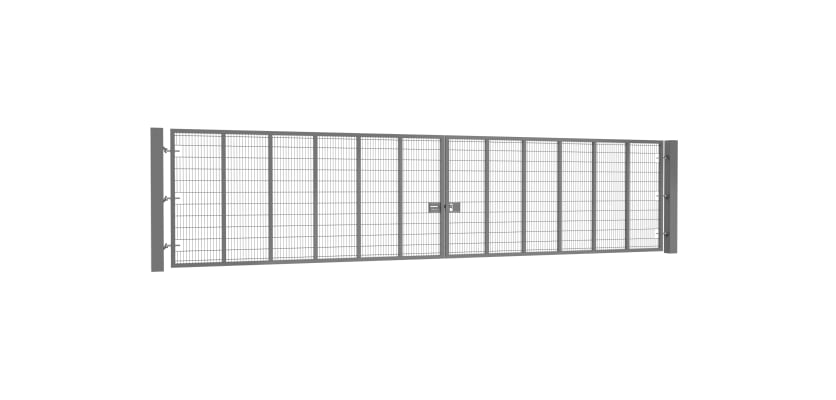

Designed with high-strength security and clear visibility in mind, the Apollo 1.2m High x 8.0m Wide 868 Twin Mesh Double Leaf Gate Kit is the ideal solution for managing access to a wide range of outdoor spaces. Whether you’re managing traffic flow in a commercial setting or securing school grounds, this wide-access gate offers the perfect blend of strength, safety, and seamless compatibility with existing mesh fencing systems. With a clear 8.0m opening and a robust 868 twin wire design, this double leaf gate is ideal for areas that see frequent pedestrian and vehicle movement.
Engineered using twin mesh technology, the Apollo gate is constructed from 6mm vertical wires welded across 8mm horizontal wires, forming a tight mesh grid that’s exceptionally strong and resistant to tampering. The narrow apertures deter climbing and prevent objects from being passed through, making this gate suitable for low to medium security sites where safety and visibility are key concerns. Common installation environments include schools, playgrounds, sports facilities, warehouses, and public buildings.
This gate kit features two 4.0m gate leaves, offering a combined opening width of 8.0 metres which is perfect for allowing the passage of large vehicles such as delivery vans, maintenance equipment, or emergency service vehicles. The 1.2m height ensures clear perimeter control without obstructing line of sight, making this gate especially suitable for areas monitored by CCTV or where passive supervision is required.
The Apollo gate system is modular and designed for maximum installation flexibility. Both gate leaves are universal, meaning they can be left- or right-hand hung depending on site layout. The gate integrates easily with standard sliders, and can be secured using a simple padlock or upgraded to a digital security lock or quick exit lock for enhanced protection and operational efficiency.
To enhance stability and safety, this gate includes three hinges per leaf and is designed in accordance with BS EN 12604 and DHF (Door and Hardware Federation) safety standards.
Mitred corners for added strength and clean visual appeal.
Available in bolt down or dig in post options, suitable for both soft and hard ground installations.
Powder coated finish (to BS EN 13438) for corrosion resistance and professional appearance.
Constructed from pre-galvanised steel to BS EN 10346 standards.
Compatible with a wide range of fencing systems including 868 twin wire, 656 twin wire, V mesh, and Safe Top fencing.
Everything you need to erect your new single leaf gate is included in this kit with the exception of post mix and ground anchor bolts. We understand how important it is to have a uniform look, which is why we also have a range of mesh fencing accessories that we sell separately, so you can amend your fencing system when necessary.
