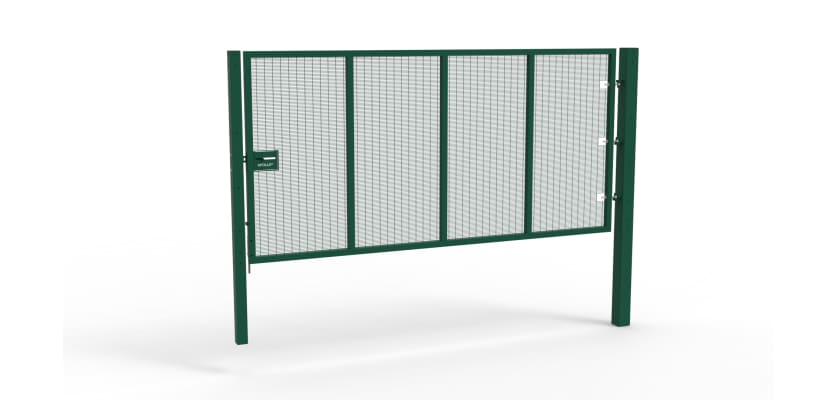

Apollo® 2.0m High x 5.0m Wide 358 Prison Mesh Single Leaf Gate Kit
Product Description
Apollo® 2.0m High x 5.0m Wide 358 Prison Mesh Single Leaf Gate Kit
When securing a wide vehicle entrance demands the highest level of protection, the Apollo® 2.0m x 4.0m 358 Prison Mesh Gate Kit is the definitive choice. This system is purpose-built to control access across a substantial 4.0-metre opening without creating a weak point in your perimeter. It masterfully combines the formidable stopping power of 358 ‘prison mesh’ with robust engineering, making it the ideal security gate for industrial estates, logistics hubs, schools, and critical infrastructure sites where there can be no compromise on security.
The core of this gate’s security lies in its 358 Prison Mesh infill. This internationally recognised high-security mesh is formed from steel wires welded into a tight grid. This design effectively prevents climbing, as it offers no finger or toe holds, and is incredibly resistant to being cut by standard tools. While providing maximum protection, the gate’s wide 4.0m single leaf ensures clear passage for large vehicles, including maintenance vans, delivery lorries, and emergency services, facilitating smooth and efficient site operations.
Constructed from heavy-duty pre-galvanised steel, this gate is engineered for a long service life with excellent resistance to rust and corrosion. For enhanced durability and to match your site’s aesthetics, a tough polyester powder-coated finish can also be applied. Safety is paramount; the large gate leaf is supported by three heavy-duty adjustable hinges to ensure stability and smooth movement. This configuration meets the stringent BS EN 12604 safety standard, protecting against gate failure. A crucial locking drop bolt is included to securely anchor the gate to the ground when open or closed, preventing unwanted movement in all conditions.
This gate kit is designed for compatibility with various mesh fencing types, including 358, 358D, 868, and 656 mesh panels, among many others. The modular construction features pre-drilled fixing points for easy installation and the flexibility to add accessories or upgrade locking mechanisms as needed.
Versatile Applications
The combination of a wide opening and maximum-security mesh makes this gate perfectly suited for:
- Warehousing, logistics, and distribution centres
- Commercial and industrial property perimeters
- Secure access for schools, colleges, and hospitals
- Data centres and utility enclosures
- Government and council facilities
What’s Included?
Each kit provides a complete gate solution, containing:
- 1 x 358 Mesh Gate Leaf (2.0m High x 4.0m Wide)
- 1 x Hinge Post and 1 x Catch Post (available as Dig-In or Bolt-Down)
- 3 x Adjustable Gate Hinges
- 1 x HD Auto Locking Drop Bolt
- 1 x HD Apollo Plate Kit
- 2 x Ribbed Inserts for Posts
- 1 x HD Unislide Single Slider Padlockable Gate Kit
Contact Us
Our friendly and knowledgeable sales team is ready to help you with any questions about this gate or your perimeter security project. Please call us on 01283 512 111 or use our online chat for immediate assistance.
Specifications & Downloads
| Height Above Ground | 2000mm |
| Access Width | 5000mm |
| Total Width | 5450mm |
| Hinge Post Size | 200 x 200mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Mesh Type | 358 Prison Mesh |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 868 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Single Slider Padlockable Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 1 |
| 2.0m Clamp Bar [30x5mm @ 2030mm] | 2 |
| M8 x 100mm Nuts and Bolts | 16 |
Specifications & Downloads
| Height Above Ground | 2000mm |
| Access Width | 5000mm |
| Total Width | 5450mm |
| Hinge Post Size | 200 x 200mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Mesh Type | 358 Prison Mesh |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 868 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Single Slider Padlockable Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 1 |
| 2.0m Clamp Bar [30x5mm @ 2030mm] | 2 |
| M8 x 100mm Nuts and Bolts | 16 |
Product Description
Apollo® 2.0m High x 5.0m Wide 358 Prison Mesh Single Leaf Gate Kit
When securing a wide vehicle entrance demands the highest level of protection, the Apollo® 2.0m x 4.0m 358 Prison Mesh Gate Kit is the definitive choice. This system is purpose-built to control access across a substantial 4.0-metre opening without creating a weak point in your perimeter. It masterfully combines the formidable stopping power of 358 ‘prison mesh’ with robust engineering, making it the ideal security gate for industrial estates, logistics hubs, schools, and critical infrastructure sites where there can be no compromise on security.
The core of this gate’s security lies in its 358 Prison Mesh infill. This internationally recognised high-security mesh is formed from steel wires welded into a tight grid. This design effectively prevents climbing, as it offers no finger or toe holds, and is incredibly resistant to being cut by standard tools. While providing maximum protection, the gate’s wide 4.0m single leaf ensures clear passage for large vehicles, including maintenance vans, delivery lorries, and emergency services, facilitating smooth and efficient site operations.
Constructed from heavy-duty pre-galvanised steel, this gate is engineered for a long service life with excellent resistance to rust and corrosion. For enhanced durability and to match your site’s aesthetics, a tough polyester powder-coated finish can also be applied. Safety is paramount; the large gate leaf is supported by three heavy-duty adjustable hinges to ensure stability and smooth movement. This configuration meets the stringent BS EN 12604 safety standard, protecting against gate failure. A crucial locking drop bolt is included to securely anchor the gate to the ground when open or closed, preventing unwanted movement in all conditions.
This gate kit is designed for compatibility with various mesh fencing types, including 358, 358D, 868, and 656 mesh panels, among many others. The modular construction features pre-drilled fixing points for easy installation and the flexibility to add accessories or upgrade locking mechanisms as needed.
Versatile Applications
The combination of a wide opening and maximum-security mesh makes this gate perfectly suited for:
- Warehousing, logistics, and distribution centres
- Commercial and industrial property perimeters
- Secure access for schools, colleges, and hospitals
- Data centres and utility enclosures
- Government and council facilities
What’s Included?
Each kit provides a complete gate solution, containing:
- 1 x 358 Mesh Gate Leaf (2.0m High x 4.0m Wide)
- 1 x Hinge Post and 1 x Catch Post (available as Dig-In or Bolt-Down)
- 3 x Adjustable Gate Hinges
- 1 x HD Auto Locking Drop Bolt
- 1 x HD Apollo Plate Kit
- 2 x Ribbed Inserts for Posts
- 1 x HD Unislide Single Slider Padlockable Gate Kit
Contact Us
Our friendly and knowledgeable sales team is ready to help you with any questions about this gate or your perimeter security project. Please call us on 01283 512 111 or use our online chat for immediate assistance.
