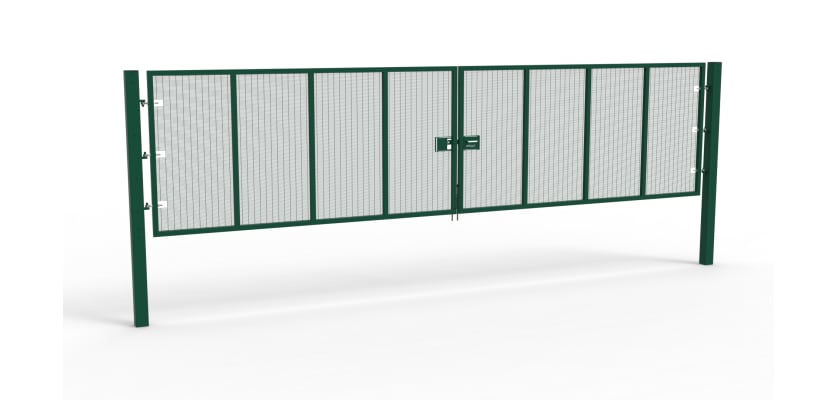

Apollo® 2.0m High x 10.0m Wide 358 Prison Mesh Double Leaf Gate Kit
Product Description
Apollo® 2.0m High x 10.0m Wide 358 Prison Mesh Double Leaf Gate Kit
The Apollo® 2.0m High x 10.0m Wide 358 Prison Mesh Double Leaf Gate Kit is engineered to secure expansive access points while providing exceptional strength, weather resistance, and visual appeal. Manufactured for heavy-duty environments, this gate is a reliable choice for logistics yards, agricultural sites, educational facilities, public parks, and industrial premises.
Extra-Wide Access with Strong Visual Presence
Spanning a full 10.0 metres in width and standing at 2.0 metres high, this double gate offers a large, clear opening that comfortably accommodates HGVs, agricultural machinery, plant vehicles, and other oversized equipment. The generous dimensions make it ideal for locations where regular large-scale access is a necessity.
Proven 358 Wire Mesh Design
This gate features the industry-recognised 358 mesh configuration of steel wires. The result is a tamper-resistant, anti-climb structure that offers excellent resistance to cutting and forced entry. The open mesh design also ensures good visibility through the gate, supporting surveillance and maintaining a welcoming site appearance.
Adaptable, Clean-Finish Frame
Both gate leaves are built with mitred corners, enhancing overall strength and creating a clean, sharp profile that suits modern fencing systems. Thanks to the universal hanging design, each leaf can be installed to swing left or right, offering maximum flexibility during setup and future adjustments.
Please note that post mix and anchor bolts are not included and should be purchased separately, depending on your installation type.
Safety First
Designed for reliability and safety, this gate includes a triple hinge system that complies with BS EN 12604 and follows DHF (Door & Hardware Federation) guidelines. This configuration helps prevent gate leaf drop in the unlikely event of a hinge failure, ensuring long-term operational safety in high-traffic areas.
Customisable Security Options
The gate comes fitted with a sliding latch that can be secured with a standard padlock. For higher security or controlled access environments, it can be easily upgraded with:
- Digital keypad locks
- Quick-release mechanisms
- Heavy-duty locking systems
This makes the gate suitable for both general access and more regulated entry points.
Built to Last
All steel components are made from pre-galvanised steel to BS EN 10346, and finished with a polyester powder coating to BS 13438, offering long-lasting protection against corrosion, rust, and environmental wear. A full range of RAL colour options is available, allowing you to match the gate to existing fencing, branding, or site zoning requirements.
Whether you’re upgrading a current fence line or building a new one, the Apollo® gate integrates easily and maintains a clean, consistent finish.
Contact Us
Our friendly and knowledgeable sales team are here to help with any questions you may have, so please don't hesitate to contact us. We can be reached by phone at 01283 512 111 or by email at sales@firstfence.co.uk. You can also speak to one of the team members through the live chat system.
Specifications & Downloads
| Height Above Ground | 2000mm |
| Access Width | 10000mm |
| Total Width | 10670mm |
| Hinge Post Size | 200mm x 200mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Post Type | Square Hollow Section |
| Gate Type | Double Leaf Gate |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Slider Padlockable Double Leaf Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 2 |
| 2.0m Clamp Bar [30x5mm @ 2030mm] | 2 |
| M8 x 100mm Nuts and Bolts | 16 |
Specifications & Downloads
| Height Above Ground | 2000mm |
| Access Width | 10000mm |
| Total Width | 10670mm |
| Hinge Post Size | 200mm x 200mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Post Type | Square Hollow Section |
| Gate Type | Double Leaf Gate |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Slider Padlockable Double Leaf Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 2 |
| 2.0m Clamp Bar [30x5mm @ 2030mm] | 2 |
| M8 x 100mm Nuts and Bolts | 16 |
