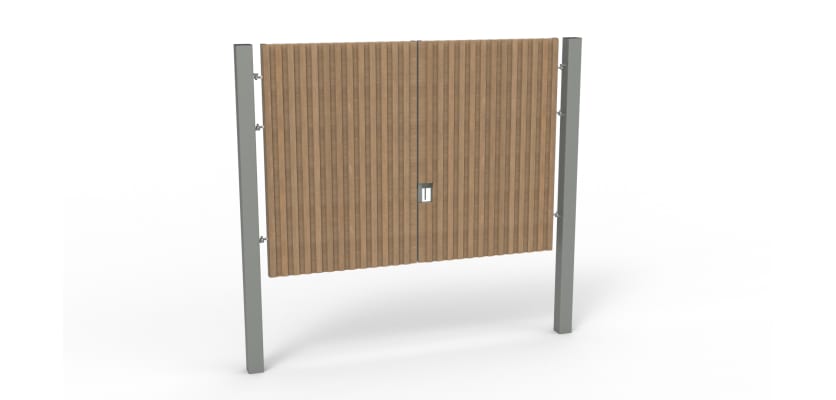

3.0m High x 4.0m Wide AcoustiGuard® SR1 (A1) LPS 1175 Double Leaf Gate Kit
Product Description
3.0m High x 4.0m Wide AcoustiGuard® SR1 (A1) LPS 1175 Double Leaf Gate Kit
Standing at 3.0m tall with a 4.0m span, the AcoustiGuard® SR1 Gate Kit is purpose-designed to secure demanding commercial and industrial environments. The maximum anti-climb height offers a strong deterrent against unauthorised access, while the 4.0m width provides smooth access for delivery fleets and operational traffic. Supplied as a complete pre-assembled system, installation is efficient and precise, making it a practical choice for warehouses, logistics centres, factories, and other large-scale sites where high security and acoustic control are essential.
Understanding LPS 1175
The LPS 1175 SR1 (A1) certification, issued by the Loss Prevention Certification Board (LPCB), is an internationally recognised benchmark for physical security. Achieving this rating requires a product to pass extensive independent testing that replicates real-world attack methods. By selecting a gate with this approval, you gain assurance that its resistance to intrusion is not just a claim but a verifiable, repeatable standard. This independent validation provides complete confidence in its performance as part of a wider perimeter security strategy.
Compliance with BS EN 1794-1 and BS EN 1794-2
Designed for resilience, this gate has been engineered in line with BS EN 1794-2 to ensure structural integrity under heavy use and exposure to challenging weather conditions. Reinforced posts and a galvanised steel frame provide the stability required for long-term service. Alongside its physical strength, the system incorporates a BS EN 1794-1 compliant acoustic timber facade, effectively reducing noise pollution. This makes it a responsible solution for sites operating near residential areas or within busy industrial zones.
Technical Specifications
- Installed height: 3000mm
- Clear opening: 4000mm
- Support posts: 120x120x4mm box section for secure anchoring
- Gate arrangement: right-hand hung primary leaf (viewed externally)
- Frame: hot-dip galvanised steel to ISO 1461 for corrosion resistance
- Acoustic surface: pressure-treated Tanalised UC4 timber panels
- Delivery: supplied as a fully assembled unit for straightforward installation
Speak to Our Team
Choosing the right security gate is vital for protecting high-value assets and maintaining operational efficiency. Contact First Fence to learn more about the AcoustiGuard® SR1 Gate Kit and request a tailored quotation. You can call us on 01283 512 111 or email sales@firstfence.co.uk. You can also connect with us via our live chat service for more information.
Specifications & Downloads
| Kit Type | Assembled [Fully Assembled for Lifting] |
| Height | 3000mm [Installed] |
| Access Width | 4000mm |
| Box Sections of Posts | 120x120x4mm |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Material | Hot Dip Galvanised Steel [Gate Frame] Tanalised UC4 Timber [Acoustic Face] |
| PPC Colours | Galvanised Only |
| Compliant To | ISO 1461 [Galvanising] |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| Sliding Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Hinge Post | 2 |
| SR1 Adjustable Gate Eyes | 6 |
| Ribbes Inserts [For Gate Posts] | 2 |
| Ribbed Inserts [For Gate Frame] | 4 |
| Drop Bolt | 2 |
| AcoustiGuard® Absorb Timber Infill | 2 |
Specifications & Downloads
| Kit Type | Assembled [Fully Assembled for Lifting] |
| Height | 3000mm [Installed] |
| Access Width | 4000mm |
| Box Sections of Posts | 120x120x4mm |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Material | Hot Dip Galvanised Steel [Gate Frame] Tanalised UC4 Timber [Acoustic Face] |
| PPC Colours | Galvanised Only |
| Compliant To | ISO 1461 [Galvanising] |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| Sliding Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Hinge Post | 2 |
| SR1 Adjustable Gate Eyes | 6 |
| Ribbes Inserts [For Gate Posts] | 2 |
| Ribbed Inserts [For Gate Frame] | 4 |
| Drop Bolt | 2 |
| AcoustiGuard® Absorb Timber Infill | 2 |
