3.0m High AcoustiGuard® SR1 (A1) LPS 1175 Acoustic Fencing Kit

3.0m High AcoustiGuard®SR1 (A1) LPS 1175 Acoustic Fencing Kit

The 3.0m High AcoustiGuard® SR1 (A1) LPS 1175 Acoustic Fencing Kit is a maximum-security, high-performance barrier system designed for the most demanding environments. Its impressive 3.0-metre height delivers an exceptional level of physical security and privacy, while its advanced acoustic construction provides a powerful shield against significant noise pollution. This makes it the premier choice for protecting national infrastructure, high-value industrial sites, airports, and major transport corridors where both security and environmental acoustics are paramount. Built from the highest quality UC4-treated timber and heavy-duty galvanised steel, this system is engineered for decades of reliable service. The panels are supplied fully assembled, ready for lifting, to ensure installation is as efficient as possible.

Certified Security – LPS 1175 SR1 (A1)

When specifying security fencing, independent certification from a trusted body is non-negotiable. The AcoustiGuard® system is proudly certified to LPS 1175 SR1 (A1) by the Loss Prevention Certification Board (LPCB), an internationally respected leader in the testing of security and fire protection products. LPS 1175 is the authoritative UK standard for assessing the resistance of physical security systems to deliberate forced entry. The SR1 (A1) rating provides assurance that the fencing can withstand a determined attack for a minimum of 60 seconds from an intruder using a range of small, common hand tools like screwdrivers, pliers, and knives, that an opportunistic attacker could easily conceal. The test simulates a pragmatic, determined attempt to breach the perimeter. By achieving this certification, the AcoustiGuard® fence proves its ability to act as a robust deterrent, delaying would-be intruders and providing a critical time advantage for security personnel to respond effectively. The integration of a formidable 358 mesh security panel at the heart of the structure is key to this resistance. This LPCB certification offers proven, tangible evidence of the system's security effectiveness.

Acoustic Performance – BS EN 1793 & BS EN 1794

In parallel with its security credentials, the AcoustiGuard® system is engineered as a superior acoustic barrier, fully tested and compliant with rigorous European standards. The entire system is designed in accordance with the specification for Highways Works Clause 2504, and its timber components are treated under Sector Scheme 4, making it approved for use on the most sensitive infrastructure projects. The system is tested and complies to BS EN 1793 Road Traffic Noise Reducing Devices, BS EN 1794-1 and BS EN 1794-2. This is the definitive test for a barrier's ability to control noise, assessing sound insulation and absorption. The system's high-mass design, boasting an average panel density of 71kg/m² (excluding posts), is the foundation of its excellent insulating properties. The composite, multi-layer panel—featuring heavy timber boards, a dedicated EchoAbsorb insulation core, and the internal security mesh—blocks and dissipates sound waves with remarkable efficiency. The standards also certify that the barrier is structurally sound, safe, and built for long-term durability by assessing its mechanical performance, including the structural capacity to handle extreme wind loading and other physical stresses. The system's strength is guaranteed by the use of substantial steel posts set in deep concrete foundations. This holistic approach to certification ensures the AcoustiGuard® system is a truly comprehensive and reliable perimeter solution.

Key Features and Benefits

The 3.0m AcoustiGuard® SR1 fencing kit is meticulously engineered with features that deliver uncompromising performance.

• Premium Dual-Certified System: Provides two vital functions in a single, optimised solution: LPCB-certified SR1 (A1) security against intrusion and BS EN 1793-compliant acoustic performance. This integrated approach enhances efficiency, reduces the installation footprint, and offers superior value.

  Maximum-Durability Materials: All timber is Class UC4 Tanalised in accordance with BS 8417, a high-pressure treatment that provides the ultimate protection against rot and insect attack, even in permanent ground contact. All steelwork is heavily protected against corrosion through galvanisation to ISO 1461 or zinc plating to ISO 4042/ISO 2081.

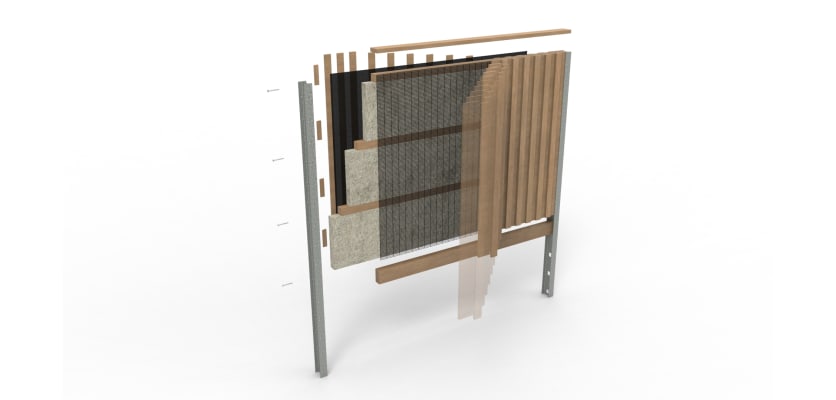

  Advanced High-Performance Panel Construction: The 2.42m wide panels are constructed with a sophisticated multi-layer design. They feature heavy-duty 150x22mm EchoAbsorb Straight Boards, a thick core of 475x75mm EchoAbsorb Insulation protected from moisture by a nylon water-resistant sheet, and an integral 358 security mesh panel. The structure is finished with a 125x38mm Capping Rail and a robust 150x75mm Gravel Board, which provides a 100mm air gap from the ground to preserve the timber.

• Heavy-Duty Structural Frame: To support the 3.0m height, this system utilises powerful 127 x 76mm steel RSJ posts, supplied at an overall length of 4200mm. These are installed using the "Dig In" fixing method, requiring a minimum C20/25 concrete foundation of 650x300x300mm and a dig-in depth of 1200mm for absolute structural stability.
•

• Engineered for Mass and Strength: This substantial kit weighs 286.15 kg, and its high panel density of 71kg/m² is crucial for its superior sound insulation. Panels are securely bolted to the posts with flange hex head wood screws to create a unified, immovable barrier and prevent any lifting of the acoustic panel.

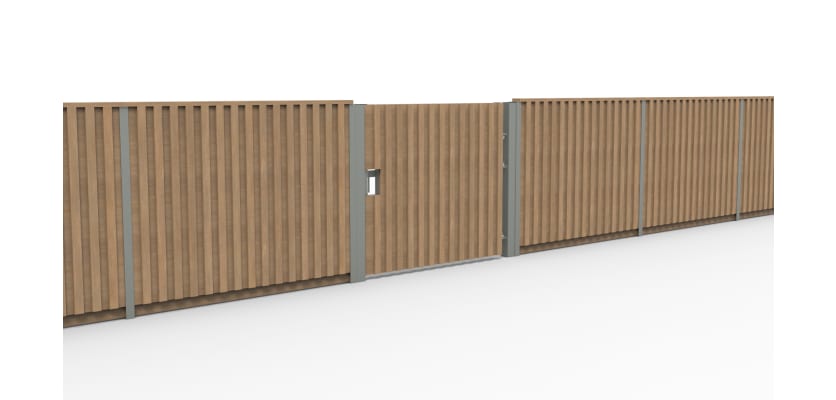

  Versatile and Continuous Installation: The system is designed to create seamless, continuous runs and can easily be installed around corners of any angle. To maintain full SR1 compliance, corner posts are installed adjacent to each other as detailed in the installation drawings.

  Compatible Acoustic Gates: Matching 3.0m High AcoustiGuard® SR1 (A1) Acoustic Gates are available, ensuring seamless integration and consistent perimeter performance.
