3.0m High x 3.0m Wide EchoReflect Reflective Acoustic Fencing Kit
Use Our PostPro Calculation Service
Unsure if our recommended steel posts are right for you? Simply tell us about your site and height for an engineers report on post suitability:
| Height | 3.0m [Installed] |
| Width | 3.0m |
| Panel Material | Timber [Incised and Pressure Treated] |
| Colour | Tanalised UC4 [Pale Green] |
| Weight | 155kg |
| Ground Fixing | Dig In |
| Timber Compliant To | BS 8417 [Timber Treatment] |
| System Compliant To | BS EN 1793 Road Traffic Noise Reducing Devices |
| Manufacturing Standards | BS 8417 [Timber Treatment] |
| Manufacturing Standards | BS EN 1793 Road Traffic Noise Reducing Devices |
| Manufacturing Standards | Tested and Complies to BS EN 1794-1 and BS EN 1794-2 |
| Manufacturing Standards | Design in accordance with specification for Highways Works Clause 2504. Treatment to Sector Scheme 4 |
| Density | Average Density 26.4kg/m² [Excluding Posts] |
| Name | Quantity |
|---|---|
| EchoReflect Straight Boards [150mm x 22mm x 2.9m] | 20 |
| Timber Gravel Board [3.0m x 150mm x 50mm] | 1 |
| Capping Rail [3.0m x 100mm x 50>38mm] | 1 |
| Horizontal Rail [100mm x 50mm x 3.0m] | 4 |
| Cover Strips [75mm x 22mm x 2.9m] | 20 |
3.0m High x 3.0m Wide EchoReflect Reflective Acoustic Fencing Kit
Please note, this kit does not come with fixings. For fixing to timber posts you will need 10 M10 x 150mm Coach Screws and approximately 310 64mm stainless steel nails that are appropriate for your own nail gun.
This product is manufactured from Sawn Spruce and may cause splinters.
Please note that we do not advise bolting down your Acoustic Fencing. For the most secure results, we recommend digging in to help ensure site safety and wind loading.
Reclaim your peace and privacy with the EchoReflect Acoustic Fencing Kit. Designed to combat the stress of unwanted noise, our premium timber barriers effectively block sound from traffic and busy surroundings, transforming your space into a comfortable and inviting environment. Perfect for homes, schools, and businesses, the beautiful timber design enhances your property's charm while providing a robust sound shield.
This 3.0m x 3.0m kit is available in a convenient, loose-component form or as a pre-assembled panel, with a precision-engineered profile that ensures a gap-free barrier for ultimate noise control. Wider fence panels provide clear benefits: lower material costs with fewer parts, quicker, more efficient installation, and a cleaner appearance thanks to fewer vertical posts.
Features and Benefits

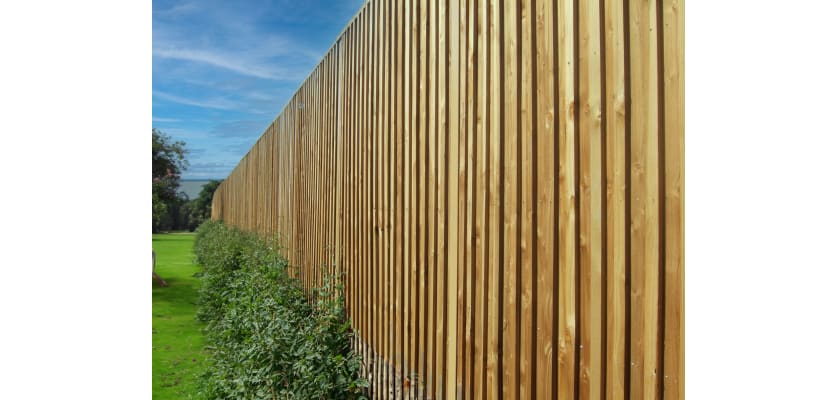

Effective Noise Reduction: These timber barriers redirect sound waves using a profile of vertical sawn boards and cover strips, minimising sound transmission.
Certified Performance: Independently tested by Salford University, this system meets Highways England requirements (BS EN 1793) for road traffic noise reduction and complies with BS EN 1794-1 and BS EN 1794-2.
Superior Durability: Manufactured from Tanalised (UC4), pressure-treated timber from an FSC certified supplier. The timber is surface incised to achieve maximum preservative protection for ground contact, ensuring a long life.
Long Service Life: Designed to be maintenance-free, the timber boasts a 30-year desired service life as specified by the manufacturer (subject to correct installation and site conditions).
Natural Aesthetic: The timber's natural pale green colour blends beautifully with outdoor surroundings. It can be painted or stained with a breathable finish if desired.
Enhanced Privacy & Security: Beyond noise control, these solid fence panels increase privacy and offer a more attractive alternative to industrial security fencing.
Kit Contents and Options
This loose kit contains all the timber components for one 3.0m wide bay: Straight Boards, a Timber Gravel Board, a Capping Rail, Horizontal Rails, and Cover Strips.
You can choose to install your panels using either wooden posts or galvanised RSJ steel posts. Make your selection when adding to your order.
Installation Guidance
For the most secure and effective installation, we strongly recommend digging the posts in rather than bolting them down.

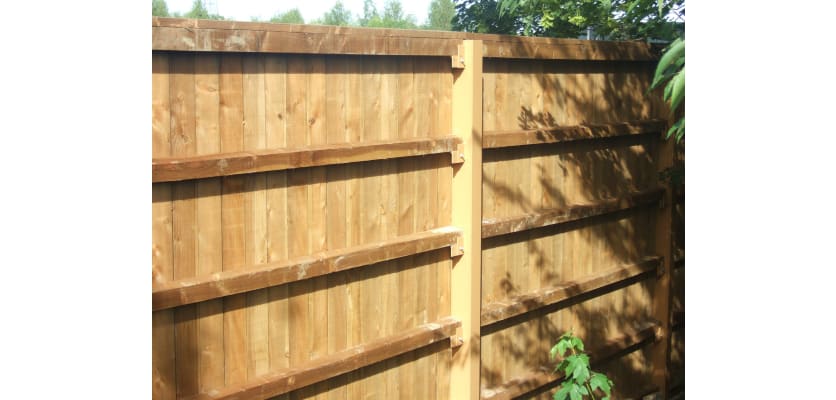

Installation is straightforward. Once your posts are securely in place at 3.0m centres, fix the horizontal rails to the posts at equal spacings. With the support structure in place, begin attaching the vertical boards, ensuring they are butted up closely to each other and nailed to the rails. Next, attach the cover strips over each vertical joint using 64mm stainless steel nails. Finally, fix the capping rail to the top of the panel to provide a clean finish and help shed rainwater.
Before installation, clear any vegetation along the fence line and ensure panels will not sit in standing water. For advice on wind load suitability in your area, please consult a structural engineer
Explore Our Acoustic Range
These EchoReflect panels not only enhance aesthetics but also provide a proven solution for unwanted noise in residential, commercial, transport, and industrial settings.
Our EchoReflect Panels are available in many heights from 1.8m to 10.0m; they are also available in a 2.4m wide panel. For different acoustic properties, why not explore our EchoGroove and EchoAbsorb ranges, or view our full selection of Sound Absorption Barriers and accessories.
Get in Touch
For any enquiries about this product line, please contact us. Our dedicated sales team is ready to assist you and can be reached at 01283 512111 or through our convenient online chat tool.
