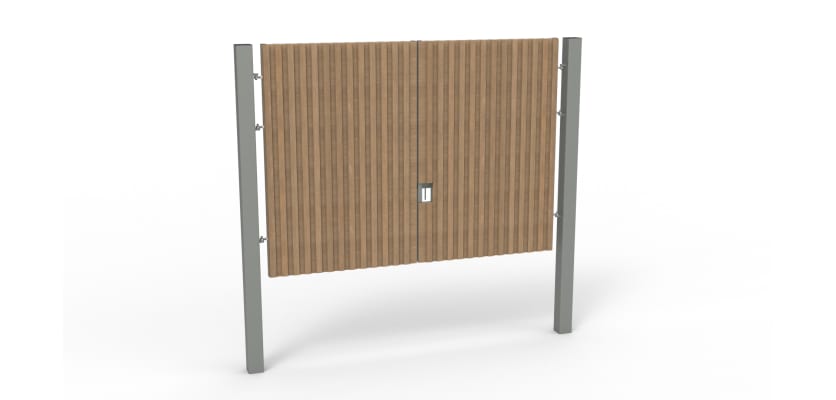

2.0m High x 3.0m Wide AcoustiGuard® SR1 (A1) LPS 1175 Double Leaf Gate Kit
Product Description
2.0m High x 3.0m Wide AcoustiGuard® SR1 (A1) LPS 1175 Double Leaf Gate Kit
The AcoustiGuard® SR1 Double Leaf Gate Kit, measuring 2.0m high by 3.0m wide, provides the ideal mix of secure access and noise reduction for everyday vehicle entry. With a 3.0m clear width, it comfortably accommodates cars, vans, and lighter commercial vehicles, while the 2.0m height offers a dependable barrier against unauthorised entry. Delivered to the site fully pre-assembled, it can be lifted directly into position, reducing disruption and speeding up installation. This makes it a strong choice for business parks, technology hubs, and sensitive commercial locations where site protection and acoustic management must go hand in hand.
Understanding LPS 1175 Certification
This gate is independently approved to the LPS 1175 SR1 (A1) standard by the Loss Prevention Certification Board. To achieve this rating, the product must withstand a one-minute forced entry attempt carried out with ‘Toolkit A’, a restricted set of everyday tools often associated with low-level break-ins. Passing this test demonstrates the gate’s ability to delay intrusion, making it a trusted and insurable part of a wider security system. For operators, this certification is reassurance that the product delivers real-world resistance to opportunistic threats.
Built to BS EN 1794 Standards
As well as delivering proven security, this gate has been designed and tested against BS EN 1794-1 and BS EN 1794-2. BS EN 1794-1 focuses on acoustic performance, and the timber-faced design effectively reduces noise transmission, whether containing sound from within or blocking external sources. BS EN 1794-2 covers structural requirements, ensuring the gate can safely withstand wind loading and environmental forces. Together, these standards confirm the system’s ability to deliver lasting acoustic and physical protection.
Key Specifications
- Kit Type: Supplied fully assembled for quick lifting and installation.
- Height: 2000mm (2.0m) installed.
- Width: 3000mm (3.0m) clear opening for standard vehicle access.
- Posts: 120x120x4mm box section steel posts for reliable support.
- Leaf Setup: Standard right-hand hung (from outside looking in).
- Materials: Combination of hot dip galvanised steel (ISO 1461 compliant) and pressure-treated UC4 timber for acoustic control and long-term durability.
- Finish: Galvanised-only coating for corrosion resistance and longevity.
- Certification: Independently tested to LPS 1175 SR1 (A1).
Contact Us
If you have any questions about our AcoustiGuard® range or any of our SR1 (A1) LPS 1175 rated products, please get in touch. Our friendly First Fence are available by phone on 01283 512 111 or by email at sales@firstfence.co.uk. You can also connect via our live chat service.
Specifications & Downloads
| Kit Type | Assembled [Fully Assembled for Lifting] |
| Height | 2000mm [Installed] |
| Access Width | 3000mm |
| Box Sections of Posts | 120x120x4mm |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Material | Hot Dip Galvanised Steel [Gate Frame] Tanalised UC4 Timber [Acoustic Face] |
| PPC Colours | Galvanised Only |
| Compliant To | ISO 1461 [Galvanising] |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| Sliding Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Hinge Post | 2 |
| SR1 Adjustable Gate Eyes | 6 |
| Ribbes Inserts [For Gate Posts] | 2 |
| Ribbed Inserts [For Gate Frame] | 4 |
| Drop Bolt | 2 |
| AcoustiGuard® Absorb Timber Infill | 2 |
