1.8m High x 3.0m Wide AcoustiGuard® SR1 (A1) LPS 1175 Single Leaf Gate Kit
Product Description

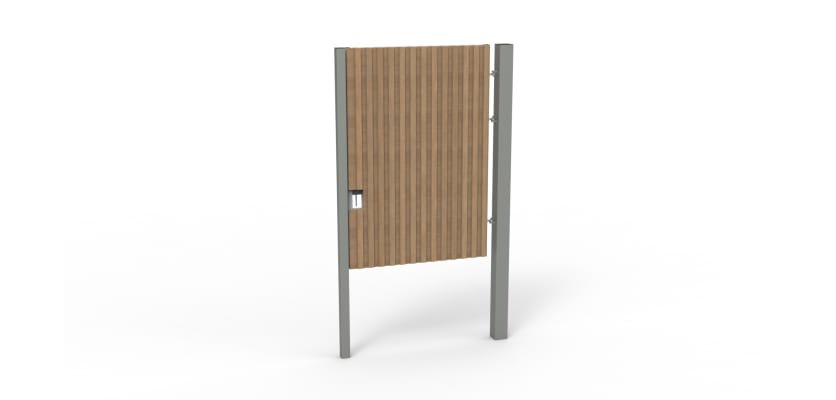

AcoustiGuard® SR1 (A1) Single Leaf Gate Kit: 1.8m High x 3.0m Wide
The AcoustiGuard® SR1 (A1) Gate Kit offers a high-security, noise-reducing solution designed for sensitive sites requiring certified perimeter protection with acoustic performance. Developed by First Fence, this 3.0m wide single leaf gate forms part of the AcoustiGuard® range, engineered to meet rigorous physical security standards while also addressing noise pollution concerns.
Certified to LPS 1175 SR1 (A1) and tested in accordance with BS EN 1794-1 and BS EN 1794-2, this gate provides a dual-function solution that meets both security and environmental performance specifications for demanding infrastructure, commercial, and public sector applications.
Certified Security: LPS 1175 SR1 (A1)
This gate has been independently tested and certified by the Loss Prevention Certification Board (LPCB) to LPS 1175 Issue 8, Security Rating 1 (A1). It is designed to resist unauthorised access from opportunistic attackers using basic hand tools as defined in Toolset A.
The gate is supplied fully assembled for lifting, ensuring consistent structural integrity from manufacture to installation. Featuring a welded hot dip galvanised steel frame, SR1-rated eyebolt hinges, tamper-resistant fixings, and anti-lift components, this gate forms a secure entry point within any LPS 1175 SR1 (A1) perimeter system.
Proven Acoustic Performance: BS EN 1794-1 & BS EN 1794-2
Alongside its security credentials, the AcoustiGuard® range also delivers performance-tested acoustic control. Designed to comply with BS EN 1794-1 (structural requirements) and BS EN 1794-2 (noise attenuation), the timber-faced gate helps mitigate environmental noise levels from adjacent roadways, railways, industrial zones, and plant sites.

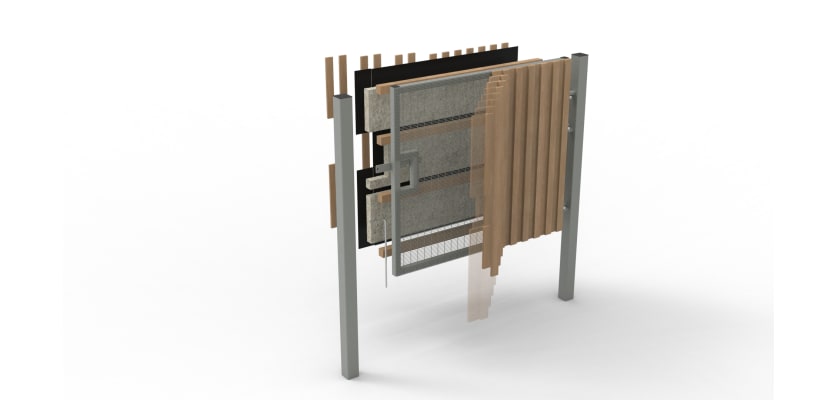

The face of the gate is clad with tanalised UC4 acoustic timber boards, which absorb and deflect sound. These boards are securely fixed within the steel frame to ensure long-term durability and acoustic performance. This makes the gate ideal for installations where meeting planning regulations or environmental noise limits is a key requirement.
Engineered for Strength and Longevity
This 3.0m wide gate is built with heavier post sections to support the additional weight and maintain rigidity. The hinge post is constructed from 150 x 150 mm x 5 mm steel box section, while the catch post uses a 120 x 120 mm x 4 mm profile. This provides enhanced structural stability under load and during attempted intrusion.
The frame is manufactured from hot dip galvanised steel in accordance with ISO 1461, offering superior corrosion resistance even in exposed or high-moisture environments. The gate is supplied in a galvanised-only finish, which can be left untreated or over-coated as required on site. All timber elements are treated to UC4 specification, ensuring resistance to decay and suitability for permanent external installation.
Installation Guidance
Installation is via dig-in (concrete-in) posts only, in accordance with the LPS 1175 certification. All posts must be set in concrete to the specified depth and foundation dimensions outlined in the certified gate drawings.

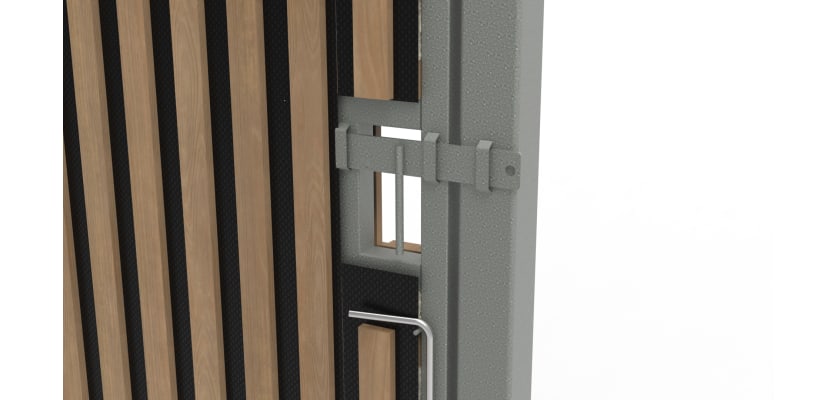

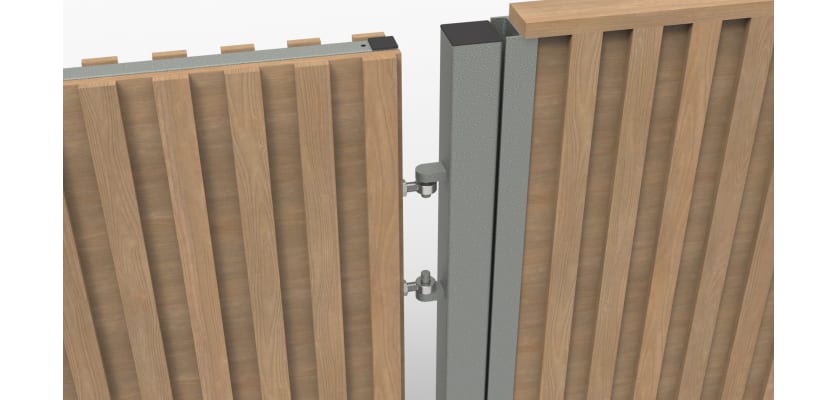

Each gate includes all necessary SR1-rated hardware, including eyebolt hinges, drop bolts (where required), anti-removal fixings, and M8 shear-nut fasteners. All fixings must be used as supplied to ensure compliance with the gate’s LPS 1175 SR1 (A1) rating. The standard gate configuration includes a 50 mm ground clearance, and the gate is right-hand hung when viewed from outside the secure area.
Versatile and Compatible
The gate integrates seamlessly into a wider AcoustiGuard® perimeter fencing system, or it can be installed as a standalone secure access point. When installed in conjunction with matching acoustic fencing panels, the result is a visually consistent, security-rated, and acoustically tested boundary line that meets the requirements of both security consultants and environmental planners.
This size, 1.8m high x 3.0m wide, offers a larger clear opening, suitable for service vehicles, maintenance access, or wide pedestrian routes, while maintaining full compliance with security and acoustic regulations.
Ideal Applications
This gate is ideal for installations in the following environments:
- Highway and transport infrastructure
- Utility compounds and substations
- Schools and educational facilities
- Rail infrastructure
- Industrial or commercial developments
- Residential areas near busy roads or railways
Where both security and sound control are essential, the AcoustiGuard® SR1 (A1) range provides a certified solution.
Why Specify AcoustiGuard® by First Fence?
- Fully certified to LPS 1175 SR1 (A1)
- Acoustic performance verified to BS EN 1794-1 and BS EN 1794-2
- UC4 treated timber acoustic cladding
- Supplied fully assembled for easy site handling
- Hot dip galvanised steel frame to ISO 1461
- Installed using dig-in post foundations only
- Made in the UK and supported nationwide
Contact us
Should you have any questions about this range of LPS 1175 rated fencing, or for more information on stock and availability, please don’t hesitate to contact us. We can be reached via phone on 01283 512 111, via email at sales@firstfence.co.uk or we can be reached via our online chat system, where one of our helpful and friendly staff will be more than happy to assist you.
Specifications & Downloads
| Kit Type | Assembled [Fully Assembled for Lifting] |
| Height | 1800mm [Installed] |
| Access Width | 3000mm |
| Box Sections of Posts | 150x150mm x 5mm [Hinge], 120x120mm x 4mm [Catch] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Material | Hot Dip Galvanised Steel [Gate Frame] Tanalised UC4 Timber [Acoustic Face] |
| PPC Colours | Galvanised Only |
| Compliant To | ISO 1461 [Galvanising] |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| Sliding Gate Leaf | 1 |
| Catch Post | 1 |
| Hinge Post | 1 |
| SR1 Adjustable Gate Eyes | 3 |
| Ribbes Inserts [For Gate Posts] | 2 |
| Ribbed Inserts [For Gate Frame] | 2 |
| Drop Bolt | 1 |
| AcoustiGuard® Absorb Timber Infill | 1 |
Specifications & Downloads
| Kit Type | Assembled [Fully Assembled for Lifting] |
| Height | 1800mm [Installed] |
| Access Width | 3000mm |
| Box Sections of Posts | 150x150mm x 5mm [Hinge], 120x120mm x 4mm [Catch] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Material | Hot Dip Galvanised Steel [Gate Frame] Tanalised UC4 Timber [Acoustic Face] |
| PPC Colours | Galvanised Only |
| Compliant To | ISO 1461 [Galvanising] |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| Sliding Gate Leaf | 1 |
| Catch Post | 1 |
| Hinge Post | 1 |
| SR1 Adjustable Gate Eyes | 3 |
| Ribbes Inserts [For Gate Posts] | 2 |
| Ribbed Inserts [For Gate Frame] | 2 |
| Drop Bolt | 1 |
| AcoustiGuard® Absorb Timber Infill | 1 |
