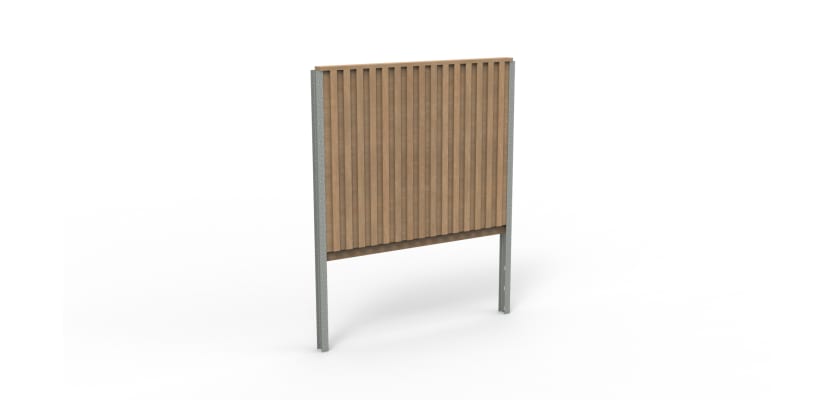

1.8m High AcoustiGuard® SR1 (A1) LPS 1175 Acoustic Fencing Kit
Product Description
1.8m High AcoustiGuard® SR1 (A1) LPS 1175 Acoustic Fencing Kit

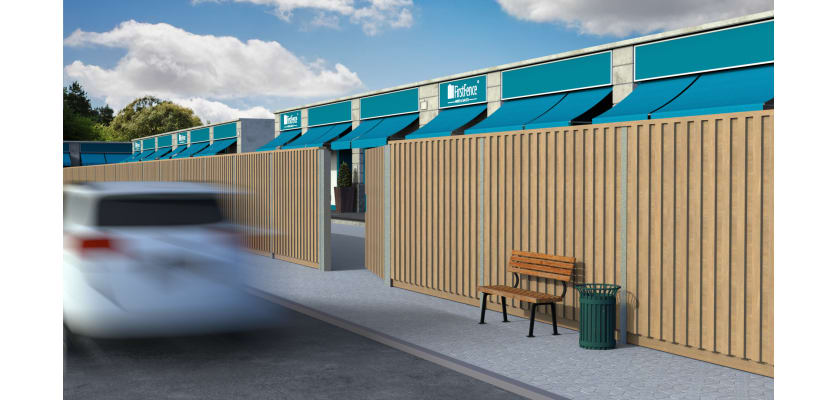

The 1.8m High AcoustiGuard® SR1 (A1) LPS 1175 Acoustic Fencing Kit represents the pinnacle of dual-purpose perimeter solutions, expertly engineered to provide both certified security and exceptional acoustic performance. This system is designed for environments where mitigating noise pollution is as critical as preventing unauthorised access. Ideal for deployment along busy roadways, railway lines, commercial and industrial estates, and sensitive residential areas, this fencing kit offers a robust and effective barrier. With a finished height of 1.8 metres out of the ground, it provides a significant physical and auditory shield without being overly imposing, making it a versatile choice for a wide range of applications. Each kit is supplied with components manufactured to the highest standards, including pressure-treated UC4 timber and galvanised steel, ensuring longevity and performance in even the most demanding conditions. The kit comes fully assembled and ready for lifting, streamlining the installation process for professional contractors.
Understanding LPS 1175 SR1 (A1)
When selecting a security fencing system, third-party certification provides undeniable proof of its effectiveness. The AcoustiGuard® system is rigorously tested and certified to LPS 1175 SR1 (A1), a prestigious security standard governed by the Loss Prevention Certification Board (LPCB). LPS 1175 is the benchmark specification for physical security products, evaluating their resistance to forced entry. The SR1 (A1) rating signifies that the fencing system can withstand a determined attack lasting for at least 60 seconds from an intruder using a range of small, easily concealed hand tools, such as screwdrivers, pliers, and knives that an opportunistic attacker might carry. The test is designed to simulate a realistic, low-tech intrusion attempt. Achieving this certification means that the AcoustiGuard® fence provides a critical delay, frustrating potential intruders and giving on-site security or law enforcement valuable time to respond. The security of this system is enhanced by the integration of a 358 mesh fence panel within its core structure, creating a formidable barrier that is incredibly difficult to cut or climb. This certified level of protection offers invaluable peace of mind, assuring you that your perimeter is not just a demarcation line but a proven deterrent against unauthorised access.
Understanding BS EN 1793 and BS EN 1794 Compliance
Beyond its security credentials, the AcoustiGuard® system is engineered as a high-performance acoustic barrier, tested and compliant with multiple European standards. Its design conforms to the specifications for Highways Works Clause 2504 and is manufactured to Sector Scheme 4 for the treatment of timber, making it suitable for major infrastructure projects. The system is tested and complies with BS EN 1793 Road Traffic Noise Reducing Devices, BS EN 1794-1 and BS EN 1794-2. This standard is the definitive measure of a barrier's ability to control noise. The AcoustiGuard® fence has been tested to determine its performance in sound insulation, which measures the amount of sound energy blocked from passing directly through the fence. The system’s high mass, with an average panel density of 71kg/m² (excluding posts), is critical to its success. Its layered construction, featuring heavy-duty timber boards, specialised EchoAbsorb insulation, and a rigid mesh core, works in unison to reflect and dissipate sound waves, significantly reducing noise levels on the other side. These standards also ensure the barrier is safe, durable, and able to withstand environmental stresses such as wind loading. The robust construction, anchored by substantial steel posts set in concrete foundations, guarantees the fence's structural integrity over its lifespan. This comprehensive compliance ensures the AcoustiGuard® system is a reliable, long-lasting investment for noise and security control.
To complement this fencing system, we also offer compatible 1.8m High AcoustiGuard® SR1 (A1) LPS 1175 Acoustic Gates, designed to provide seamless integration and consistent performance across your perimeter.
Features & Benefits
The 1.8m AcoustiGuard® SR1 fencing kit is packed with features designed for performance, durability, and ease of installation.
Dual-Certified Protection: A single, integrated solution providing both LPCB-certified SR1 (A1) security and BS EN 1793-compliant noise reduction. This eliminates the need for separate security and acoustic barriers, saving space and cost.
Premium Materials: All timber components are Class UC4 Tanalised, meaning they have been pressure-treated for permanent ground contact. This provides the highest level of protection against rot and insect infestation, conforming to BS 8417 standards and ensuring a long service life. All steel components are galvanised to ISO 1461 or zinc plated to ISO 4042/ISO 2081 for superior corrosion resistance.

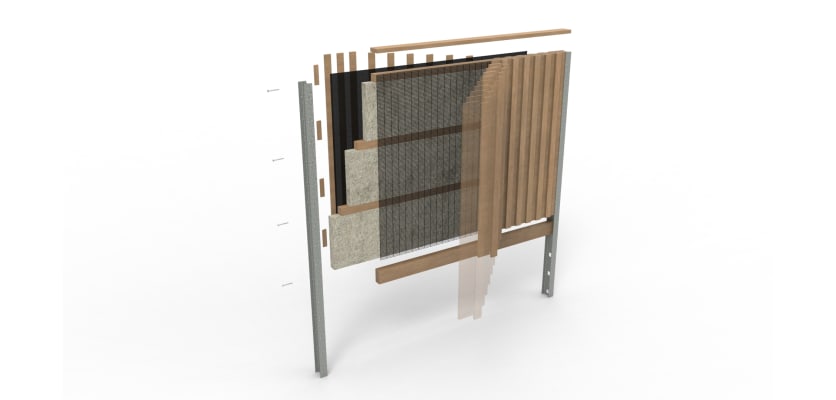

Advanced Panel Construction: The 2.42m wide panels are expertly constructed in a multi-layered design for maximum performance. This includes 150x22mm EchoAbsorb Straight Boards, a core of 475x75mm EchoAbsorb Insulation protected by a nylon water-resistant sheet, and an integrated 358 security mesh panel. The panel is finished with a 125x38mm Capping Rail and a 150x75mm Gravel Board, which ensures a 100mm ground clearance to protect the timber.
Robust Framework: The system is supported by heavy-duty 127 x 76mm steel RSJ posts, supplied at a length of 2700mm for this 1.8m high fence. These are designed for a "Dig In" fixing method, requiring a minimum C20/25 concrete foundation with a 900mm dig-in depth for unparalleled stability.
Engineered for Performance: The total kit weight is 188.15 kg, contributing to its high average density of 71kg/m² for excellent sound insulation. The acoustic panels are secured to the posts with M10x100mm flange hex head wood screws to prevent lifting.
Installation Versatility: The system is designed for creating continuous runs and can accommodate corners of any angle. For SR1 compliance at corners, the posts must be dug in next to each other as specified in the drawings.
Get in Touch
To discuss how the 1.8m AcoustiGuard® SR1 Acoustic Fencing can meet the security and noise reduction needs of your project, our expert team is ready to help. We can provide detailed quotes, technical specifications, and advice tailored to your requirements. Call our sales team on 01283 512 111 or email sales@firstfence.co.uk.
Specifications & Downloads
| Kit Type | Assembled [Fully Assembled for Lifting] |
| Height | 1800mm |
| Width | 2420mm |
| Material | Timber [Incised and Pressure Treated] |
| Colour | Tanalised UC4 [Pale Green] |
| Weight | 188.15kg |
| Fixing Method | Dig In |
| Steel Post Specification | 127 x 76 x 2700mm |
| Timber Compliant To | BS 8417 [Timber Treatment] |
| Manufacturing Standards | BS EN 1793 Road Traffic Noise Reducing Devices |
| Manufacturing Standards | Tested and Complies to BS EN 1794-1 and BS EN 1794-2 |
| Manufacturing Standards | Design in accordance with specification for Highways Works Clause 2504. Treatment to Sector Scheme 4 |
| Density | Average Density 71kg/m² [Excluding Posts] |
What's Included
| Name | Quantity |
|---|---|
| EchoAbsorb Straight Boards [150mm x 22mm x 1.7m] | 16 |
| Gravel Board [150mm x 75mm x 2.4m] | 1 |
| Capping Rail [2.4m x 175mm x 50mm > 38mm] | 1 |
| Horizontal Rail [75mm x 75mm x 2.4m] | 3 |
| Cover Strips [1.7m x 75mm x 22mm] | 27 |
| AcoustiGuard® Steel RSJ Post 127 x 76 x 2700mm | 1 |
| 1.8m 75 x 22 > 13 HCD Absorbent Wedge | 1 |
| ProFence® 1.8m x 2.5m 358 Mesh Sheet [Cut to Size] | 1 |
| M8 x 100mm Flange Hex Head Wood screw | 4 |
| Lifting Eyes | 2 |
Specifications & Downloads
| Kit Type | Assembled [Fully Assembled for Lifting] |
| Height | 1800mm |
| Width | 2420mm |
| Material | Timber [Incised and Pressure Treated] |
| Colour | Tanalised UC4 [Pale Green] |
| Weight | 188.15kg |
| Fixing Method | Dig In |
| Steel Post Specification | 127 x 76 x 2700mm |
| Timber Compliant To | BS 8417 [Timber Treatment] |
| Manufacturing Standards | BS EN 1793 Road Traffic Noise Reducing Devices |
| Manufacturing Standards | Tested and Complies to BS EN 1794-1 and BS EN 1794-2 |
| Manufacturing Standards | Design in accordance with specification for Highways Works Clause 2504. Treatment to Sector Scheme 4 |
| Density | Average Density 71kg/m² [Excluding Posts] |
What's Included
| Name | Quantity |
|---|---|
| EchoAbsorb Straight Boards [150mm x 22mm x 1.7m] | 16 |
| Gravel Board [150mm x 75mm x 2.4m] | 1 |
| Capping Rail [2.4m x 175mm x 50mm > 38mm] | 1 |
| Horizontal Rail [75mm x 75mm x 2.4m] | 3 |
| Cover Strips [1.7m x 75mm x 22mm] | 27 |
| AcoustiGuard® Steel RSJ Post 127 x 76 x 2700mm | 1 |
| 1.8m 75 x 22 > 13 HCD Absorbent Wedge | 1 |
| ProFence® 1.8m x 2.5m 358 Mesh Sheet [Cut to Size] | 1 |
| M8 x 100mm Flange Hex Head Wood screw | 4 |
| Lifting Eyes | 2 |
Product Description
1.8m High AcoustiGuard® SR1 (A1) LPS 1175 Acoustic Fencing Kit
The 1.8m High AcoustiGuard® SR1 (A1) LPS 1175 Acoustic Fencing Kit represents the pinnacle of dual-purpose perimeter solutions, expertly engineered to provide both certified security and exceptional acoustic performance. This system is designed for environments where mitigating noise pollution is as critical as preventing unauthorised access. Ideal for deployment along busy roadways, railway lines, commercial and industrial estates, and sensitive residential areas, this fencing kit offers a robust and effective barrier. With a finished height of 1.8 metres out of the ground, it provides a significant physical and auditory shield without being overly imposing, making it a versatile choice for a wide range of applications. Each kit is supplied with components manufactured to the highest standards, including pressure-treated UC4 timber and galvanised steel, ensuring longevity and performance in even the most demanding conditions. The kit comes fully assembled and ready for lifting, streamlining the installation process for professional contractors.
Understanding LPS 1175 SR1 (A1)
When selecting a security fencing system, third-party certification provides undeniable proof of its effectiveness. The AcoustiGuard® system is rigorously tested and certified to LPS 1175 SR1 (A1), a prestigious security standard governed by the Loss Prevention Certification Board (LPCB). LPS 1175 is the benchmark specification for physical security products, evaluating their resistance to forced entry. The SR1 (A1) rating signifies that the fencing system can withstand a determined attack lasting for at least 60 seconds from an intruder using a range of small, easily concealed hand tools, such as screwdrivers, pliers, and knives that an opportunistic attacker might carry. The test is designed to simulate a realistic, low-tech intrusion attempt. Achieving this certification means that the AcoustiGuard® fence provides a critical delay, frustrating potential intruders and giving on-site security or law enforcement valuable time to respond. The security of this system is enhanced by the integration of a 358 mesh fence panel within its core structure, creating a formidable barrier that is incredibly difficult to cut or climb. This certified level of protection offers invaluable peace of mind, assuring you that your perimeter is not just a demarcation line but a proven deterrent against unauthorised access.
Understanding BS EN 1793 and BS EN 1794 Compliance
Beyond its security credentials, the AcoustiGuard® system is engineered as a high-performance acoustic barrier, tested and compliant with multiple European standards. Its design conforms to the specifications for Highways Works Clause 2504 and is manufactured to Sector Scheme 4 for the treatment of timber, making it suitable for major infrastructure projects. The system is tested and complies with BS EN 1793 Road Traffic Noise Reducing Devices, BS EN 1794-1 and BS EN 1794-2. This standard is the definitive measure of a barrier's ability to control noise. The AcoustiGuard® fence has been tested to determine its performance in sound insulation, which measures the amount of sound energy blocked from passing directly through the fence. The system’s high mass, with an average panel density of 71kg/m² (excluding posts), is critical to its success. Its layered construction, featuring heavy-duty timber boards, specialised EchoAbsorb insulation, and a rigid mesh core, works in unison to reflect and dissipate sound waves, significantly reducing noise levels on the other side. These standards also ensure the barrier is safe, durable, and able to withstand environmental stresses such as wind loading. The robust construction, anchored by substantial steel posts set in concrete foundations, guarantees the fence's structural integrity over its lifespan. This comprehensive compliance ensures the AcoustiGuard® system is a reliable, long-lasting investment for noise and security control.
To complement this fencing system, we also offer compatible 1.8m High AcoustiGuard® SR1 (A1) LPS 1175 Acoustic Gates, designed to provide seamless integration and consistent performance across your perimeter.
Features & Benefits
The 1.8m AcoustiGuard® SR1 fencing kit is packed with features designed for performance, durability, and ease of installation.
Dual-Certified Protection: A single, integrated solution providing both LPCB-certified SR1 (A1) security and BS EN 1793-compliant noise reduction. This eliminates the need for separate security and acoustic barriers, saving space and cost.
Premium Materials: All timber components are Class UC4 Tanalised, meaning they have been pressure-treated for permanent ground contact. This provides the highest level of protection against rot and insect infestation, conforming to BS 8417 standards and ensuring a long service life. All steel components are galvanised to ISO 1461 or zinc plated to ISO 4042/ISO 2081 for superior corrosion resistance.
Advanced Panel Construction: The 2.42m wide panels are expertly constructed in a multi-layered design for maximum performance. This includes 150x22mm EchoAbsorb Straight Boards, a core of 475x75mm EchoAbsorb Insulation protected by a nylon water-resistant sheet, and an integrated 358 security mesh panel. The panel is finished with a 125x38mm Capping Rail and a 150x75mm Gravel Board, which ensures a 100mm ground clearance to protect the timber.
Robust Framework: The system is supported by heavy-duty 127 x 76mm steel RSJ posts, supplied at a length of 2700mm for this 1.8m high fence. These are designed for a "Dig In" fixing method, requiring a minimum C20/25 concrete foundation with a 900mm dig-in depth for unparalleled stability.
Engineered for Performance: The total kit weight is 188.15 kg, contributing to its high average density of 71kg/m² for excellent sound insulation. The acoustic panels are secured to the posts with M10x100mm flange hex head wood screws to prevent lifting.

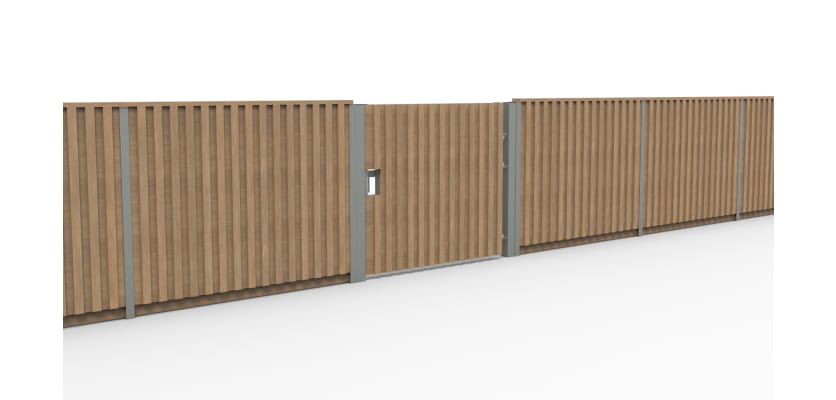

Installation Versatility: The system is designed for creating continuous runs and can accommodate corners of any angle. For SR1 compliance at corners, the posts must be dug in next to each other as specified in the drawings.
