0.6m High 60° Crank Wall-Mounted 868 Mesh Fencing Kit - Calculator

0.6m High 60° Crank Wall-Mounted 868 Mesh Fencing Kit - Calculator

Elevate your perimeter security with the First Fence 0.6m High 60 Degree Crank Wall-Mounted 868 Mesh Fencing Kit. This innovative solution forms an angled, outward-projecting barrier on top of your existing walls, serving as a powerful physical deterrent that significantly complicates unauthorised climbing and boosts overall security.

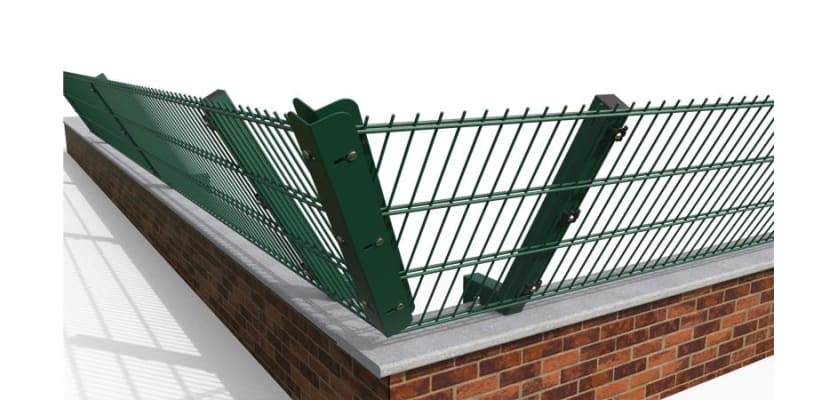

60° Crank Wall-Mounted Mesh Fencing: A Smart Security Upgrade

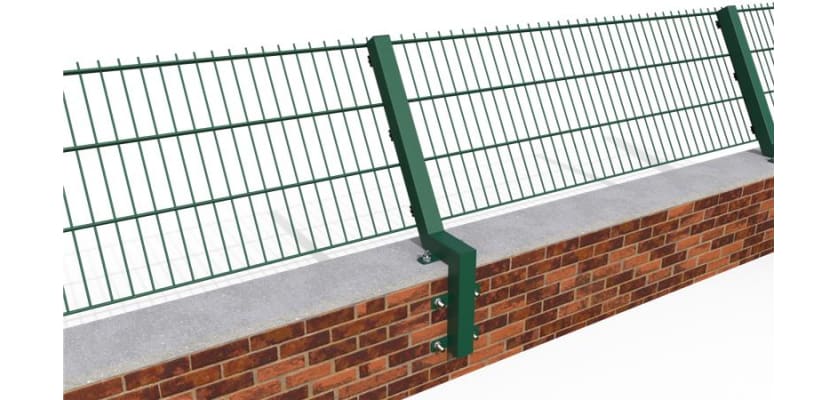

This durable, easy-to-install solution creates a stable and secure fence along your wall, featuring a pronounced outward angle. This design significantly extends your barrier, adding a critical layer of anti-climb protection by complicating an intruder's approach.

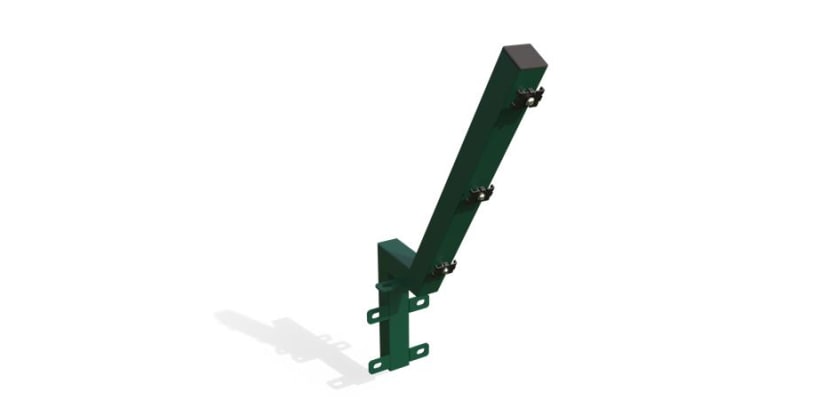

The kit is engineered to provide a 630mm high, 2506mm wide mesh fence panel with post centres at 2530mm (±15mm). Its distinctive 60-degree cranked post design provides a total post length of 900mm, with the crank projecting 140mm outwards. This creates a challenging and uncomfortable obstacle, significantly deterring climbing attempts. Each component is made from quality materials to ensure durability and long-lasting performance in a wide range of environments.

Build Your Own Kit

Our convenient calculator makes planning easy; just enter the length of your fence in metres, and it will tell you how many fencing kits you'll need, based on 2.5-metre bays. This product features a sleek polyester powder-coated finish in smart green or black as standard, but a wide range of other RAL colours is available upon request if you’d like to match an existing colour scheme.

Each of the fencing kits contains a 60° crank intermediate post, 630m x 2.5m wide 868 mesh fence panel, x3 mesh fencing fixing clips, x3 M8 x 40mm mesh security bolts and x1 black ribbed insert.

You have the option to add additional posts to your order.  If there are corners, then add these; if you need to terminate the system, add an intermediate post (this can also be used as an end post).  These extra posts come with fixings and a ribbed insert.

Applications

The 0.6m High 60 Degree Crank Wall-Mounted 868 Mesh Fencing Kit is an ideal addition for fortifying any wall where superior anti-climb security is essential. It integrates with 868 Twin Mesh fencing, known for its rigid and secure design. When combined with the pronounced outward crank, it becomes an even more intimidating barrier against intrusion. The angled design creates a difficult-to-scale obstacle, reinforcing the perimeter and actively deterring theft, vandalism, and unauthorised entry. This makes it particularly valuable for high-security locations such as industrial facilities, commercial properties, utility sites, or any area demanding robust boundary protection against climbing.

Installation Considerations

Fixing the posts to your wall is critical for optimal security. The type of fixing you use will depend on your wall material (brick, concrete, etc.), the anticipated load, and the environment (indoor vs. outdoor). Each cranked post typically requires a maximum of four M16 fixings for secure attachment. Common fixings suitable for this application include:

Sleeve Anchors/Through Bolts: Ideal for heavy-duty applications, expanding to grip into concrete or solid brick.

Shield Anchors (Rawl Bolts): Excellent for solid masonry walls, expanding to provide a strong hold.

Chemical Anchors (Resin Fixings): Offers high load capacity and is best for irregular, hollow, or older brickwork.

First Fence offers several M16 fixings: M16 x 220mm Ground Anchor Bolt, M16 x 150mm Ground Anchor Bolt, M16 x 125mm Ground Anchor Bolt, and M16 x 190mm Resin Stud Ground Anchors. Please note that the fixings you select will be dependent on the wall material, it is recommended that you carry out an assessment before you begin work.

Mesh panels from the intermediate fencing kit will need to be cut on site to suit the desired installation position at the corner.

Installation Tips

Before installation, thoroughly inspect the wall's condition; crumbling mortar or hollow bricks necessitate specialised attention. Ensure precise vertical alignment of all posts by using a spirit level. For outdoor applications, always select corrosion-resistant hardware, such as galvanised or stainless steel, to guarantee lasting durability.
