Stainless Steel (Grade 304) Door Guard 1100mm Height x 800mm Width
Product Description
Stainless Steel (Grade 304) Door Guard: 1100mm Height x 800mm Width
The Bollard Centre’s range of Door Guards has been designed to protect walls and windows from swinging doors, preventing damage to both doors and handles. Each guard features an integrated rubber bump stop on the mid tapping rail, absorbing impact and eliminating steel-on-steel contact.
At a substantial 800mm width, these Door Guards are often used in pairs for full coverage and are available in both dig-in and bolt-down options to suit a wide range of installation requirements.

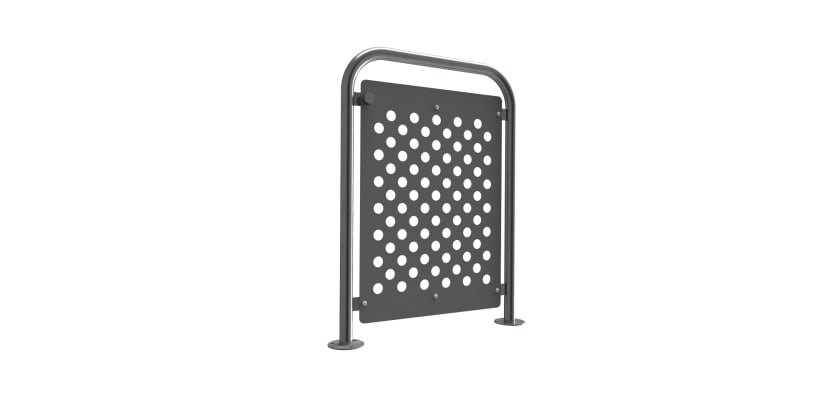

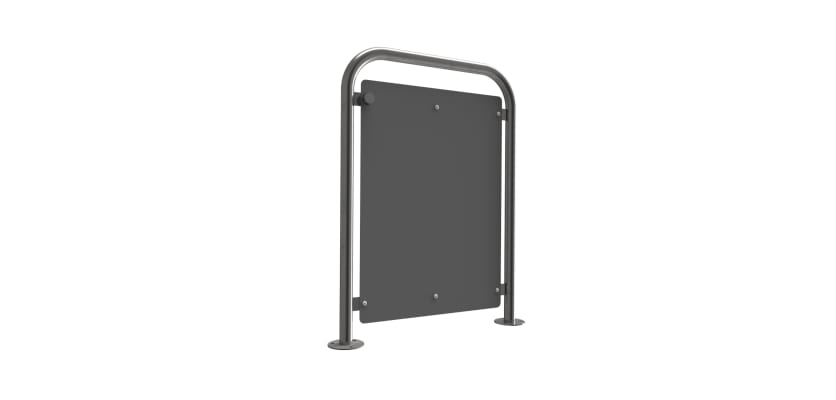

A selection of steel infills is also available, allowing you to customise your guard with a solid or perforated finish for a stylish and professional appearance. The rubber bump stop can be positioned in different locations along the rail to match door protrusion and maximise protection.
Key Features
- Manufactured from 2mm Grade 304 Stainless Steel
- 800mm width for substantial coverage
- 50mm x 5mm tapping rail with removable rubber bump stop
- Weld-on tang bars (for dig-in installation) or flange plate (for bolt-down)
- Optional solid or perforated steel infills for a premium finish
Installation Instructions
Dig-in
Ensure the ground is free from obstacles and utilities. Excavate two holes at least 300mm deep and wider than the tang bars. Position the door guard and backfill with grade C20/25 concrete, ensuring it is level and plumb.
Bolt-down
Drill six holes that align with the flange plate (12mm x 100mm). Depending on your ground type, use M12 ground anchors or M12 stud and resin fixings, then secure the door guard with washers and nuts.
Alternatively, let us handle the installation for you. Simply reach out to our installation team by email at installaion@firstfence.co.uk to get a quote.
