2.0m x 3.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Single Gate Leaf Kit
| Height | 2000mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3420mm |
| Box Sections of Posts | [Hinge Post: 150mm x 150mm] [Catch Post: 120mm x 120mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |

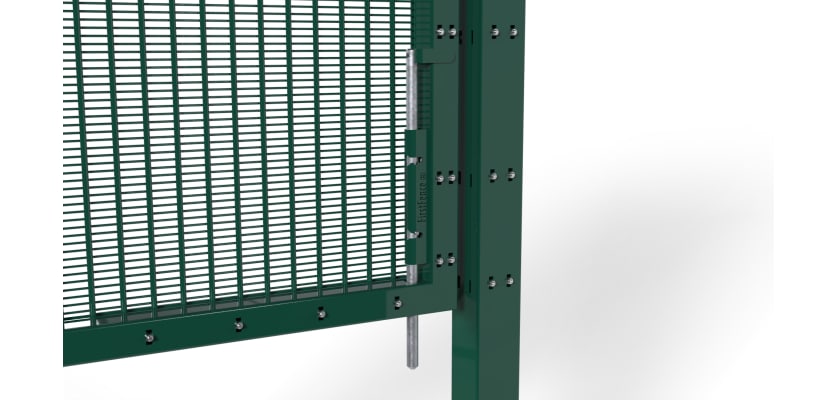

| Locking Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
2.0m x 3.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Single Gate Leaf Kit
This ProFence® 2X single leaf gate provides a wide 3.0m opening, offering a certified LPS 1175 B3 security solution for access points that need to accommodate small vehicles and large equipment.
The confidence provided by the LPS 1175 B3 certification is invaluable for security managers of high-value sites. This gate is ideal for securing the service entrances to data centres, allowing access for the delivery of server racks and cooling equipment on pallets, while ensuring the building's shell remains hardened against physical intrusion at all times. The three-minute delay it provides is more than enough time for an internal security team to respond effectively.
Beyond technology sites, this gate is also a perfect fit for securing the perimeter of agricultural facilities storing high-value GPS-guided machinery. The 3.0m width allows for easy passage of smaller tractors and equipment, while the certified strength provides a powerful defence against organised rural crime. For a fully certified boundary, combine this gate with the matching 2.0m high ProFence® 2X security fence kit.
Its Red Book listing is a guarantee of its performance, having been subjected to and passed, a rigorous forced entry test designed to simulate a determined and well-equipped intruder.
Features and Benefits

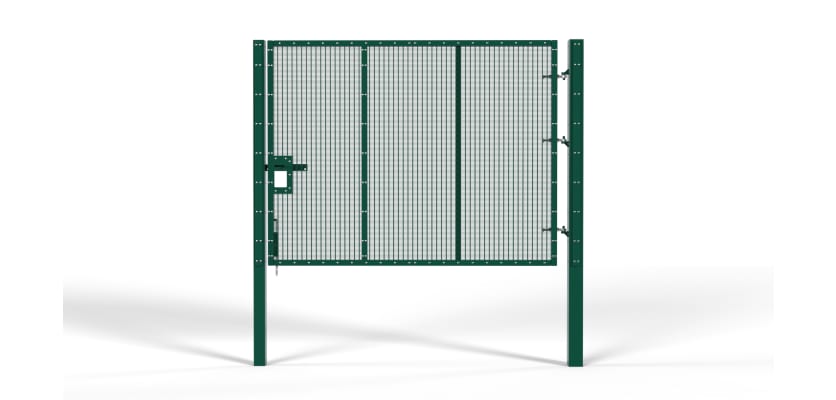

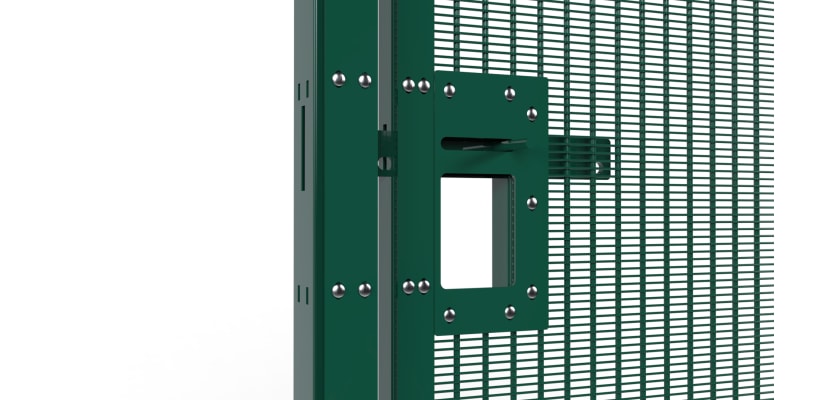

This 2.0m x 3.0m Wide ProFence® 2X SR2 (B3) Single Gate Leaf Kit is supplied with one 3.0m wide gate leaf, a robust hinge post, a reinforced catch post, and three SR2-rated gate eyes. The gate is firmly secured when closed by a heavy-duty slide latch that engages securely with the catch post.

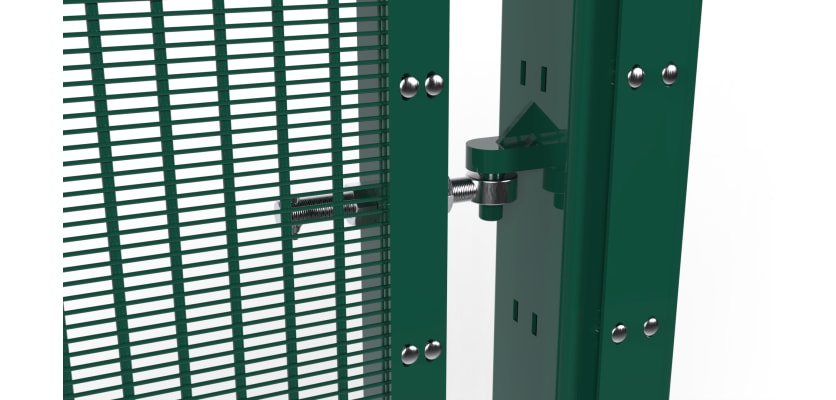

The gate's entire structure is made from quality steel, which is hot-dip galvanised and then polyester powder-coated. This dual-finish process not only prevents rust but also provides a UV-stable, abrasion-resistant surface for a greatly extended operational life. The gate leaf features the signature MeshPro® 10, a design renowned for its resistance to both cutting and climbing attempts. All hinge fixings are high-security shear nuts, rendering them tamper-proof.
Installation made easy
The gate system is available in dig-in or bolt-down configurations to match your specific ground conditions. Bolt-down posts are supplied with the necessary ground anchor bolts for a secure surface fixing. For dig-in posts, we advise using C20 or C25 grade concrete and suggest two to three bags of Post Mix per post for a robust and lasting foundation.
Get in touch
To find out more about our high-security solutions, call our expert team on 01283 512111 or use the instant online chat.
