Height | 3000mm [Installed] |
Access Width | 2000mm |
Total Width | 2510mm |
Box Sections of Posts | [Hinge Posts: 120mm x 120mm] |
Primary Gate Leaf | Right Hand Hung |
Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
Material | Hot Dip Galvanised Steel |
PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
Name | Quantity |
---|---|
Slider Gate Leaf | 1 |
Catch Gate Leaf | 1 |
Gate Leaf Mesh & Clamp Bar Kit | 2 |
Hinge Post & Clamp Bar Kit | 2 |
SR2 Hinges | 6 |
Locking Drop Bolt | 2 |
Ground Anchors [Bolt Down Only] | 8 |
Ribbed Inserts [To Suit Hinge Posts] | 2 |
At a maximum height of 3.0 metres, the ProFence® 2X double gate offers the highest level of physical deterrence in our range.
The combination of a 3.0m height and the LPS 1175 B3 certification creates a truly formidable barrier. This level of security is essential for the most sensitive areas within data centres or sites of national critical importance, such as emergency access points or secure enclosures for external generators. This 2.0m gate ensures that even rarely used personnel entrances offer no exploitable weakness.
This configuration is also an ideal choice for securing rooftop access points on secure buildings or controlling entry to sensitive internal zones within a warehouse or production facility. The maximum height prevents scaling, and the B3 rating resists determined breach attempts. For a complete, uniform high-security enclosure, this gate is designed to be used with the 3.0m high ProFence® 2X fence system.
Its Red Book listing confirms it has successfully resisted a simulated three-minute attack using Toolkit B.

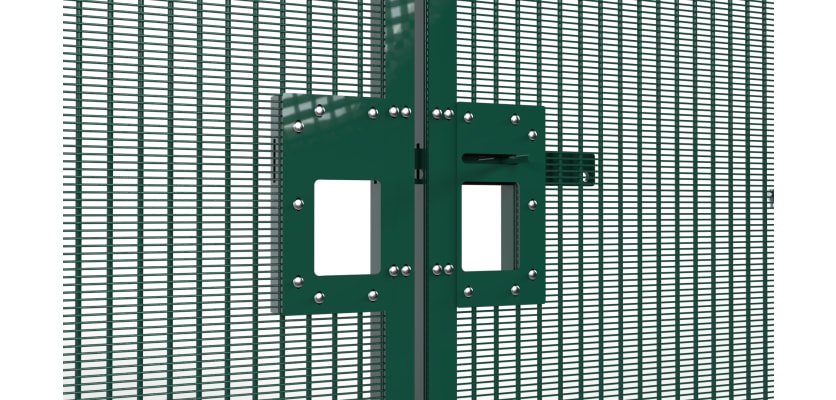

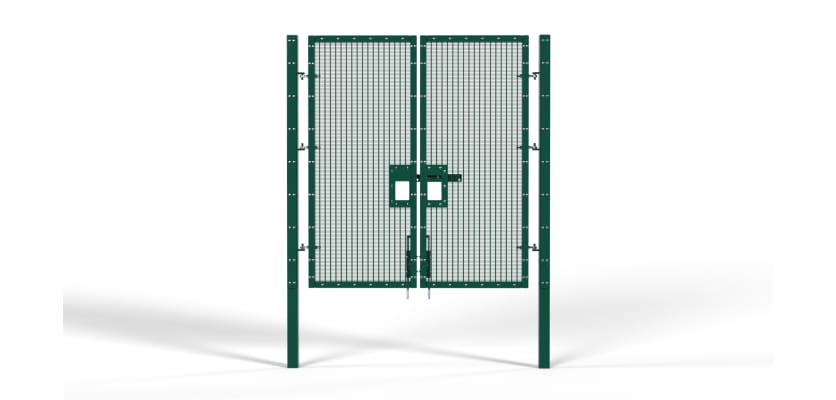

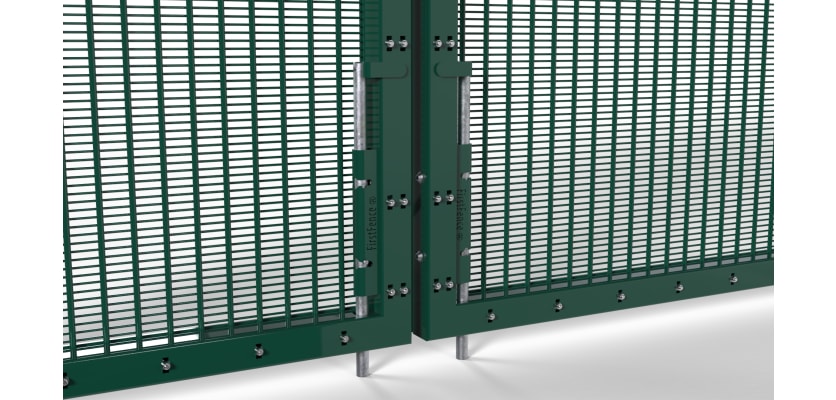

This 3.0m x 2.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit contains two 1.0m gate leaves, two extra-length hinge posts, and six SR2-rated gate eyes. The gate's locking system is designed for this increased height and load, featuring a central slide latch and two heavy-duty drop bolts that anchor the tall leaves securely to the ground.

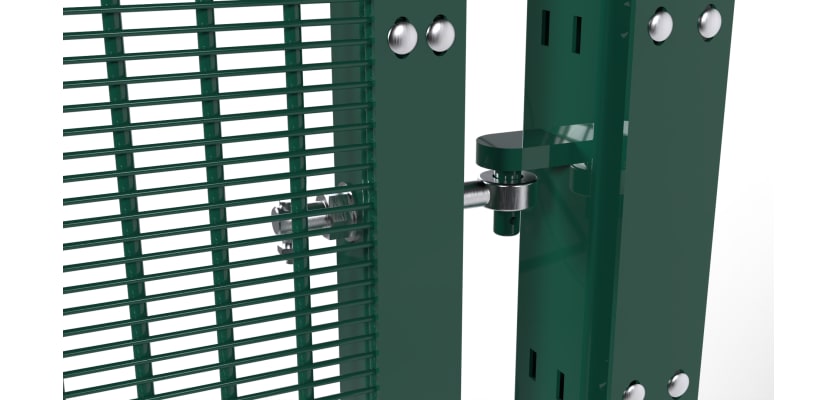

The gate's robust steel frame is shielded from the elements by both a hot-dip galvanised coating and a tough polyester powder finish. The gate leaves are infilled with MeshPro® 10, which makes scaling the 3.0m height extremely difficult. The six gate eyes are attached using permanent, tamper-proof shear nuts.
This gate is available in both bolt-down and dig-in formats. The bolt-down version is supplied with ground anchor bolts. For the 3.0m dig-in posts, a substantial foundation is essential; we advise using at least four bags of Post Mix for each post with C20 or C25 grade concrete.
