Height | 2000mm [Installed] |
Access Width | 7000mm |
Total Width | 7570mm |
Box Sections of Posts | [Hinge Posts: 150mm x 150mm] |
Primary Gate Leaf | Right Hand Hung |
Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
Material | Hot Dip Galvanised Steel |
PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
Name | Quantity |
---|---|
Slider Gate Leaf | 1 |
Catch Gate Leaf | 1 |
Gate Leaf Mesh & Clamp Bar Kit | 2 |
Hinge Post & Clamp Bar Kit | 2 |
SR2 Hinges | 6 |
Locking Drop Bolt | 2 |
Ground Anchors [Bolt Down Only] | 8 |
Ribbed Inserts [To Suit Hinge Posts] | 2 |
When securing a wide vehicular access point without compromising on security, the ProFence® 2X SR2 (B3) gate is the ultimate choice.
The LPS 1175 B3 rating moves beyond deterring casual trespass and provides a certified defence against determined criminals. This level of protection is vital for sites of national critical importance, such as power stations or transport hubs. A 7.0m gate provides ample clearance for articulated lorries and specialist vehicles, ensuring that operational efficiency is maintained while the gate provides a powerful, tested barrier against hostile threats.
This specification is also highly relevant for securing the construction phase of sensitive government projects, such as new hospitals or research facilities. The 7.0m width allows for the easy movement of construction machinery and modular buildings, while the B3 rating protects the site from theft and vandalism. A seamless boundary is achieved by pairing the gate with our ProFence® 2X fence system.
This system carries the prestigious LPS 1175 certification, having demonstrated its ability to defeat a three-minute, professional attack using the advanced tools of Toolkit B. As a Red Book listed product, it provides a trusted and verified solution for protecting your most valuable assets and infrastructure.

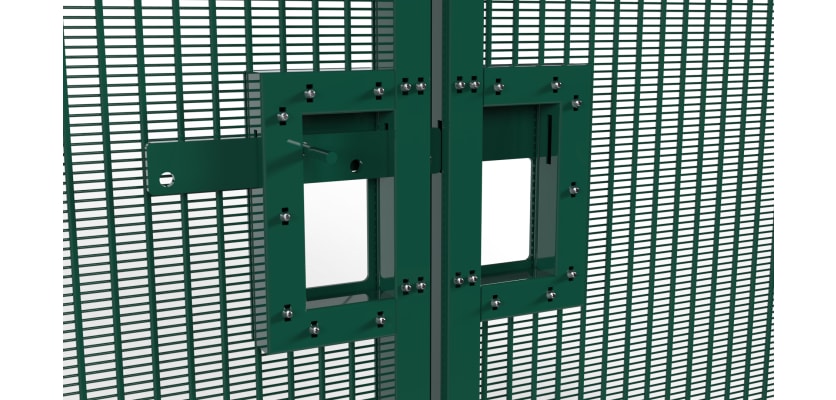

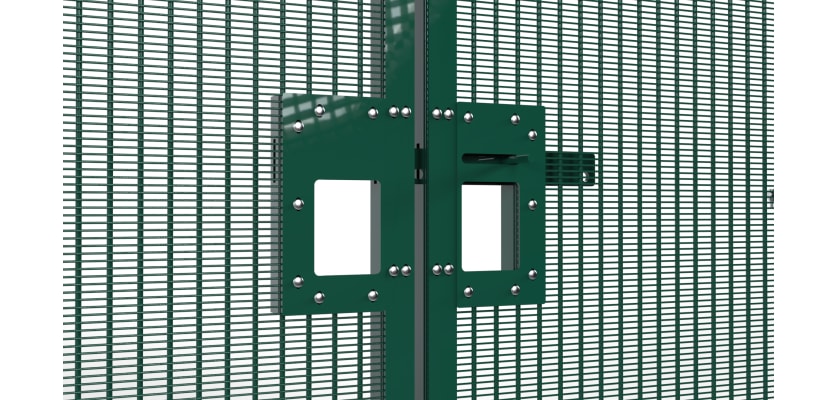

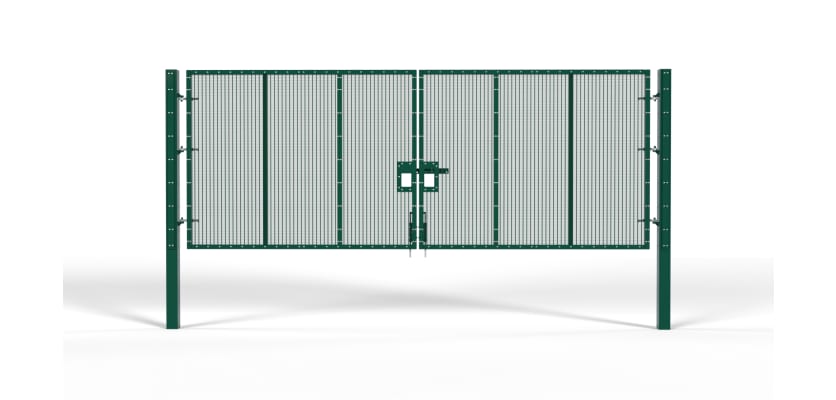

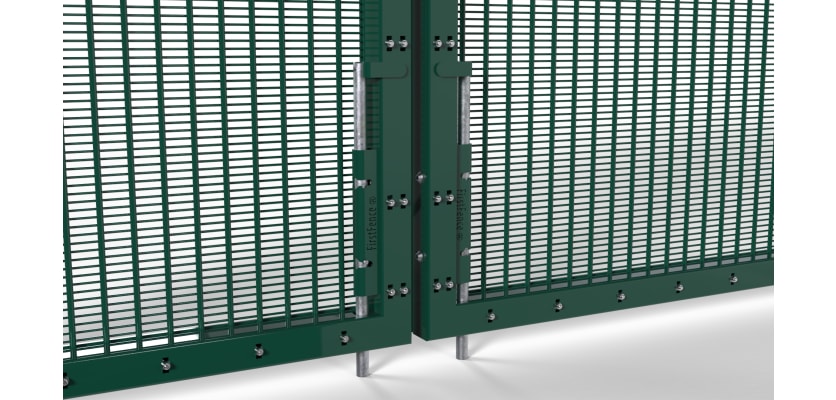

This comprehensive 2.0m x 7.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit contains two 3.5m leaves, two hinge posts, and the required SR2-rated fixtures. The gate's locking system is designed for maximum resistance, featuring a central slide latch for a heavy-duty padlock and two lockable drop bolts that anchor the gate securely at its base.
The gate's structure is made from high-quality steel that has been hot-dip galvanised and polyester powder coated for superior protection against rust and degradation. This ensures a long operational life in any outdoor setting. The rigid MeshPro® 10 infill is a key security feature, offering an anti-climb and anti-cut barrier that doesn't obstruct visibility. To prevent tampering, all six hinges are permanently secured with shear nuts.
Installation is straightforward with options for either dig-in posts for soft ground or bolt-down posts for concrete surfaces. All ground anchor bolts are supplied with the bolt-down kits. For dig-in applications, a strong foundation is key; we recommend four bags of Post Mix per post, using C20 or C25 concrete.
